LT600JXH1 02 – CONSOLE & CONTROLS

LT600JXH1 02 – CONSOLE & CONTROLS

Written by

in

LT600JXH1 02 – CONSOLE & CONTROLS

Products

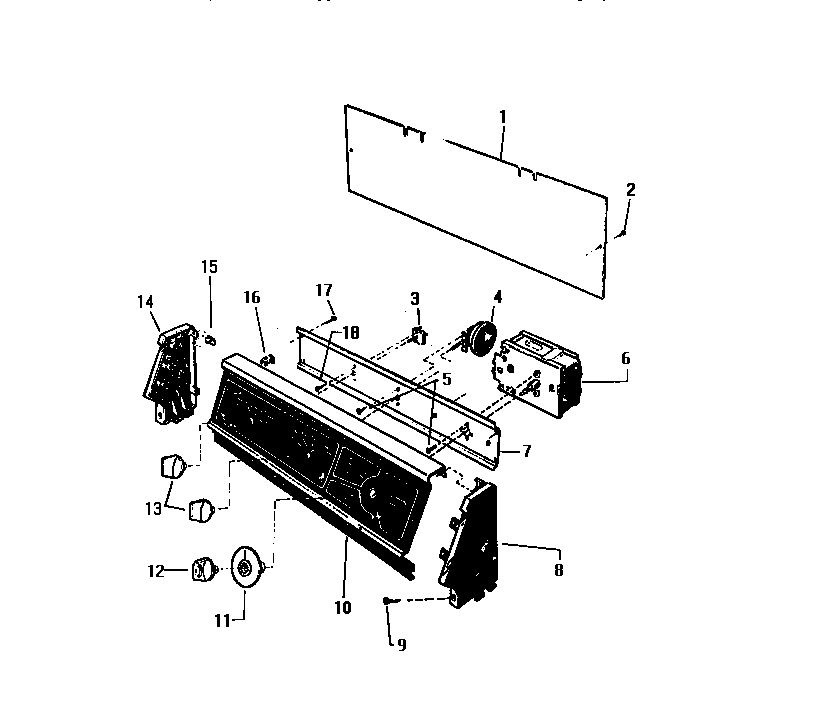

PositionProduct
1WCI Q616741
2WCI Q405802
3SWITCH, TEMPERATURE
4WCI Q165195
5SCREW (4)
6WCI Q617861
7WCI Q616711
8WCI Q616732
9WCI Q504533
10WCI Q634101
11WCI Q621221
12WCI Q621212
13KNOB, SWITCH, SELECTOR
14WCI Q616731
15SPEEDNUT (8)
16WCI Q504801
17SCREW (4)
18SCREW (2)
