LT600JXV1 02 – CONSOLE & CONTROLS – Aparts

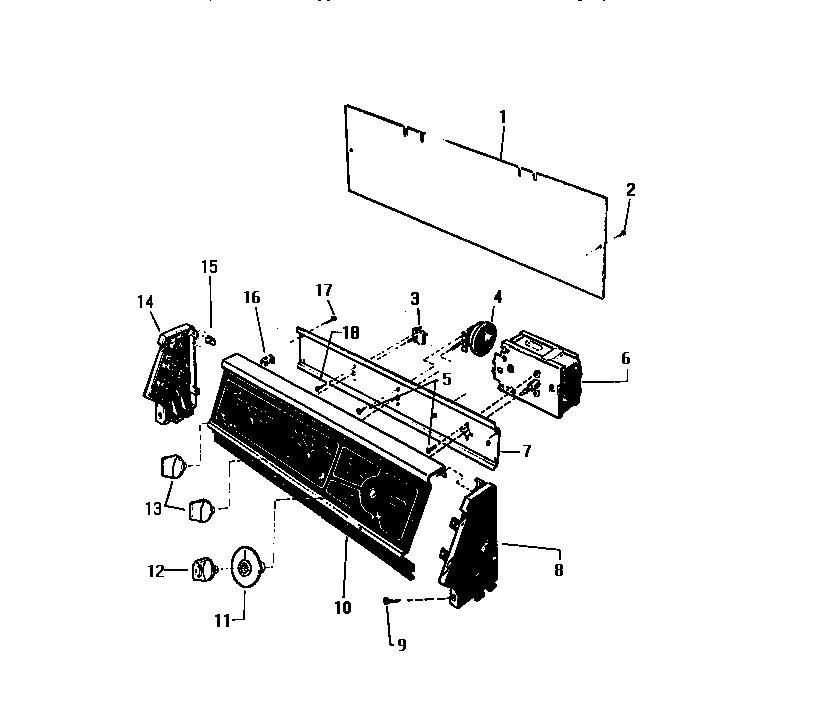

LT600JXV1 02 – CONSOLE & CONTROLS

Products

Position	Product
1	WCI Q616741
2	WCI Q405802
3	SWITCH, TEMPERATURE
4	WCI Q165195
5	SCREW (4)
6	WCI Q617861
7	WCI Q616711
8	WCI Q616732
9	WCI Q504533
10	WCI Q634101
11	WCI Q621221
12	WCI Q621212
13	KNOB, SWITCH, SELECTOR
14	WCI Q616731
15	SPEEDNUT (8)
16	WCI Q504801
17	SCREW (4)
18	SCREW (2)
