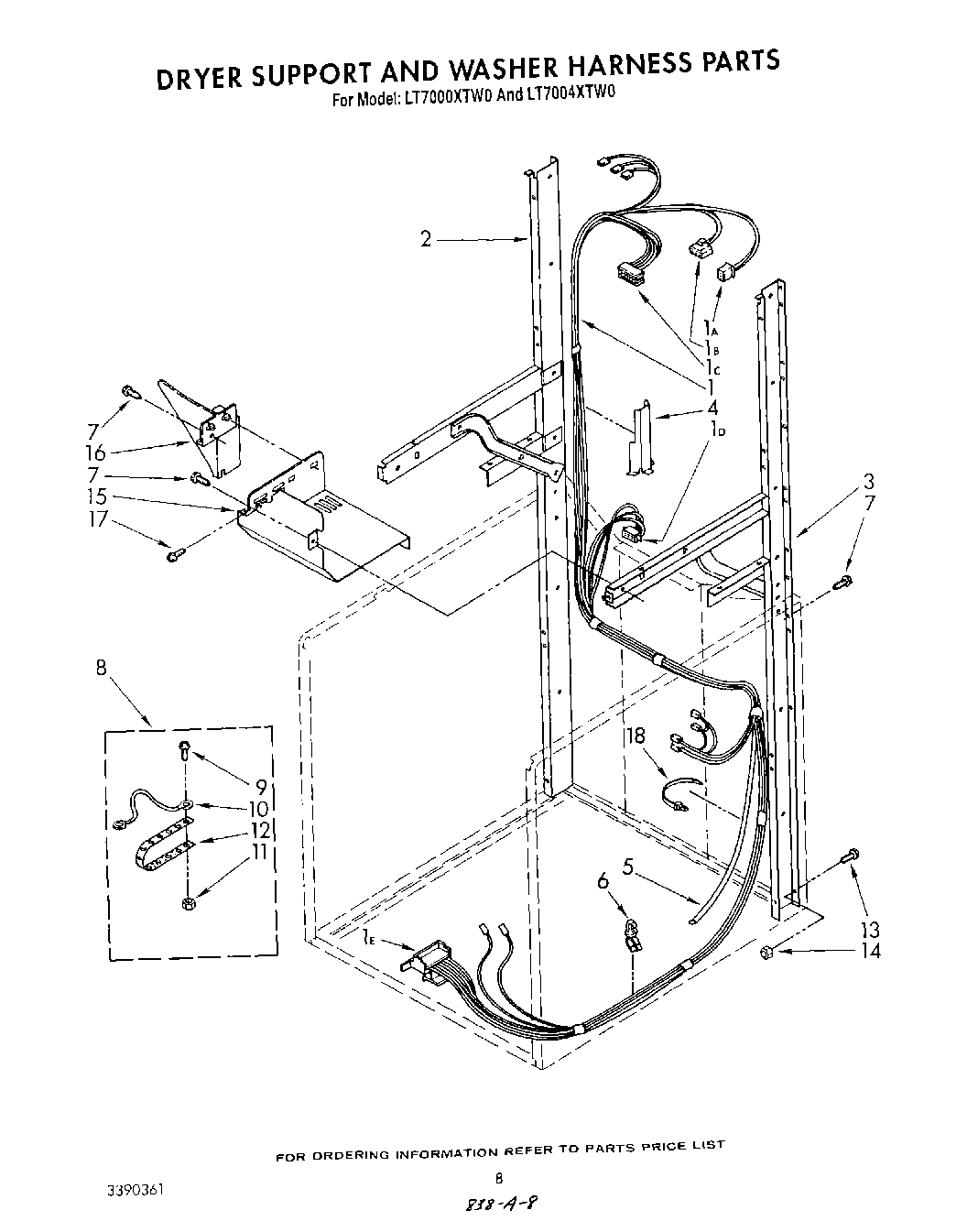

LT7000XTF0 06 – DRYER SUPPORT AND WASHER HARNESS

Products

Position	Product
1B	Block, Disconnect
1D	Receptacle, 3 Way
1A	3350130 Whirlpool Connector
1	Harness – Washer
1C	W10876590 Whirlpool Connector
1E	WP62505 Whirlpool Connector
2	3388851 Whirlpool Support
3	3388850 Whirlpool Support
4	3390609 Whirlpool Shield
5	W10834213 Whirlpool Hose
6	Clip, Harness
8	KIT, GROUNDING
9	Screw, Ground (10-24 x 1)
10	WPL 685449
11	W10080180 Whirlpool Nut
12	Strap, Ground
13	Screw, 5/16-18 x 1/2 (2)
14	90984 Whirlpool Nut
15	W11108181 Whirlpool Shield Assembly
16	Shield, Thermostat
17	SCREW
18	Tie, Cable
