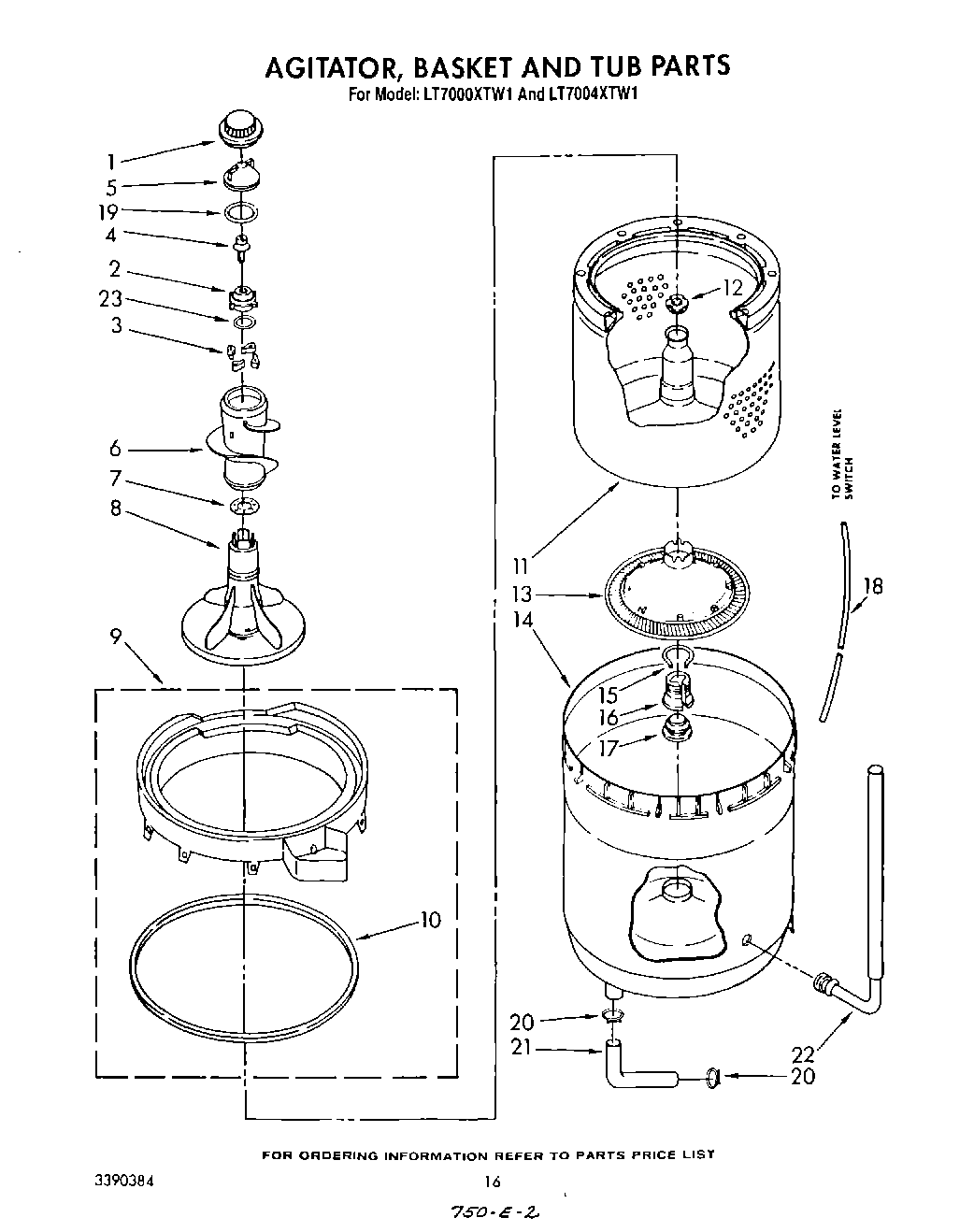

LT7000XTF1 11 – AGITATOR, BASKET AND TUB

LT7000XTF1 11 – AGITATOR, BASKET AND TUB

Written by

in

LT7000XTF1 11 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2285751 Whirlpool Washer Agitator Cam and 4 Dogs Kit
380040 Whirlpool Washer Agitator Dog Kit
4WP358237 Whirlpool Agitator Bolt
5285550 Whirlpool Cap
6W11676449 Whirlpool Agitator Mover
7285620 Whirlpool Washer
8WP3349578 Whirlpool Agitator
9W10880720 Whirlpool Tub Ring
10WP3976308 Whirlpool Tub Seal
11Basket
12WP21366 Whirlpool Spanner Nut
13285868 Whirlpool Washer Filter Plug Kit
14Tub
15Lock, Filter
16WP389140 Whirlpool Drive Block or Bell
17W10814296 Whirlpool Washer Center Post Seal Gasket
18W10834213 Whirlpool Hose
19WPW10072840 Whirlpool Seal Assembly
20WP371502 Whirlpool Clamp
21285871 Whirlpool Hose and Clamp
22Hose, Bleach
23Seal, Agitator
