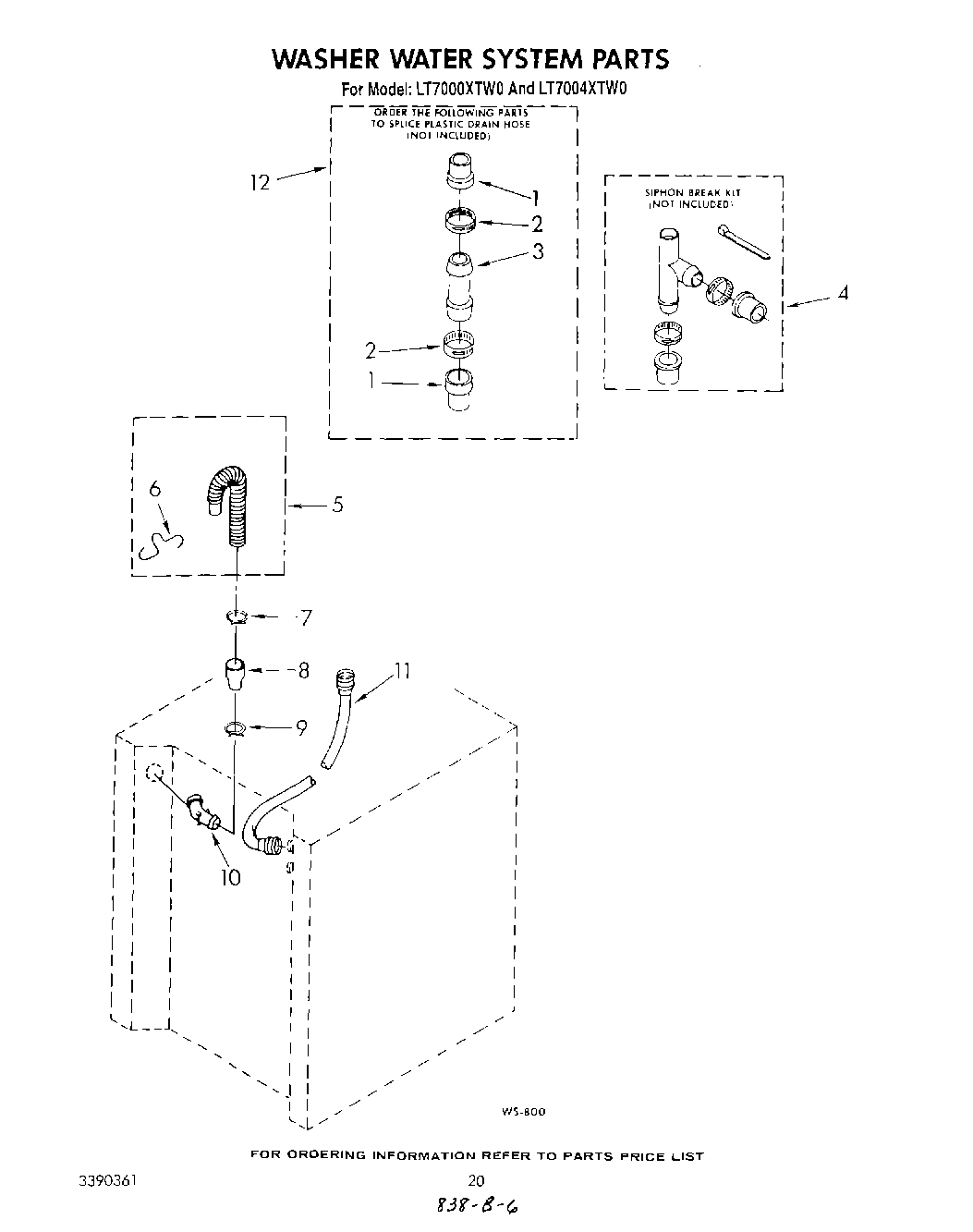

LT7000XTG0 14 – WASHER WATER SYSTEM

Products

Position	Product
1	285321 Whirlpool Sleeve
3	WP16272 Whirlpool Hose Coupling
4	285320 Whirlpool Washer Siphon Break Kit
5	285666 Whirlpool Drain Hose 10'
5	285664 Whirlpool Drain Hose
6	WPL 357247
7	WP616099 Whirlpool Clamp
8	WP384496 Whirlpool Hose Coupling
9	WP285655 Whirlpool Hose Clamp
10	W11213338 Whirlpool Connector
11	WP89503 Whirlpool Washer Fill Hose
12	285442 Whirlpool Coupling
