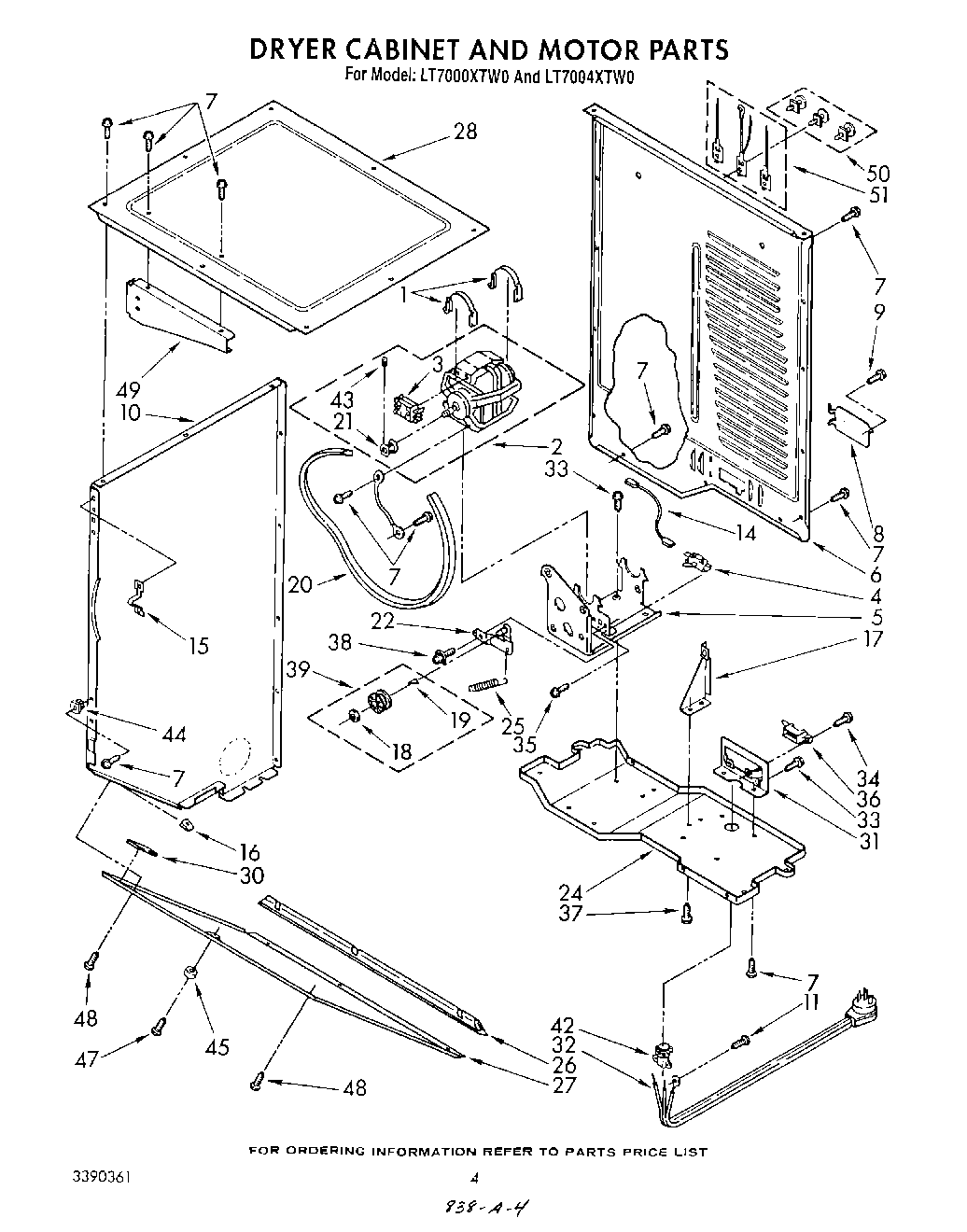

LT7000XTM0 04 – DRYER CABINET AND MOTOR

Products

PositionProduct
1WP660658 Whirlpool Clamp
3279827 Whirlpool Dryer Drive Motor
4WP3391902 Whirlpool Lid Switch
5W11107903 Whirlpool Bracket
6Panel, Rear
8279814 Whirlpool Cover
9SCREW
10Panel, Side (L.H.) (Platinum)
10Panel, Side (L.H.) (Toast)
103389256 Whirlpool Panel
103389264 Whirlpool Panel Assembly
10Panel, Side (L.H.) (Golden Wheat)
10Panel, Side (L.H.) (Golden Harvest)
10Panel, Side (L.H.) (Platinum Panel, Side (R.H.))
10Panel, Side (L.H.) (Toast)
10Panel, Side (Almond (L.H.))
10Panel, Side (Almond (R.H.))
12WPL 3387376
14Wire, Broken Belt Switch
153389231 Whirlpool Clip Front Panel
16WP98234 Whirlpool Nut
173391639 Whirlpool Bracket Assembly
18WPW10121334 Whirlpool Washer
19WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20661570V Whirlpool Dryer Drum Belt
21279811 Whirlpool Dryer Drive Motor
22WPW10547294 Whirlpool Idler Pulley
23WP692771 Whirlpool Nut
24Base, Dryer
25WPW10446781 Whirlpool Spring
263389683 Whirlpool Cover Assembly
27Panel, Transition (Toast)
27Panel, Transition (Platinum)
273389272 Whirlpool Panel
27Panel, Transition (Almond)
27Panel, Transition (Golden Harvest)
28Top, Dryer
303389682 Whirlpool Spacer
31Bracket, Terminal Block
32PT220L Whirlpool Dryer Power Cord
32DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 Amp
35WP3395530 Whirlpool Screw
36279320 Whirlpool Dryer Rear Terminal Block Kit
37WP3390631 Whirlpool Screw
38WP3389420 Whirlpool Screw
39279640 Whirlpool Dryer Idler Pulley Kit
42687000 Whirlpool Connector
43Screw, Set
44WP692400 Whirlpool Nut
45WPL 3389435
45WPL 3389434
45WPL 3389433
45WP3389431 Whirlpool Bumper Assembly
45Bumper, Lid Stop (Almond)
47WP693304 Whirlpool Screw
48WP308685 Whirlpool Microwave Screw
493390722 Whirlpool Shield Assembly
50279393 Whirlpool Terminal Block Screw and Nut Kit
51279318 Whirlpool Terminal
