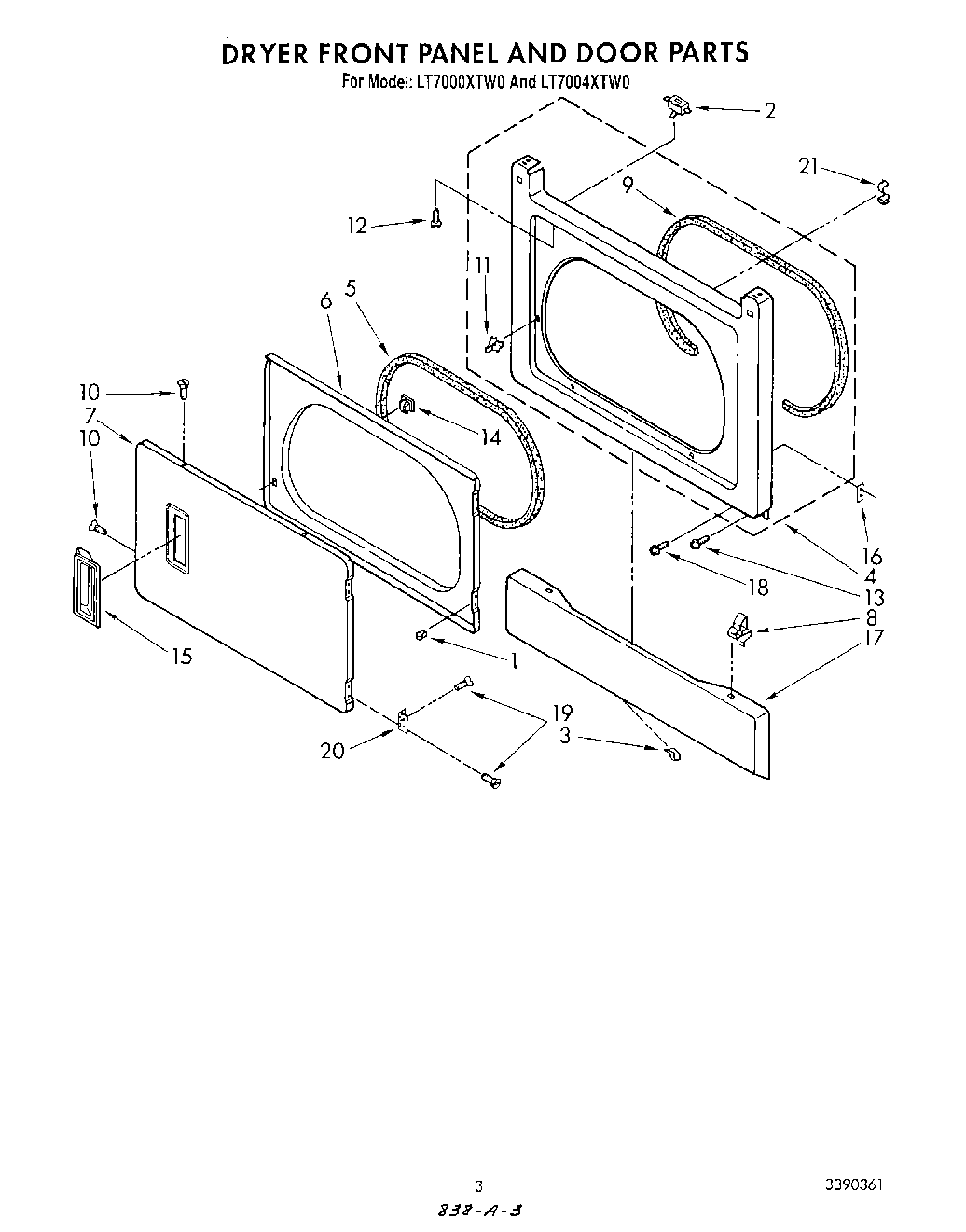

LT7000XTN0 03 – DRYER FRONT PANEL AND DOOR

LT7000XTN0 03 – DRYER FRONT PANEL AND DOOR

Written by

in

LT7000XTN0 03 – DRYER FRONT PANEL AND DOOR

Products

PositionProduct
1Nut, “U“ (4)
2WP3391902 Whirlpool Lid Switch
3WP98234 Whirlpool Nut
4Panel, Front (Toast)
4Panel, Front (Platinum)
4Panel, Front (Almond)
4Panel, Front (Golden Harvest)
4Panel, Front (White)
5WP3390735 Whirlpool Door Seal
6Door, Rear
7W11663440 Whirlpool Door
7Door, Front (Almond)
7Door, Front (Toast)
7Door, Front (Platinum)
7Door, Front (Go
8WP3388229 Whirlpool Dryer Spring Clip
9WP3387242 Whirlpool Seal
10Screw
12WP3395530 Whirlpool Screw
13SCREW
14279570 Whirlpool Dryer Door Latch Kit
15WPL 3389526
15WPL 3389525
15WPL 3389524
15WPL 3389523
153389522 Whirlpool Handle
16WP3390902 Whirlpool Clip
17Panel, Toe (Golden Wheat)
17Panel, Toe (Platinum)
17Panel, Toe (Almond)
173388958 Whirlpool Panel
17Panel, Toe (Toast)
18WPW10139210 Whirlpool Screw
19WP488627 Whirlpool Refrigerator Screw
20W11175815 Whirlpool Hinge
21WP90016 Whirlpool Clip
