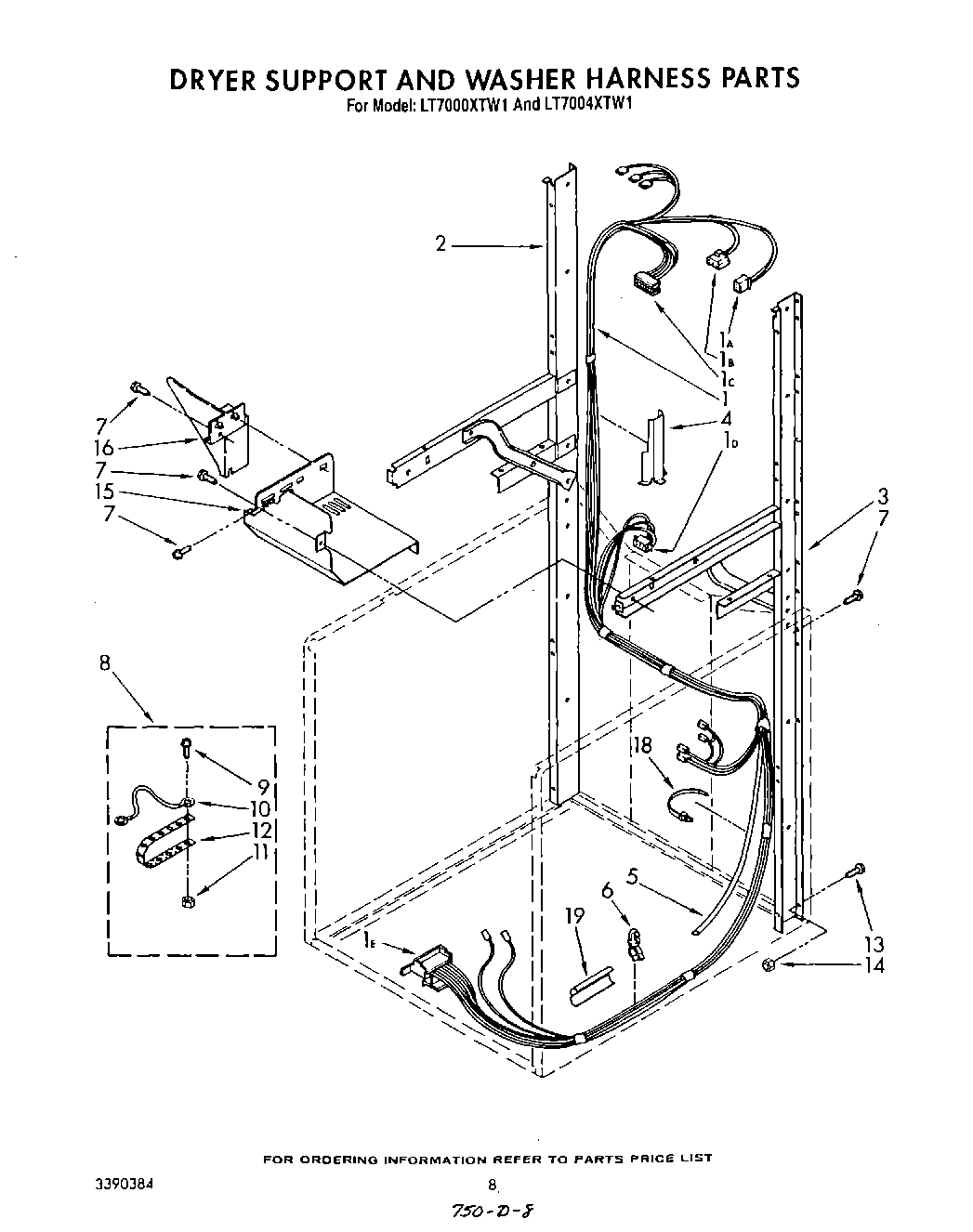

LT7000XTN1 06 – DRYER SUPPORT AND WASHER HARNESSadmin2025-04-26T13:02:00+00:00LT7000XTN1 06 – DRYER SUPPORT AND WASHER HARNESS
Products
| Position | Product |
|---|
| 1 | Harness - Washer |
| 1 | 3350130 Whirlpool Connector |
| 1 | Receptacle, 3 Way |
| 1 | WP62505 Whirlpool Connector |
| 1 | W10876590 Whirlpool Connector |
| 1 | Block, Disconnect |
| 2 | 3388851 Whirlpool Support |
| 3 | 3388850 Whirlpool Support |
| 4 | 3390609 Whirlpool Shield |
| 5 | W10834213 Whirlpool Hose |
| 6 | Clip, Harness |
| 7 | SCREW |
| 8 | KIT, GROUNDING |
| 9 | Screw, Ground (10-24 x 1) |
| 10 | WPL 685449 |
| 11 | W10080180 Whirlpool Nut |
| 12 | Strap, Ground |
| 13 | Screw, 5/16-18 x 1/2 (2) |
| 14 | 90984 Whirlpool Nut |
| 15 | W11108181 Whirlpool Shield Assembly |
| 16 | Shield, Thermostat |
| 18 | Tie, Cable |
| 19 | Protector, Harness |
