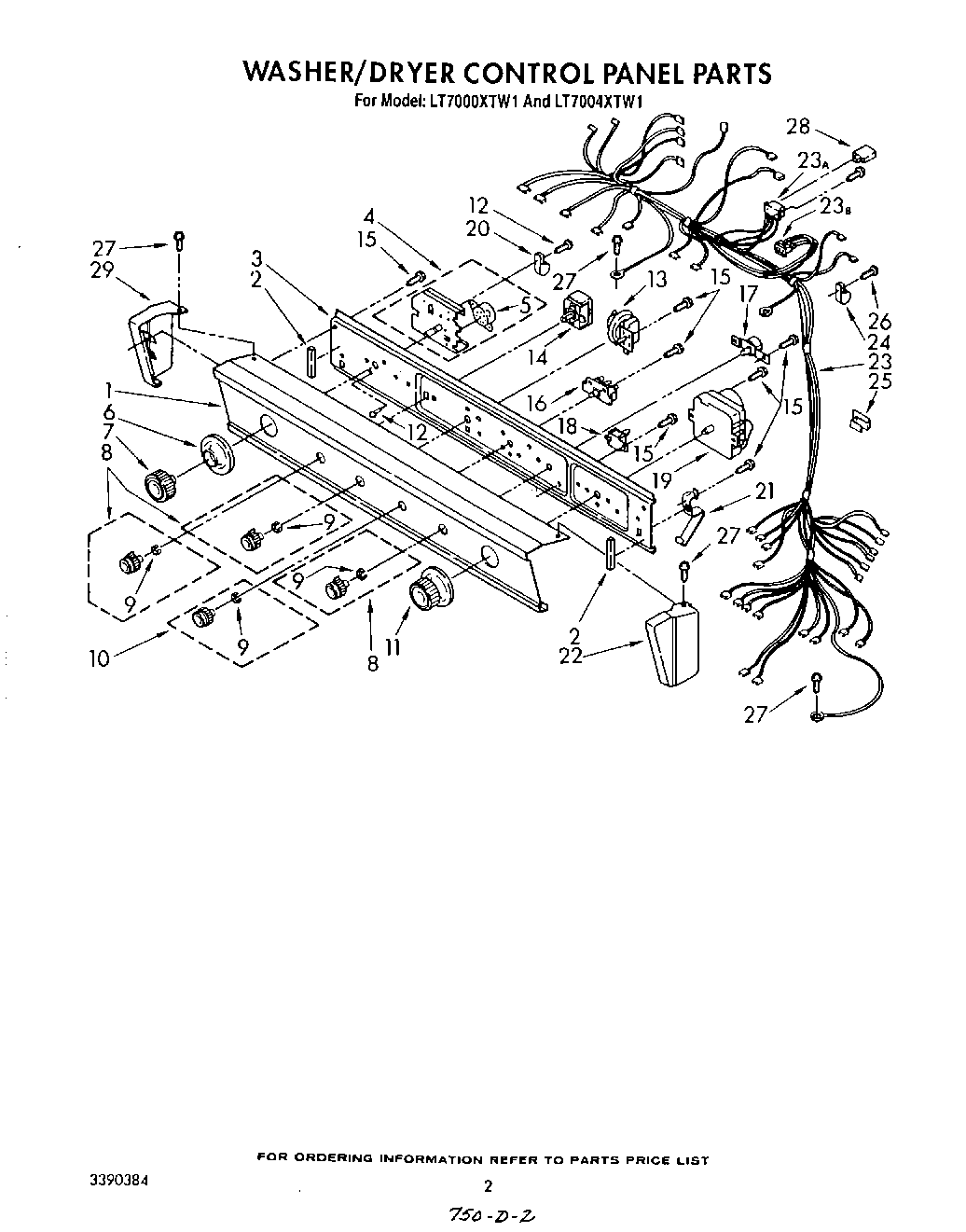

LT7000XTW1 02 – WASHER/DRYER CONTROL PANEL

Products

Position	Product
1	Panel, Control
2	3390688 Whirlpool Bumper Assembly
3	Bracket, Control (Includes Illus. 2)
4	WP3351744 Whirlpool Timer
5	Motor, Timer
6	Skirt, Timer Knob (Washer)
7	Knob, Timer (Washer)
8	Knob, Control (3)
9	WP688805 Whirlpool Spring Clip
10	Button, Push-To-Start
11	Knob, Timer (Dryer)
12	WP356418 Whirlpool Screw
13	Switch, Pressure
14	Switch, Water Temperature
16	Switch, Push-To-Start
17	Switch, Temperature (Variable)
18	WP694419 Whirlpool Buzzer Adjuster
19	Timer, Dryer
20	488946 Whirlpool Air Conditioner Clamp
21	3389453 Whirlpool Hinge Assembly
22	End Cap-Right Hand (Golden Wheat)
22	End Cap-Right Hand (Platinum)
22	End Cap-Right Hand (Almond)
22	End Cap-Right Hand (Toast)
22	End Cap (RH)
23	Connector
23	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
23	Harness – Dryer
24	7111P002-60 Whirlpool Clamp
25	Clip, Harness (2)
26	WP3390631 Whirlpool Screw
27	SCREW
28	Control, Electronic
29	End Cap (LH) (Almond)
29	End Cap (LH)
29	End Cap-Left Hand (Toast)
29	End Cap-Left Hand (Platinum)
29	End Cap-Left Hand (Golden Wheat)
