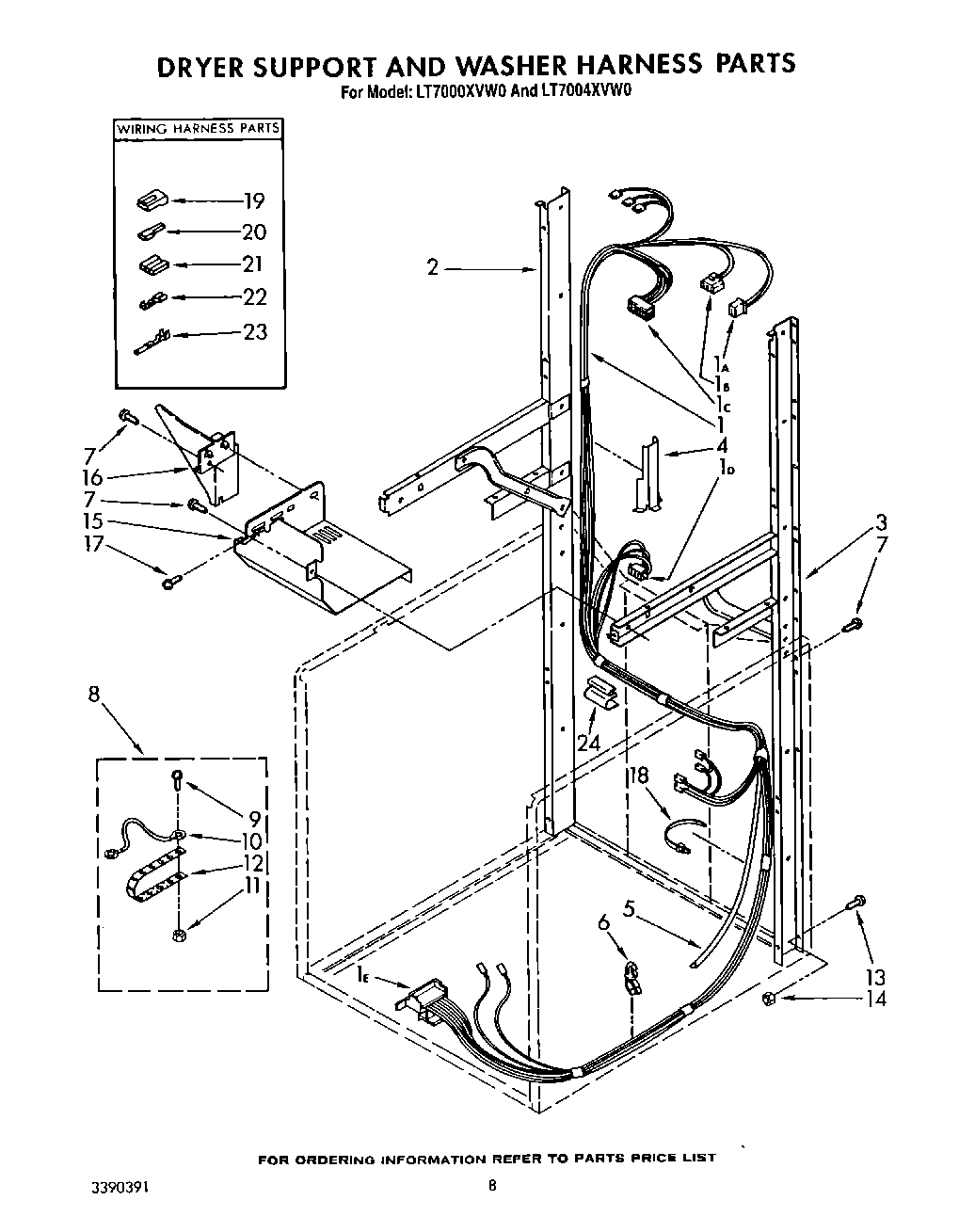

LT7000XVN0 06 – DRYER SUPPORT AND WASHER HARNESS

Products

PositionProduct
1Harness – Washer
13350130 Whirlpool Connector
1Receptacle, 3 Way
1Block, Disconnect
1W10876590 Whirlpool Connector
1WP62505 Whirlpool Connector
23388851 Whirlpool Support
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
8KIT, GROUNDING
9Screw, Ground (10-24 x 1)
10WPL 685449
11W10080180 Whirlpool Nut
12Strap, Ground
13Screw, 5/16-18 x 1/2 (2)
1490984 Whirlpool Nut
15W11108181 Whirlpool Shield Assembly
16Shield, Thermostat
17SCREW
18Tie, Cable
19Insulator, Terminal
20WP285432 Whirlpool Terminal
21Connector Block (Alternate)
22Terminal, Female
23WP596797 Whirlpool Terminal
23WP94614 Whirlpool Terminal
24Protector, Harness
