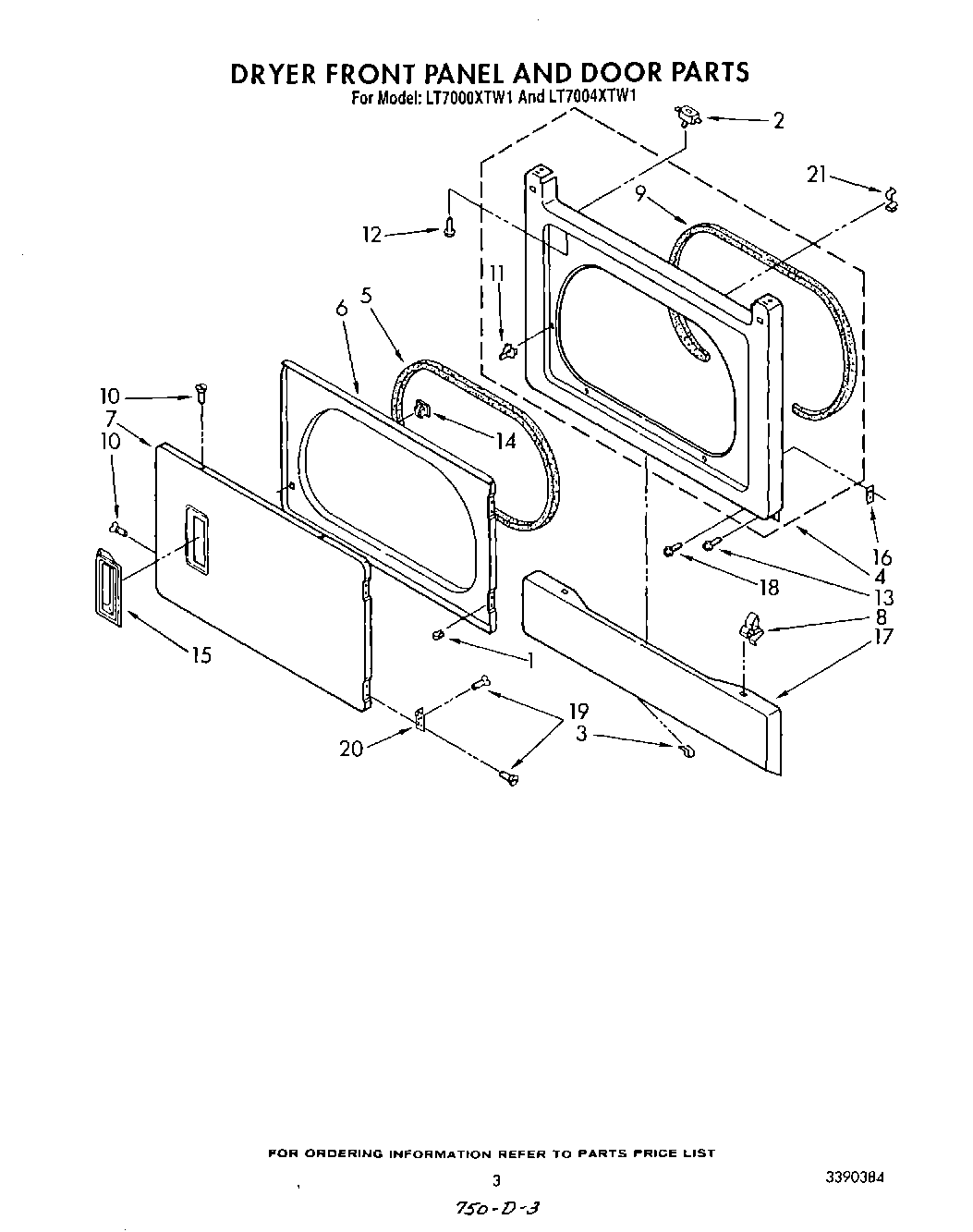

LT7004XTF1 03 – DRYER FRONT PANEL AND DOORadmin2025-04-26T13:01:26+00:00LT7004XTF1 03 – DRYER FRONT PANEL AND DOOR
Products
| Position | Product |
|---|
| 1 | Nut, ``U`` (4) |
| 2 | WP3391902 Whirlpool Lid Switch |
| 3 | WP98234 Whirlpool Nut |
| 4 | Panel, Front (Toast) |
| 4 | Panel, Front (Platinum) |
| 4 | 279718 Whirlpool Panel |
| 4 | Panel, Front (Golden Harvest) |
| 4 | Panel, Front (Almond) |
| 5 | WP3390735 Whirlpool Door Seal |
| 6 | 280083 Whirlpool Rear Door |
| 7 | Door, Front (Go |
| 7 | Door, Front (Platinum) |
| 7 | Door, Front (Almond) |
| 7 | W11663440 Whirlpool Door |
| 7 | Door, Front (Toast) |
| 8 | WP3388229 Whirlpool Dryer Spring Clip |
| 9 | WP3387242 Whirlpool Seal |
| 10 | Screw |
| 12 | WP3395530 Whirlpool Screw |
| 13 | SCREW |
| 14 | 279570 Whirlpool Dryer Door Latch Kit |
| 15 | WPL 3389523 |
| 15 | WPL 3389526 |
| 15 | WPL 3389525 |
| 15 | WPL 3389524 |
| 15 | 3389522 Whirlpool Handle |
| 16 | WP3390902 Whirlpool Clip |
| 17 | Panel, Toe (Golden Wheat) |
| 17 | Panel, Toe (Platinum) |
| 17 | Panel, Toe (Almond) |
| 17 | 3388958 Whirlpool Panel |
| 17 | Panel, Toe (Toast) |
| 18 | WPW10139210 Whirlpool Screw |
| 19 | WP488627 Whirlpool Refrigerator Screw |
| 20 | W11175815 Whirlpool Hinge |
| 21 | WP90016 Whirlpool Clip |
