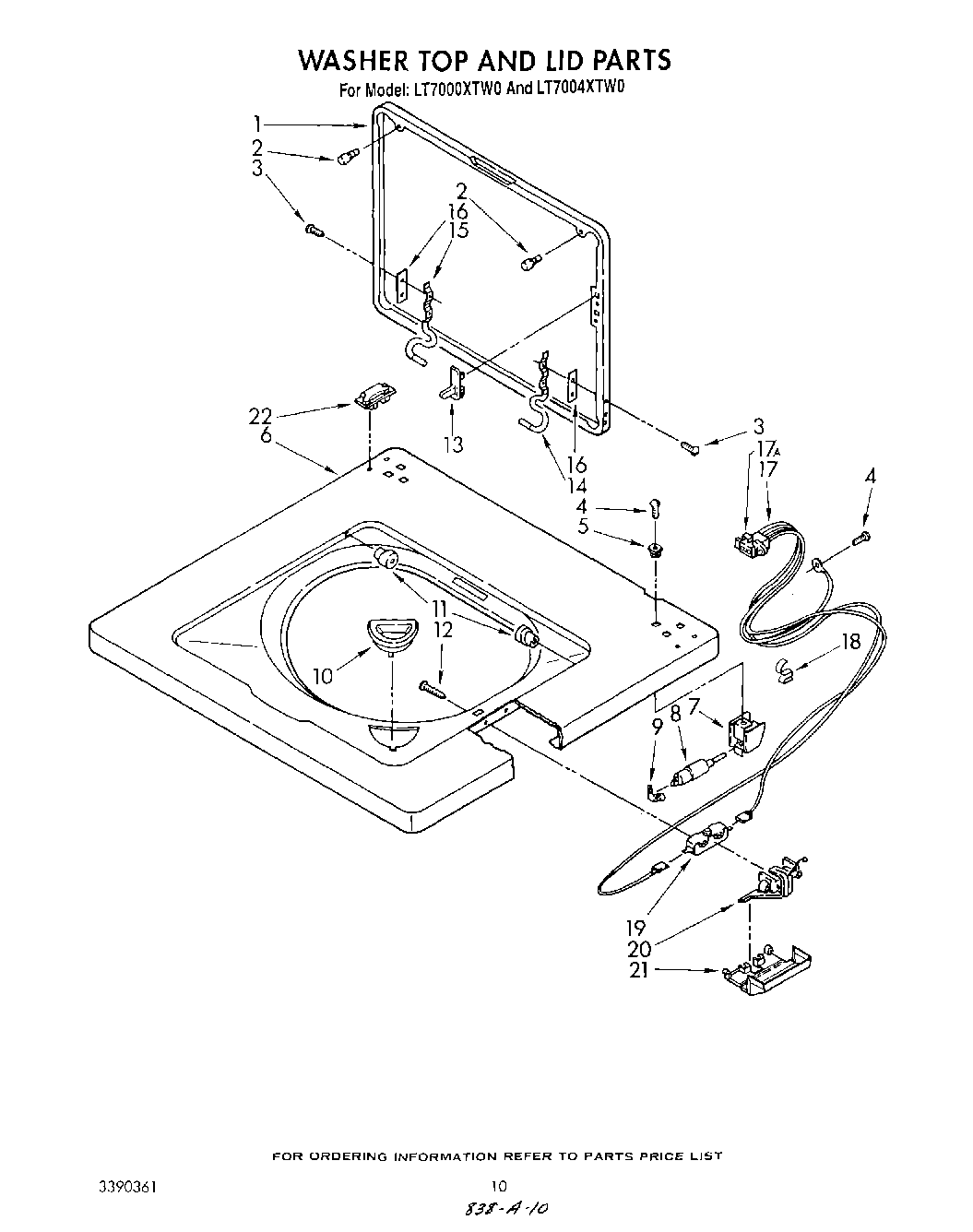

LT7004XTM0 07 – WASHER TOP AND LID

Products

Position	Product
1	Lid (White)
1	Lid (Toast)
1	Lid (Platinum)
1	Lid (Almond)
1	Lid (Golden Harvest)
2	WP9724509 Whirlpool Bumper
3	SCREW
4	SCREW
5	WP692400 Whirlpool Nut
6	Top, Console (Almond)
6	Top, Console (Golden Wheat)
6	Top, Console (Platinum)
6	Top, Console (Toast)
6	3349817 Whirlpool Top Assembly
7	3354020 Whirlpool Bracket
8	WP3350152 Whirlpool Retainer
9	Clip, Retainer
10	WP3362952 Whirlpool Bezel
11	WP21258 Whirlpool Washer Lid Hinge Bearing
12	Screw & Washer, Lid Switch (2)
13	WP358684 Whirlpool Strike Assembly
14	3350101 Whirlpool Hinge
15	3350102 Whirlpool Hinge Assembly
16	WP21097 Whirlpool Pad
17	Harness, Lid Switch
17A	plug, 3-Way (Uses Terminal 94613)
18	WP90016 Whirlpool Clip
19	W10820036 Whirlpool Door Switch Kit
20	Actuator, Lid Switch
21	WP359231 Whirlpool Shield
22	W11116924 Whirlpool Locator
