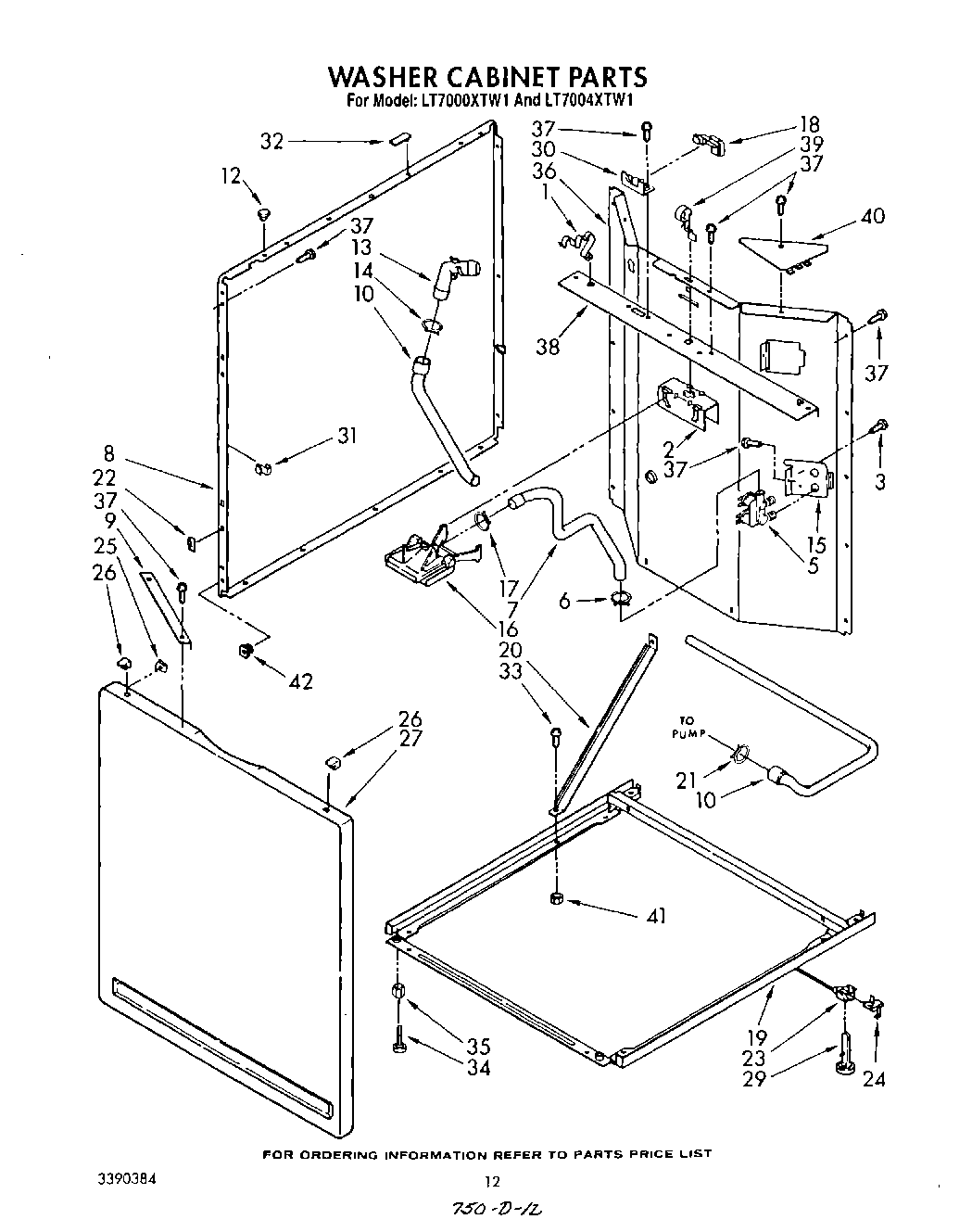

LT7004XTN1 08 – WASHER CABINET

Products

Position	Product
1	3349770 Whirlpool Clip
2	3349767 Whirlpool Bracket Assembly
3	WP3390631 Whirlpool Screw
5	285805 Whirlpool Washer Water Inlet Valve
7	3352236 Whirlpool Hose Assembly
8	Panel, Side (2) (Same Panel Used On Left And Right Side) (Toast)
8	Panel, Side (2) (Same Panel Used On Left And Right Side) (Almond)
8	WP3349455 Whirlpool Panel
8	Panel, Side (2) (Same Panel Used On Left And Right Side) (Platinum)
8	Panel, Side (2) (Same Panel Used On Left And Right Side) (New Gold)
9	3350744 Whirlpool Brace Assembly
10	Hose, Drain
12	WP660975 Whirlpool Button Plug
13	W11213338 Whirlpool Connector
14	WP356138 Whirlpool Hose Clamp
15	3349673 Whirlpool Bracket Assembly
16	WP3360977 Whirlpool Washer Tub Fill Nozzle
17	WP596669 Whirlpool Hose Clamp
18	3350145 Whirlpool Shield Assembly
19	WP3402724 Whirlpool Washer Base
20	3388857 Whirlpool Bracket
21	WP285655 Whirlpool Hose Clamp
22	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
23	WP3349311 Whirlpool Link
24	WP359364 Whirlpool Clip
25	WP98234 Whirlpool Nut
26	WP345670 Whirlpool Lock
27	Panel, Front (Golden Harvest)
27	Panel, Front (Toast)
27	Panel, Front (Platinum)
27	WP3349499 Whirlpool Panel
27	Panel, Front (Almond)
29	WP358594 Whirlpool Leveling Feet
30	3350144 Whirlpool Bracket
31	Pad, Extruder (2)
33	Screw, 5/16-18 x 1/2 (2)
34	WPW10001130 Whirlpool Leveling Leg
35	Nut, 3/8-16
36	8564987 Whirlpool Panel
37	SCREW
38	3349697 Whirlpool Back Rail
39	SPRING-LVR
40	3390608 Whirlpool Shield Assembly
40	WPL 3390611
41	90984 Whirlpool Nut
42	NUT, PUSH IN
