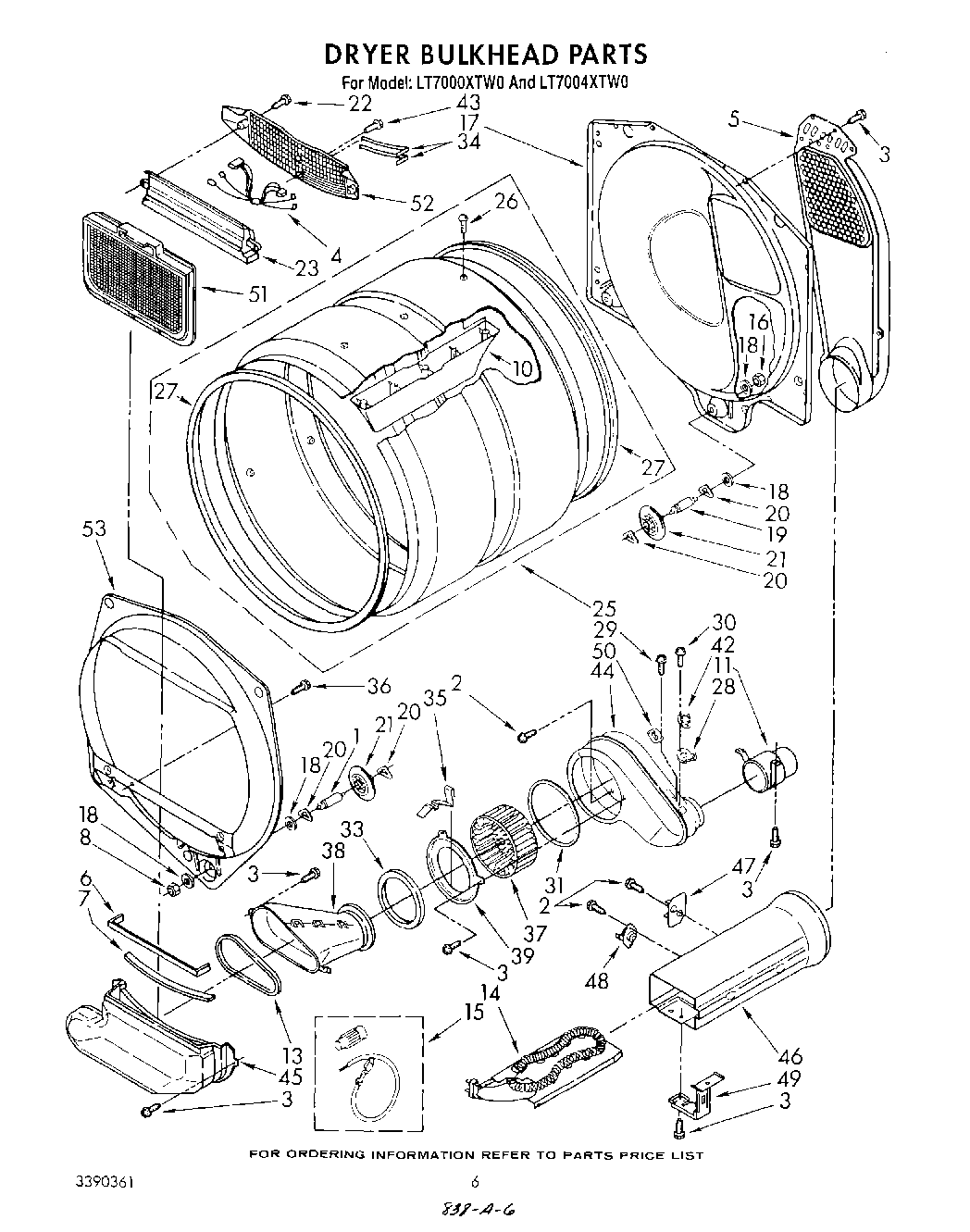

LT7004XTW0 05 – DRYER BULKHEAD

Products

Position	Product
1	SHAFT
2	WP90767 Whirlpool Screw
3	SCREW
4	Harness, Sensor
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
7	WP3391906 Whirlpool Seal
8	WP358160 Whirlpool Nut
10	279982 Whirlpool Drum Baffle
11	279823 Whirlpool Exhaust Pipe
13	WP697770 Whirlpool Blower Cover Plate Seal
14	ELEMENT
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	Nut, 3/8-16 (L.H.)
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP3387230 Whirlpool Screw
23	Housing, Outlet
25	W10518375 Whirlpool Drum Assembly
26	Screw
27	280114 Whirlpool Dryer Drum Seal
28	Heater, Thermostat
29	WPW10139210 Whirlpool Screw
30	WP488729 Whirlpool Refrigerator Door Screw
33	WP8566209 Whirlpool Seal
34	WP3387223 Whirlpool Electrode Assembly
35	3390935 Whirlpool Clip
36	WP308685 Whirlpool Microwave Screw
37	WP697772 Whirlpool Dryer Blower Wheel
38	279704 Whirlpool Duct Assembly
39	279780 Whirlpool Plate Cover
42	WP694674 Whirlpool Cycling Thermostat
44	WP8544363 Whirlpool Housing
45	279700 Whirlpool Duct Lint
46	W10802681 Whirlpool Box Assembly
47	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
48	WP3390291 Whirlpool High Limit Thermostat
49	3389648 Whirlpool Bracket Assembly
50	WP3403607 Whirlpool Thermoprotector
51	WP3389644 Whirlpool Screen Assembly
52	Grille, Outlet
53	WP697557 Whirlpool Bulkhead Assembly
