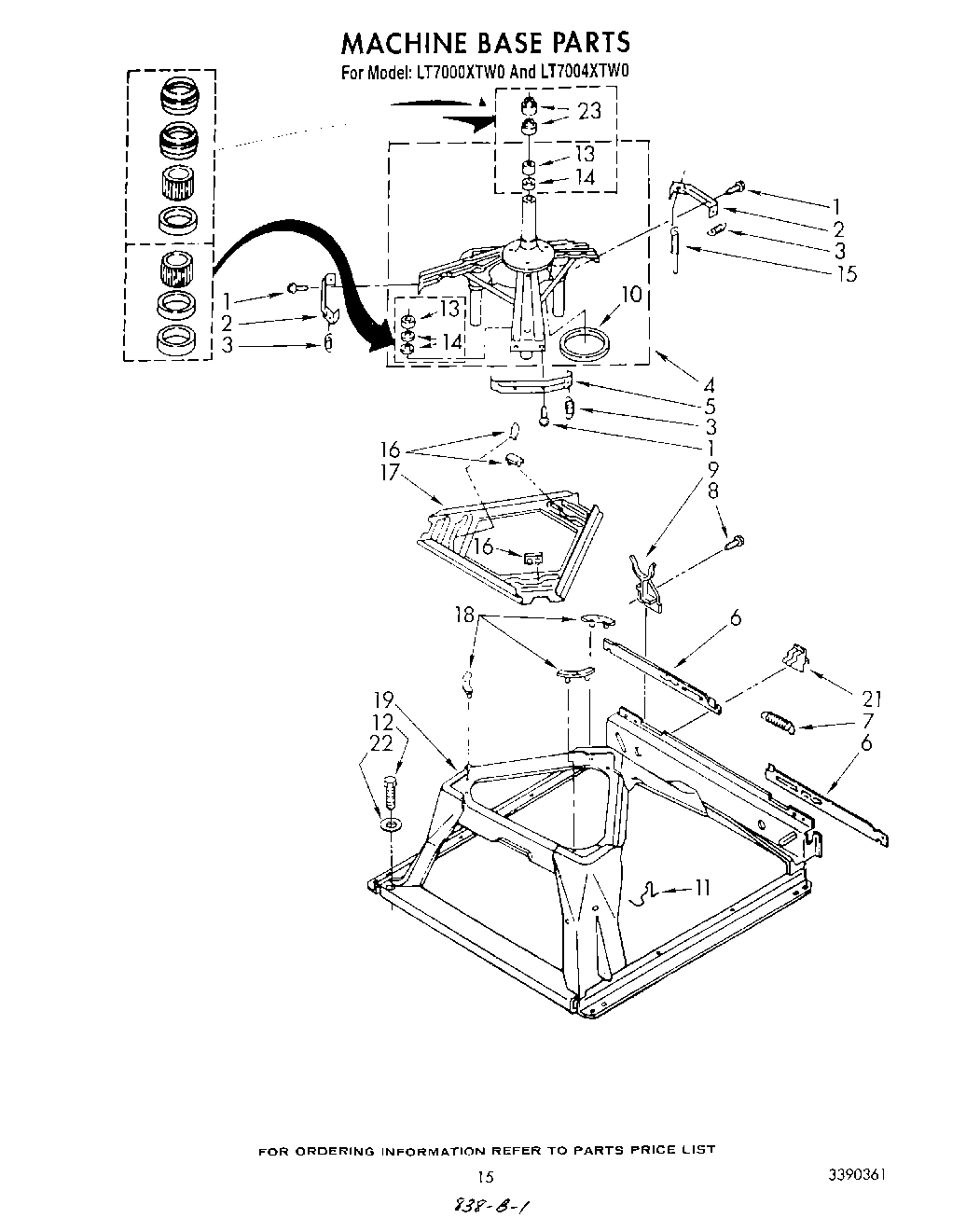

LT7004XTW0 10 – MACHINE BASE

Products

Position	Product
1	WP273556 Whirlpool Screw
2	WP64067 Whirlpool Bracket
3	WP63907 Whirlpool Washer Suspension Spring
4	Support & Brake, Tub
5	Bracket, Spring Outer (L.F.)
6	Link, Leveling Mechanism (2)
7	8316845 Whirlpool Washer Spring
8	SCREW
9	3350506 Whirlpool Retainer Clip
10	WP63134 Whirlpool Ring
11	WPW10145155 Whirlpool Retainer
12	Screw, Shoulder (2)
13	WP8546455 Whirlpool Bearing
14	W11095997 Whirlpool Seal
15	WPW10250667 Whirlpool Washer Suspension Spring
16	285219 Whirlpool Washer Suspension Plate Friction Pads 3 Pack
17	WP3946509 Whirlpool Skate Plate
18	285744 Whirlpool Washer Tub Suspension Rod Kit Pad 3 Pack
19	Base Assembly (Includes Illus. 11 & 18)
21	3349749 Whirlpool Restrainer
22	WASHER
23	WP8577376 Whirlpool Seal
24	285203 Whirlpool CP Bearing
