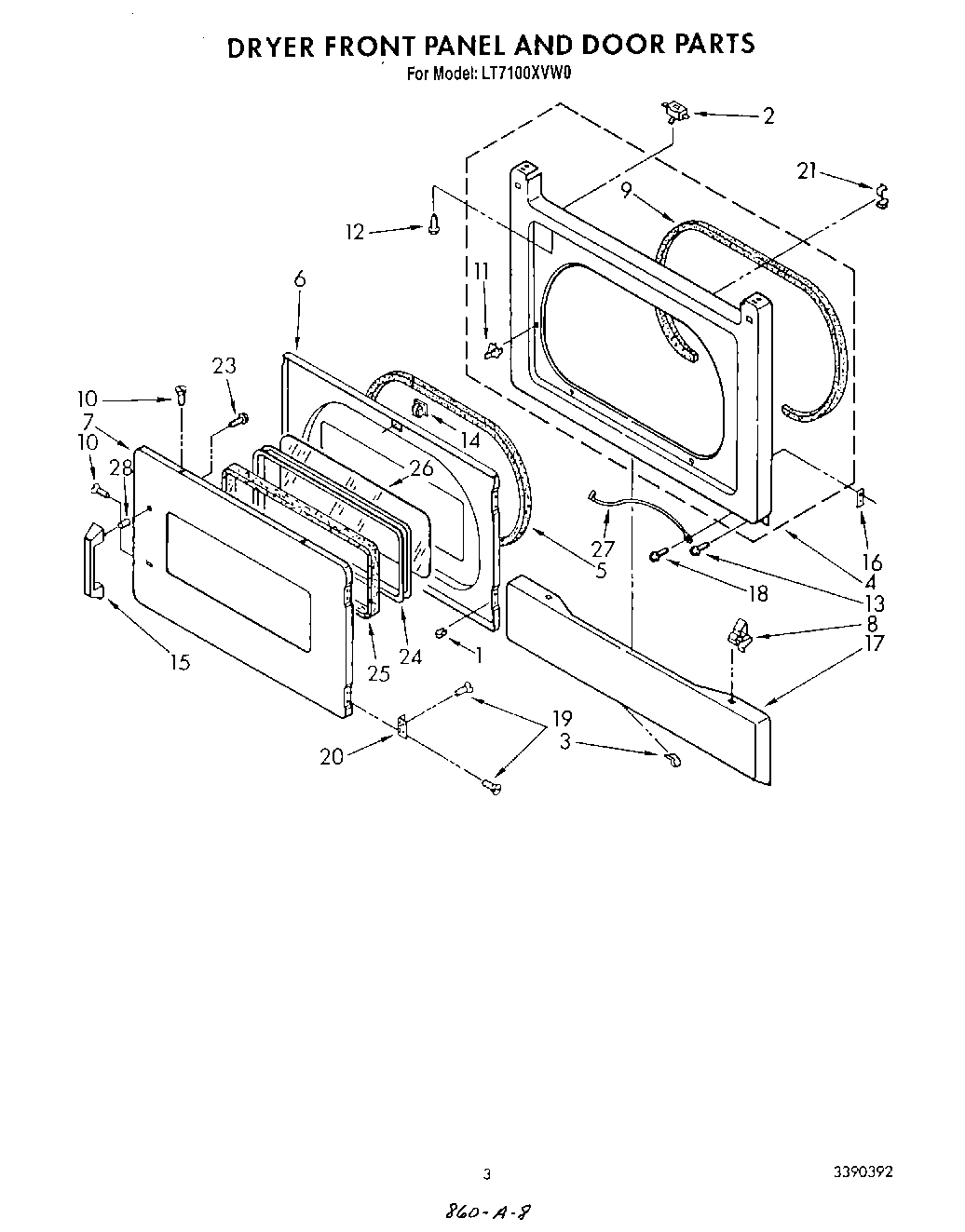

LT7100XVW0 03 – DRYER FRONT PANEL AND DOOR

LT7100XVW0 03 – DRYER FRONT PANEL AND DOOR

Written by

in

LT7100XVW0 03 – DRYER FRONT PANEL AND DOOR

Products

PositionProduct
1Nut, “U“ (4)
2WP3391902 Whirlpool Lid Switch
3WP98234 Whirlpool Nut
4279718 Whirlpool Panel
4Panel, Front (Almond)
5WP3390735 Whirlpool Door Seal
6W10244331 Whirlpool Rear Door
7Door, Front (Almond)
7W10322548 Whirlpool Door Assembly
8WP3388229 Whirlpool Dryer Spring Clip
9WP3387242 Whirlpool Seal
10WP694091 Whirlpool Screw
12WP3395530 Whirlpool Screw
13SCREW
14279570 Whirlpool Dryer Door Latch Kit
15WPL 3392907
15WP3392906 Whirlpool Door Handle
16WP3390902 Whirlpool Clip
173388958 Whirlpool Panel
17Panel, Toe (Almond)
18WPW10139210 Whirlpool Screw
19WP488627 Whirlpool Refrigerator Screw
20W11175815 Whirlpool Hinge
21Clip, Harness
23Screw, 8-18 x 3/4 (Door Handle)
243392914 Whirlpool Window Frame
25Gasket, Window
26Window (2)
27Ground-Sensor
28Fastener, Tubular
