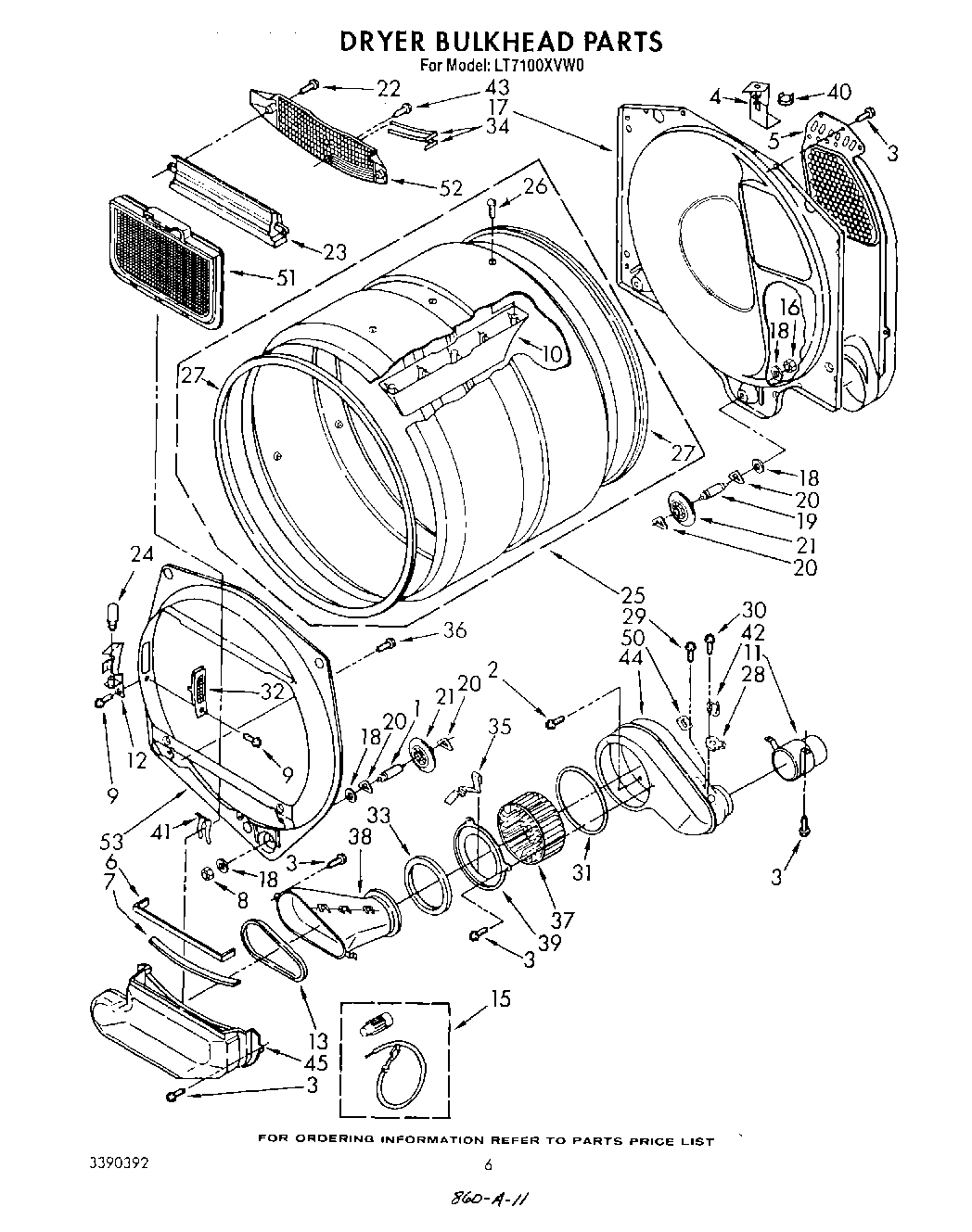

LT7100XVW0 05 – DRYER BULKHEADadmin2025-04-26T13:03:38+00:00LT7100XVW0 05 – DRYER BULKHEAD
Products
| Position | Product |
|---|
| 1 | SHAFT |
| 2 | WP90767 Whirlpool Screw |
| 3 | SCREW |
| 4 | 3392226 Whirlpool Clip |
| 5 | W11727962 Whirlpool HVAC Air Duct |
| 6 | WP697813 Whirlpool Seal |
| 7 | WP3391906 Whirlpool Seal |
| 8 | WP358160 Whirlpool Nut |
| 9 | Panel, Side L.H. (Screw, 10A x 1/2 (2)) |
| 10 | 279982 Whirlpool Drum Baffle |
| 11 | 279823 Whirlpool Exhaust Pipe |
| 12 | Bracket, Lampholder |
| 13 | WP697770 Whirlpool Blower Cover Plate Seal |
| 15 | 279457 Whirlpool Dryer Heating Element Wide Spade Connection |
| 16 | Nut, 3/8-16 (L.H.) |
| 17 | W11299300 Whirlpool Bulkhead Assembly |
| 18 | W11236646 Whirlpool Washer Assembly |
| 19 | SHAFT |
| 20 | WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller |
| 21 | WPW10314173 Whirlpool Dryer Drum Support Wheel |
| 22 | WP3387230 Whirlpool Screw |
| 23 | Housing, Outlet |
| 24 | Lamp, Incandescent |
| 25 | W10518375 Whirlpool Drum Assembly |
| 26 | Screw |
| 27 | 280114 Whirlpool Dryer Drum Seal |
| 28 | Heater, Thermostat |
| 29 | WPW10139210 Whirlpool Screw |
| 30 | WP488729 Whirlpool Refrigerator Door Screw |
| 32 | Lens, Drum Light |
| 33 | WP8566209 Whirlpool Seal |
| 34 | WP3387223 Whirlpool Electrode Assembly |
| 35 | 3390935 Whirlpool Clip |
| 36 | WP308685 Whirlpool Microwave Screw |
| 37 | WP697772 Whirlpool Dryer Blower Wheel |
| 38 | 279704 Whirlpool Duct Assembly |
| 39 | 279780 Whirlpool Plate Cover |
| 40 | W11568973 Whirlpool Thermostat Fix |
| 41 | W11712577 Whirlpool Clip |
| 42 | WP694674 Whirlpool Cycling Thermostat |
| 44 | WP8544363 Whirlpool Housing |
| 45 | 279700 Whirlpool Duct Lint |
| 50 | WP3403607 Whirlpool Thermoprotector |
| 51 | WP3389644 Whirlpool Screen Assembly |
| 52 | Grill, Outlet |
| 53 | Bulkhead, Front |
