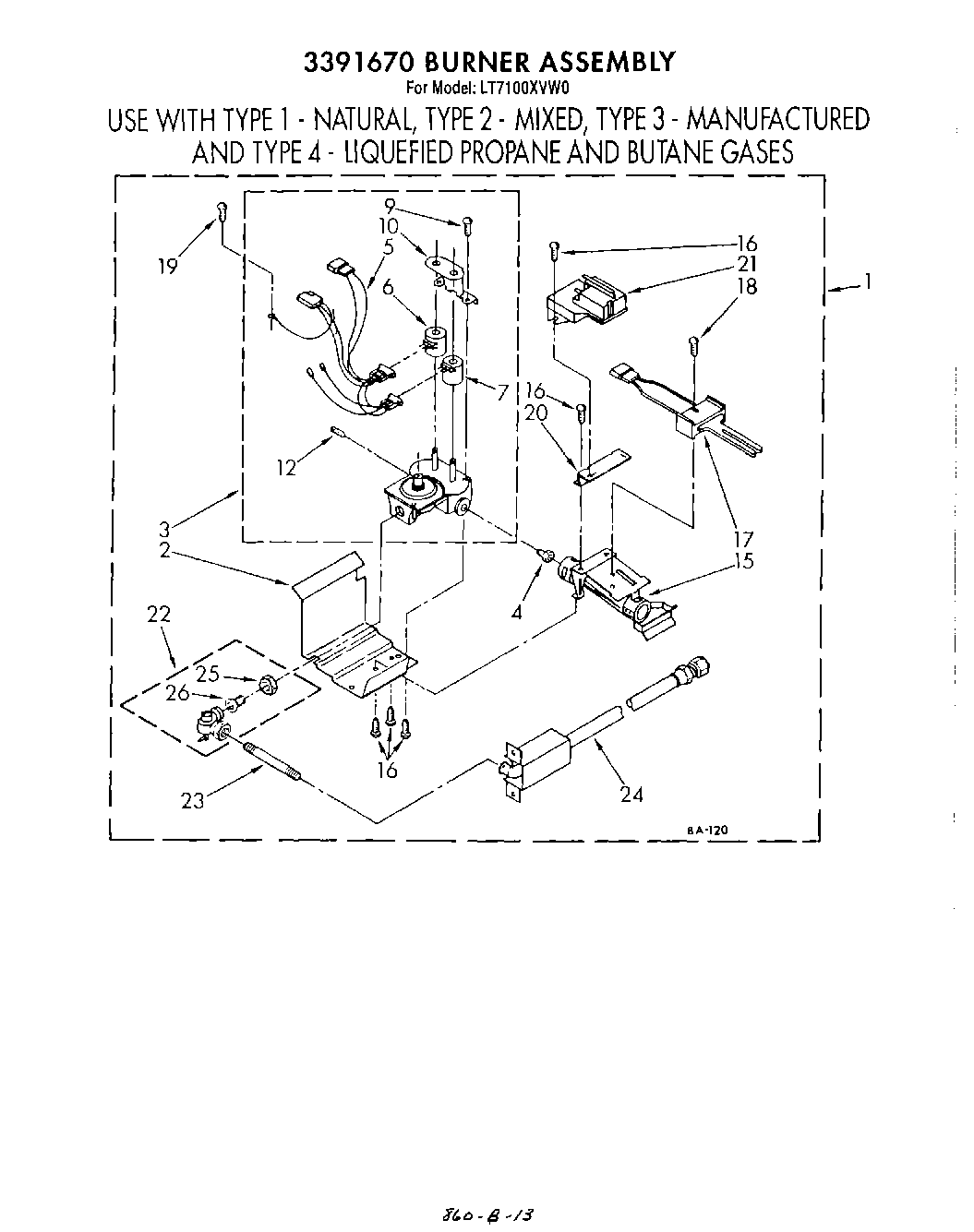

LT7100XVW0 16 – 3391670 BURNER

LT7100XVW0 16 – 3391670 BURNER

Products

PositionProduct
1Burner Assembly 60 Hz.
23391699 Whirlpool Base
3279889 Whirlpool Valve Assembly
4WP234822 Whirlpool Gas Orifice
4WP347744 Whirlpool Gas Orifice
5WP3401849 Whirlpool Wire Harness
6279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
9694421 Whirlpool Screw Assembly
10694538 Whirlpool Bracket
12W10295523 Whirlpool Plug
158578392 Whirlpool Burner
16SCREW
17279311 Whirlpool Dryer Flat Igniter with Bracket
18WPW10366705 Whirlpool Screw
19WP3390631 Whirlpool Screw
20Bracket, Sensor
21WP338906 Whirlpool Dryer Gas Sensor
22697441 Whirlpool Valve
23Nipple, Short
24Supply Line (Gas)
25Nut, Compression
263392235A Whirlpool Gas Conversion Kit
26Kit, Conversion Type 1 To Type 3 (MFD)
263393767 Whirlpool Pipe
