LT800EXW1 09 – COUNTERWEIGHT SECTION

LT800EXW1 09 – COUNTERWEIGHT SECTION

Written by

in

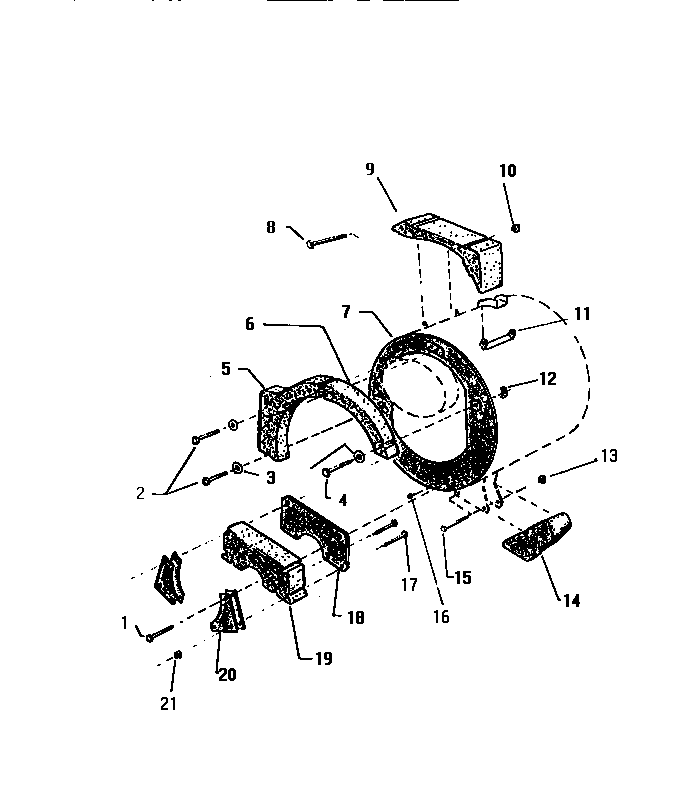

LT800EXW1 09 – COUNTERWEIGHT SECTION

Products

PositionProduct
2BOLT 2 REQ.
3WASHER 2 REQ.
4BOLT 2 REQ.
5COUNTERWEIGHT, CTR LEFT
6COUNTERWEIGHT, UPPER RIGHT
7RING COUNTERWEIGHT
9COUNTERWEIGHT TOP
10WCI Q500831
11WCI Q613875
12NUT 6 REQ.
13NUT 4 REQ.
14COUNTERWEIGHT BOTTOM LEFT
15BOLT 2 REQ.
16WCI Q505564
17BOLT 2 REQ.
18BRKT
19COUNTERWEIGHT LOWER CENTER
20BRKT 2 REQ.
21WCI Q402603
