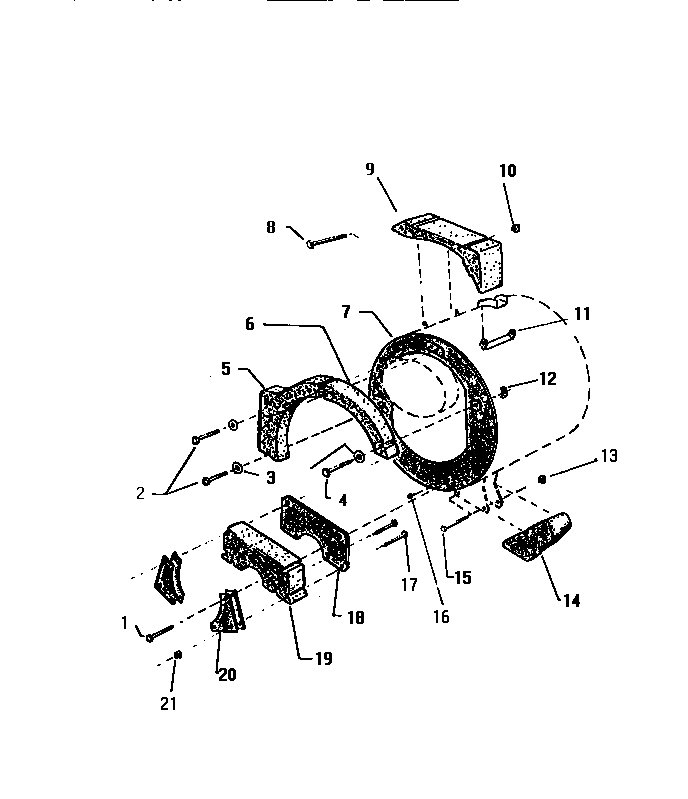

LT800EXW4 09 – COUNTERWEIGHT SECTION

Products

Position	Product
2	BOLT 2 REQ.
3	WASHER 2 REQ.
4	BOLT 2 REQ.
5	COUNTERWEIGHT, CTR LEFT
6	COUNTERWEIGHT, UPPER RIGHT
7	RING COUNTERWEIGHT
9	COUNTERWEIGHT TOP
10	WCI Q500831
11	WCI Q613875
12	NUT 6 REQ.
13	NUT 4 REQ.
14	COUNTERWEIGHT BOTTOM LEFT
15	BOLT 2 REQ.
16	WCI Q505564
17	BOLT 2 REQ.
18	BRKT
19	COUNTERWEIGHT LOWER CENTER
20	BRKT 2 REQ.
21	WCI Q402603
