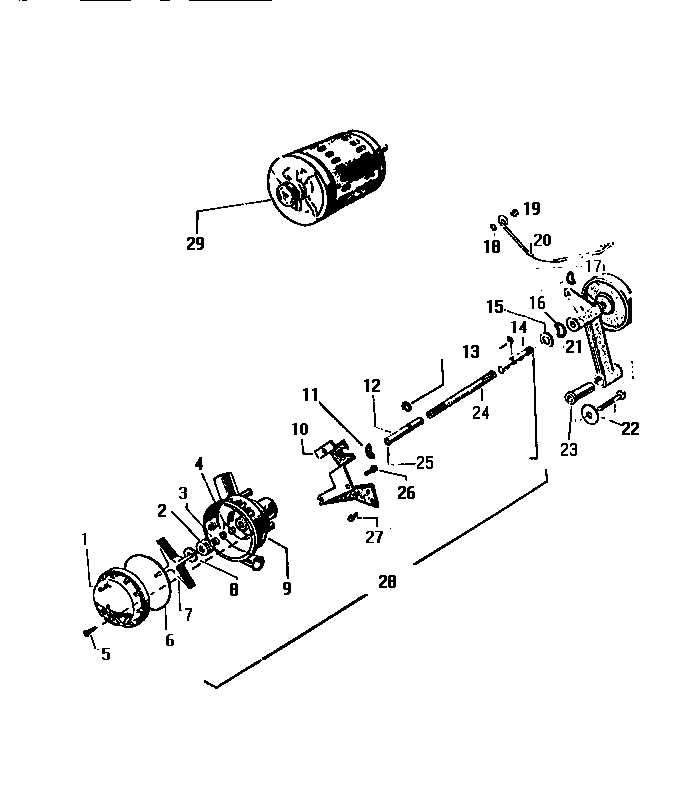

LT800JXW1 08 – PUMP & MOTOR PARTS

Products

Position	Product
1	WCI Q165315
2	WCI Q22171
3	WCI Q60859
4	WCI Q7431
5	SCREW (7)
6	WCI Q22312
7	WCI Q54488
8	WCI Q504241
9	WCI Q165316
10	WCI Q155911
12	WCI Q59874
13	WCI Q7371
14	WCI Q127481
15	WCI 1215198
16	WCI 1147601
17	WCI Q127492
18	WCI Q410503
19	WCI Q501082
20	WCI Q121027
21	WCI Q63166
22	WCI Q401301
23	WCI Q88816
24	WCI Q7358
25	WCI Q127521
26	SCREW (3)
27	WCI Q501284
28	WCI Q165317
29B	MOTOR PROD NO. (GE) (COMPONENT PARTS NOT AVAILABLE EXC.TERM. BOARD OR START SW.)
29A	MOTOR PROD. NO. (W) (COMPONENT PARTS NOT AVAILABLE EXC.TERM. BOARD OR START SW.)
29C	TERMINAL BOARD (WHEN REPLACING Q121825)
29	MOTOR
