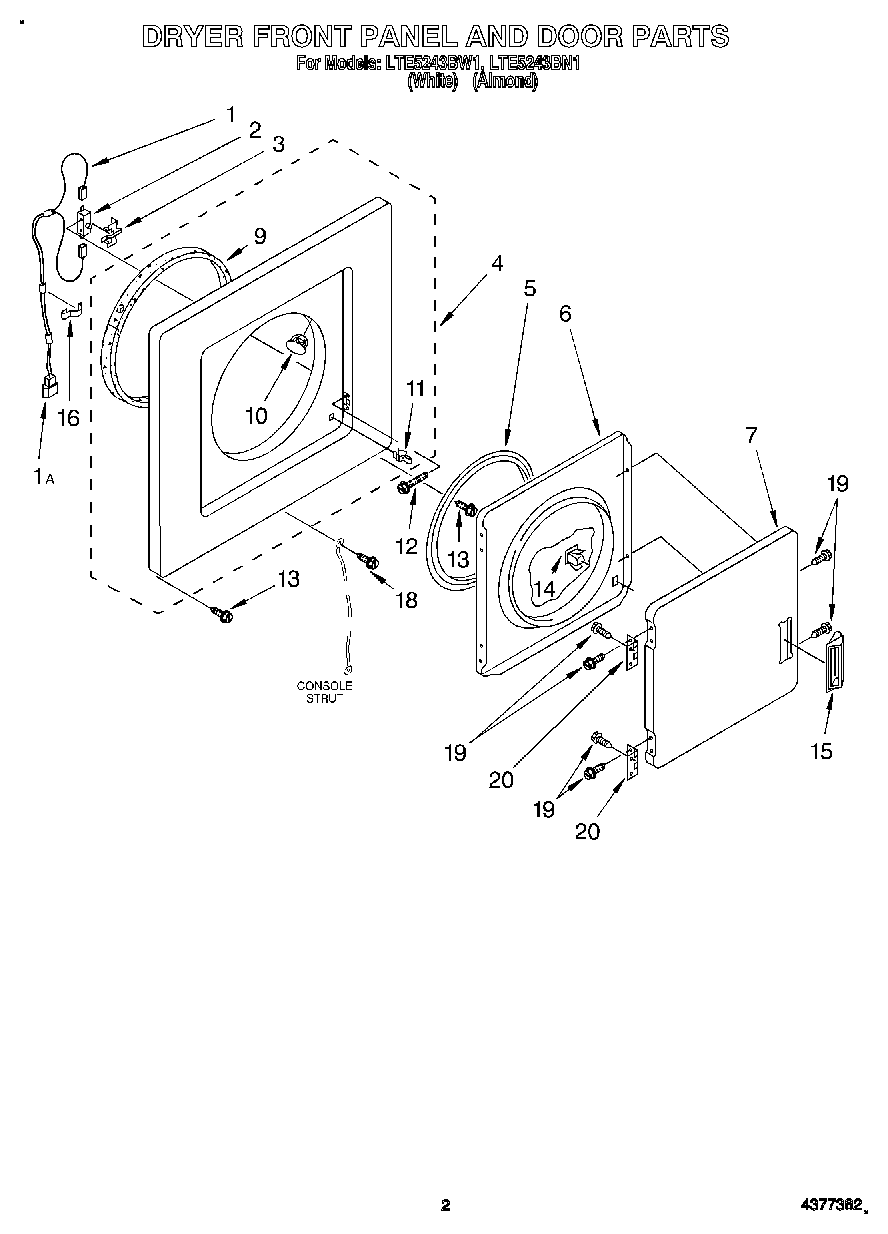

LTE5243BN1 02 – DRYER FRONT PANEL AND DOORadmin2025-04-26T13:00:19+00:00LTE5243BN1 02 – DRYER FRONT PANEL AND DOOR ProductsPositionProduct1Harness, Door Switch (Includes Illus. 1A)1AWP717253 Whirlpool Dishwasher Connector2W10820036 Whirlpool Door Switch Kit3WP691581 Whirlpool Actuator4285314 Whirlpool O/S1 Panel4Panel, Front (Almond)5W11613302 Whirlpool Door Seal6280077 Whirlpool Door7WP348205 Whirlpool Door7Door, Front (Almond)9279264 Whirlpool Bearing and Seal Kit10279220 Whirlpool Clip11279570 Whirlpool Dryer Door Latch Kit12WP98129 Whirlpool Screw13SCREW14WP3389441 Whirlpool Door Catch15WP686711 Whirlpool Door Handle15Handle, Door (Almond)16Support Protector18WP3390631 Whirlpool Screw19WP694091 Whirlpool Screw20WP348023 Whirlpool Hinge
