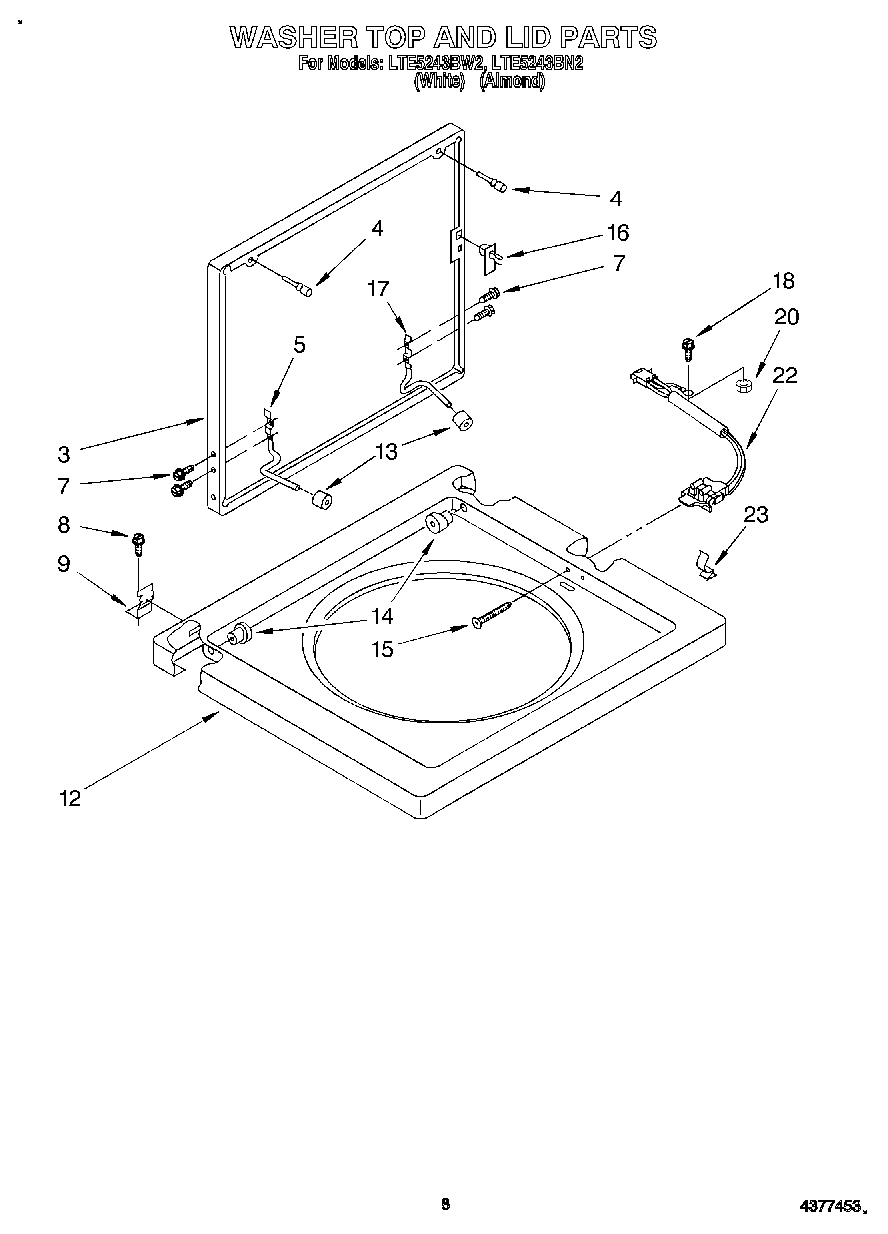

LTE5243BN2 06 – WASHER TOP AND LID

Products

Position	Product
3	WP3398848 Whirlpool Lid
3	Lid (Almond)
4	80011 Whirlpool Washer Lid Bumper Kit of 2
5	384458 Whirlpool Hinge Assembly
7	SCREW
8	SCREW
9	WP692985 Whirlpool Clip Assembly
12	Top (Almond)
12	WP384693 Whirlpool Top
13	Bumper, Lid Hinge
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	WP3356311 Whirlpool Screw
16	WP358684 Whirlpool Strike Assembly
17	384459 Whirlpool Hinge
18	WP308544 Whirlpool Screw
20	W10080180 Whirlpool Nut
22	WP3355806 Whirlpool Lid Switch
23	WP90016 Whirlpool Clip
