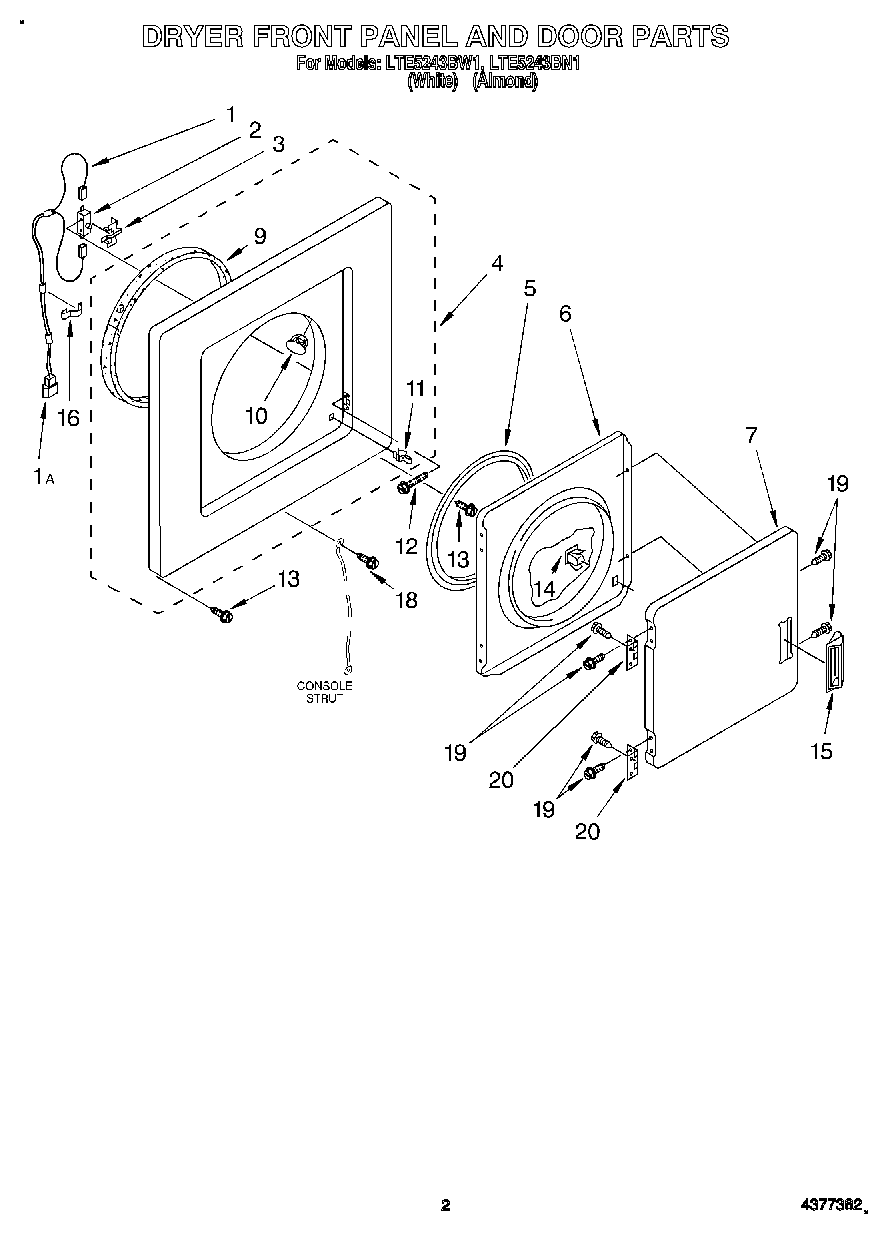

LTE5243BW1 02 – DRYER FRONT PANEL AND DOOR

Products

Position	Product
1	Harness, Door Switch (Includes Illus. 1A)
1A	WP717253 Whirlpool Dishwasher Connector
2	W10820036 Whirlpool Door Switch Kit
3	WP691581 Whirlpool Actuator
4	285314 Whirlpool O/S1 Panel
4	Panel, Front (Almond)
5	W11613302 Whirlpool Door Seal
6	280077 Whirlpool Door
7	WP348205 Whirlpool Door
7	Door, Front (Almond)
9	279264 Whirlpool Bearing and Seal Kit
10	279220 Whirlpool Clip
11	279570 Whirlpool Dryer Door Latch Kit
12	WP98129 Whirlpool Screw
13	SCREW
14	WP3389441 Whirlpool Door Catch
15	WP686711 Whirlpool Door Handle
15	Handle, Door (Almond)
16	Support Protector
18	WP3390631 Whirlpool Screw
19	WP694091 Whirlpool Screw
20	WP348023 Whirlpool Hinge
