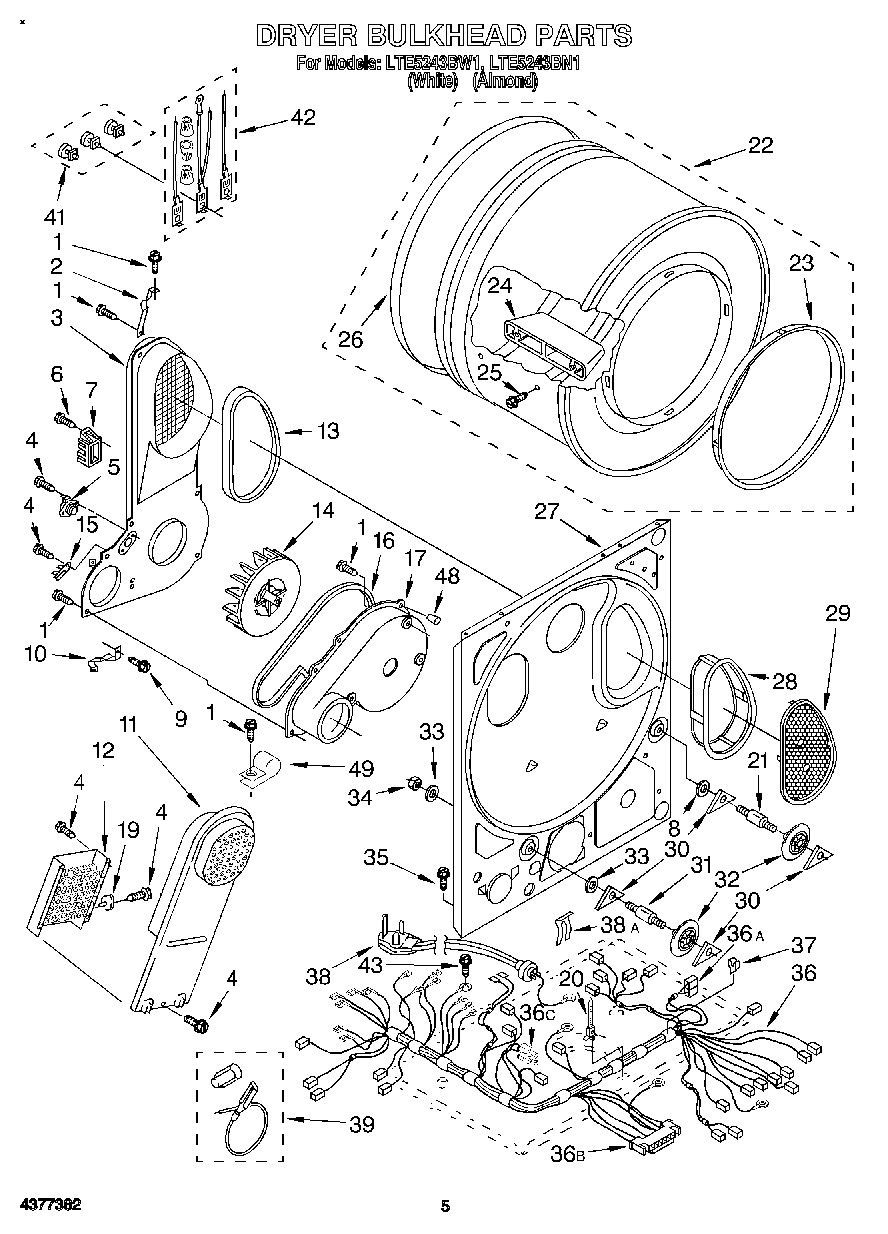

LTE5243BW1 04 – DRYER BULKHEAD

LTE5243BW1 04 – DRYER BULKHEAD

Written by

in

LTE5243BW1 04 – DRYER BULKHEAD

Products

PositionProduct
1SCREW
2345396 Whirlpool Clip
3Air Duct & Bracket
4WP90767 Whirlpool Screw
5THRMST-FIX
6WP308685 Whirlpool Microwave Screw
7279320 Whirlpool Dryer Rear Terminal Block Kit
8WP3388703 Whirlpool Washer
9WP489463 Whirlpool Refrigerator Screw
10279771 Whirlpool Clip
11WP3401380 Whirlpool Box
12WP279843 Whirlpool Heating Element
13SEAL
14WP696426 Whirlpool Wheel
15WP3399849 Whirlpool Thermal Fuse
16Seal, Fan Scroll
17WP696418 Whirlpool Fan Scroll
19THRMST-FIX
20WP3391018 Whirlpool Wire Tie
21SHAFT SUPPORT ROLLER DRYER
223391834 Whirlpool Drum
23WP3394508 Whirlpool Bearing Ring
24685207 Whirlpool Dryer Baffle
25WPW10109200 Whirlpool Screw
26SEAL
27279848 Whirlpool Bulkhead
28W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31SHAFT SUPPORT ROLLER DRYER
32349241T Whirlpool Dryer Drum Support Roller Kit
33WP348197 Whirlpool Washer Assembly
34WP3359452 Whirlpool Nut
35WP3390631 Whirlpool Screw
36AReceptacle, Latching (2-Way) (Uses Terminal 94614)
36B3395683 Whirlpool Connector
36CWP62889 Whirlpool Washer Lid Switch Terminal Receptacle
36Harness, Main Dryer Wiring (Includes Nos.36A, 36B & 36C)
37CLIP
38PT220L Whirlpool Dryer Power Cord
38AW11712577 Whirlpool Clip
39279457 Whirlpool Dryer Heating Element Wide Spade Connection
41279393 Whirlpool Terminal Block Screw and Nut Kit
42279318 Whirlpool Terminal
43W10850756 Whirlpool Screw
48W10491983 Whirlpool Tine Tip
49488946 Whirlpool Air Conditioner Clamp
