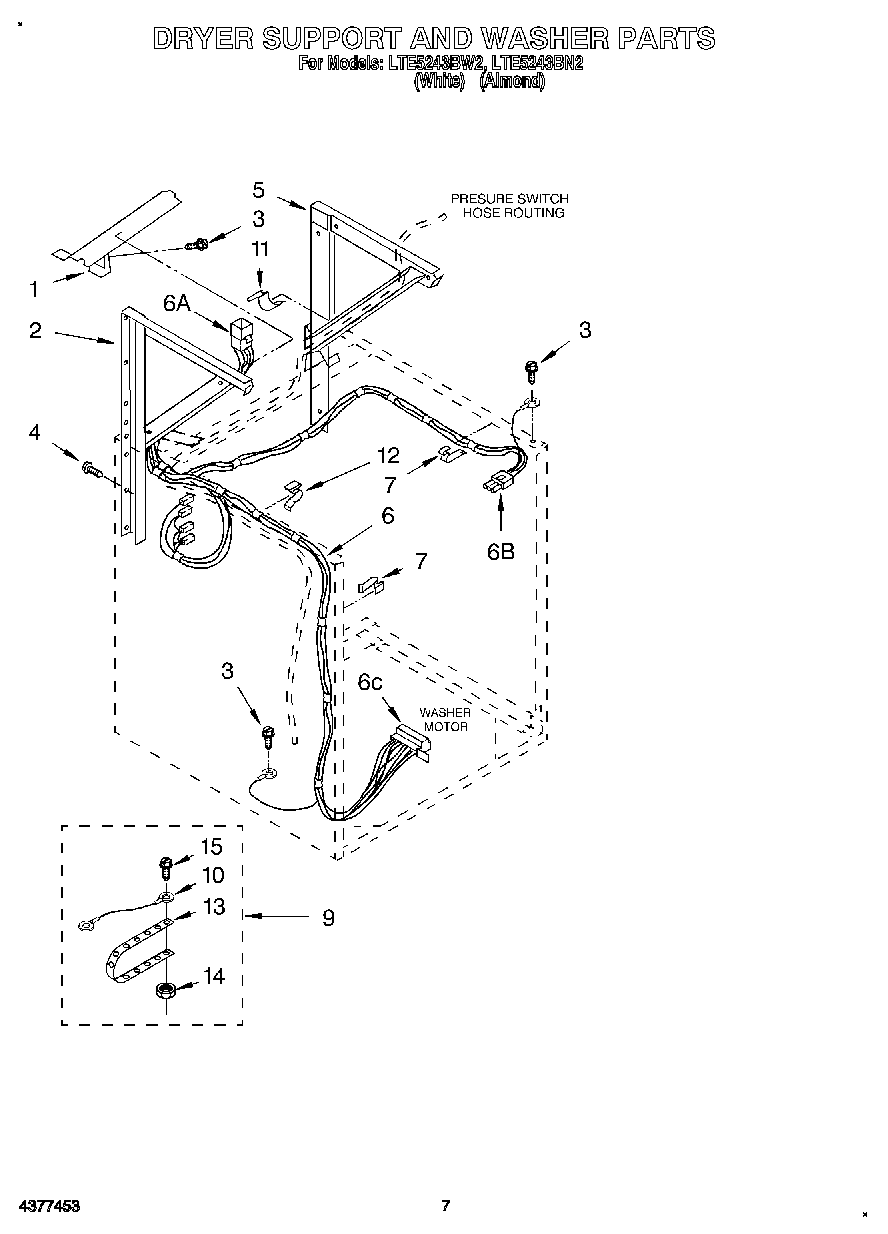

LTE5243BW2 05 – DRYER SUPPORT AND WASHER

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4W11676450 Whirlpool Screw
5W11174024 Whirlpool Support
6Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
6APlug, Terminal (12-Way) (Connects With Automatic Console Harness)
6CWP62505 Whirlpool Connector
6BWP62889 Whirlpool Washer Lid Switch Terminal Receptacle
78528351 Whirlpool Clip
9KIT, GROUNDING
10WPL 685449
11WP90016 Whirlpool Clip
12CLIP
13Strap, Ground
14W10080180 Whirlpool Nut
15Screw, Ground (10-24 x 1)
