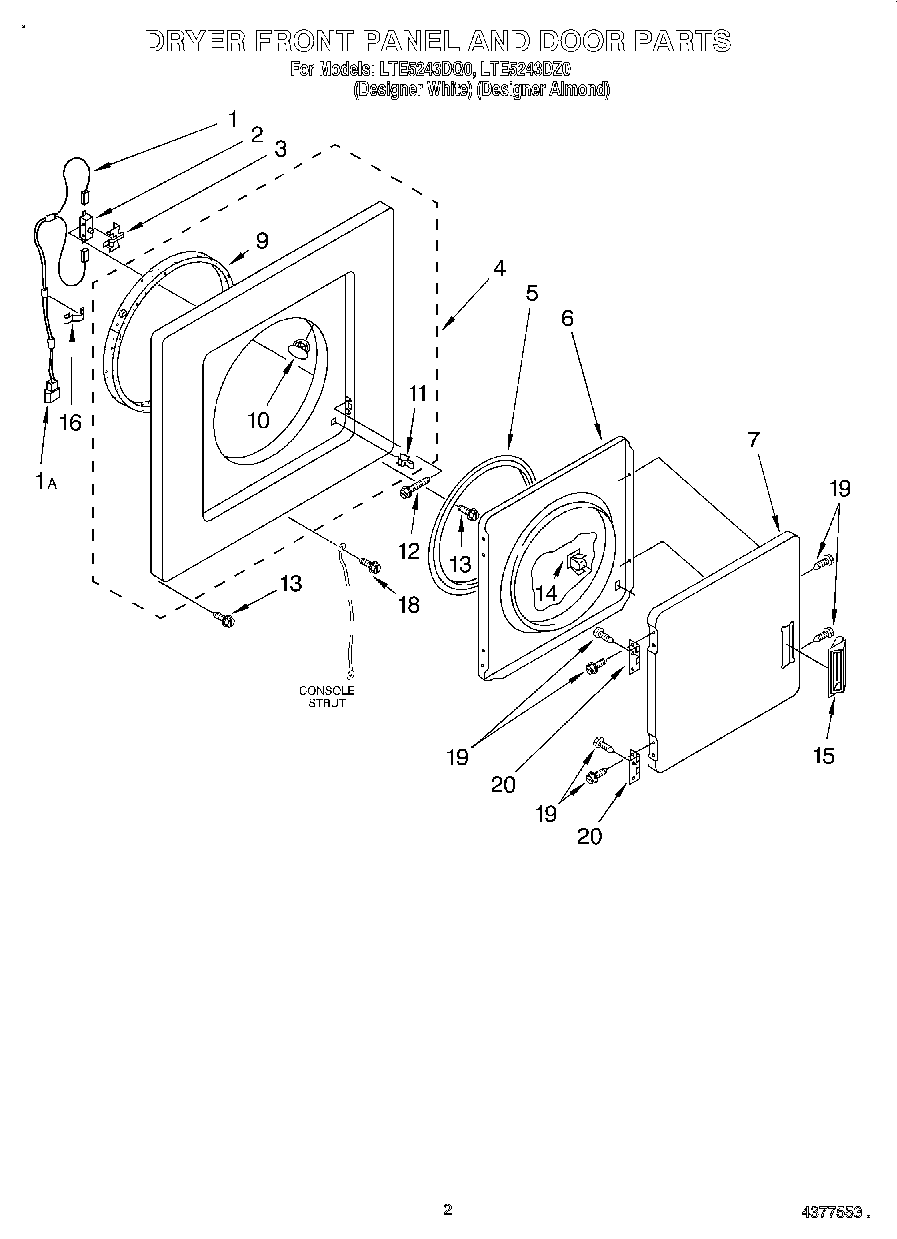

LTE5243DQ0 02 – DRYER FRONT PANEL AND DOOR

LTE5243DQ0 02 – DRYER FRONT PANEL AND DOOR

Written by

in

LTE5243DQ0 02 – DRYER FRONT PANEL AND DOOR

Products

PositionProduct
1Harness, Door Switch (Includes Illus. 1A)
1AWP717253 Whirlpool Dishwasher Connector
2W10820036 Whirlpool Door Switch Kit
3WP691581 Whirlpool Actuator
4285314 Whirlpool O/S1 Panel
4Panel, Front (Almond)
5W11613302 Whirlpool Door Seal
6280077 Whirlpool Door
7WP348205 Whirlpool Door
7Door, Front (Almond)
9279264 Whirlpool Bearing and Seal Kit
10279220 Whirlpool Clip
11279570 Whirlpool Dryer Door Latch Kit
12WP98129 Whirlpool Screw
13SCREW
14WP3389441 Whirlpool Door Catch
15WP686711 Whirlpool Door Handle
15Handle, Door (Almond)
16Support Protector
18WP3390631 Whirlpool Screw
19WP694091 Whirlpool Screw
20WP348023 Whirlpool Hinge
