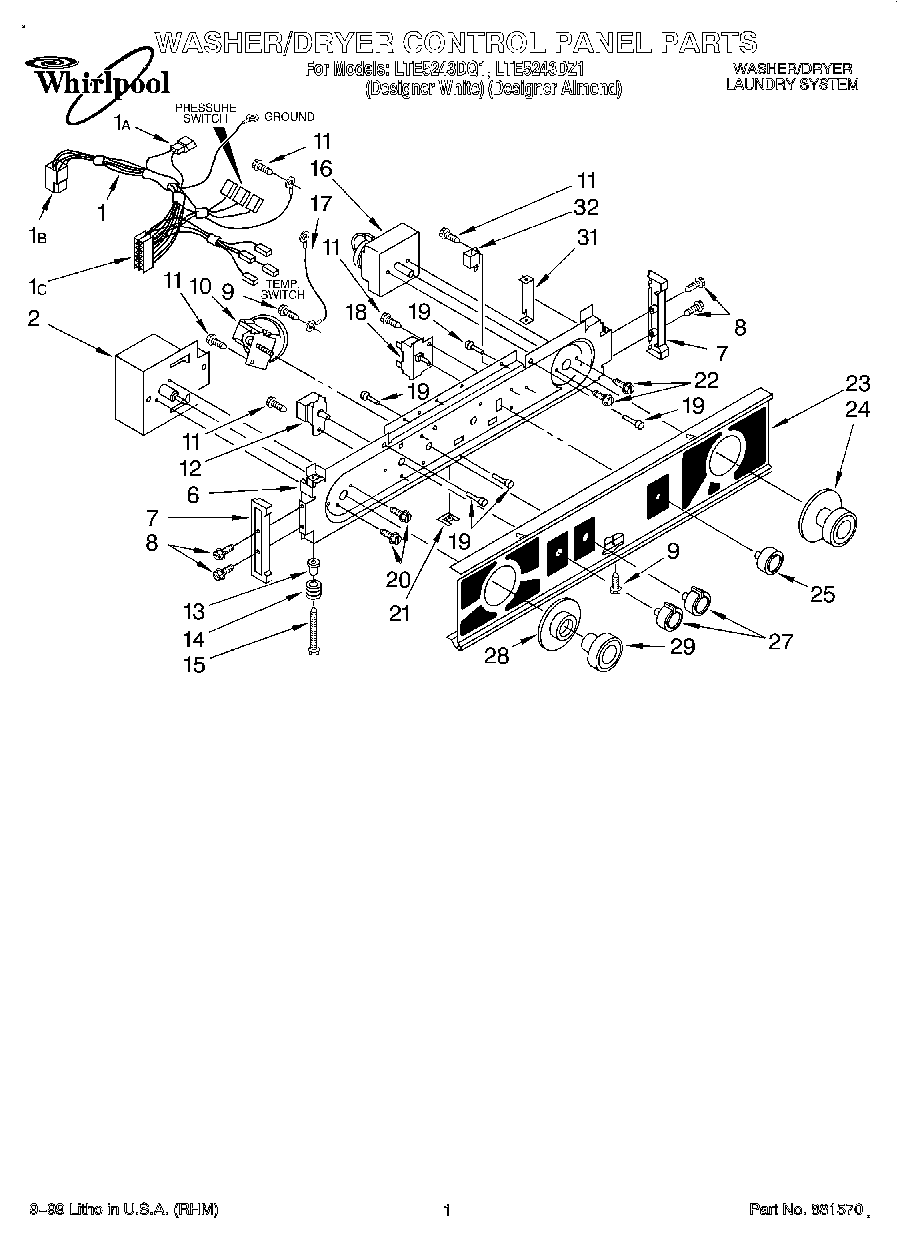

LTE5243DQ1 01 – WASHER/DRYER CONTROL PANEL

LTE5243DQ1 01 – WASHER/DRYER CONTROL PANEL

Written by

in

LTE5243DQ1 01 – WASHER/DRYER CONTROL PANEL

Products

PositionProduct
1A3350130 Whirlpool Connector
1B696073 Whirlpool Connector
1CTimer, Block Disconnect (White)
1WP3406288 Whirlpool Wire Harness
2WP3952499 Whirlpool Timer Control
68528153 Whirlpool Bracket Assembly
7End Cap, Console (L.H. & R.H.)
8NAMEPLATE
9WP694091 Whirlpool Screw
10WP3362987 Whirlpool Washer Water Level Switch
11WP3390631 Whirlpool Screw
12WP8054142 Whirlpool Temperature Switch
13693711 Whirlpool Sleeve
14WP693151 Whirlpool Lock Spring
15Screw, Console Lock (2)
16WP3406720 Whirlpool Timer
17Strut, Console
18WP3395382 Whirlpool Push To Start Switch
19693152 Whirlpool Bumper
20WP356418 Whirlpool Screw
21694037 Whirlpool Clip
22WPW10139210 Whirlpool Screw
23Panel, Control
23Panel, Control (Almond)
243957753 Whirlpool Knob
24WP3957752 Whirlpool Knob
25WP3957800 Whirlpool Knob
27WP3957796 Whirlpool Knob
273957797 Whirlpool Knob
28WP3957841 Whirlpool Dial
28Dial, Timer (Almond)
29WP3957823 Whirlpool Knob
29W10807860 Whirlpool White Control Knob
31WP692983 Whirlpool Console Lock
32WP694419 Whirlpool Buzzer Adjuster
