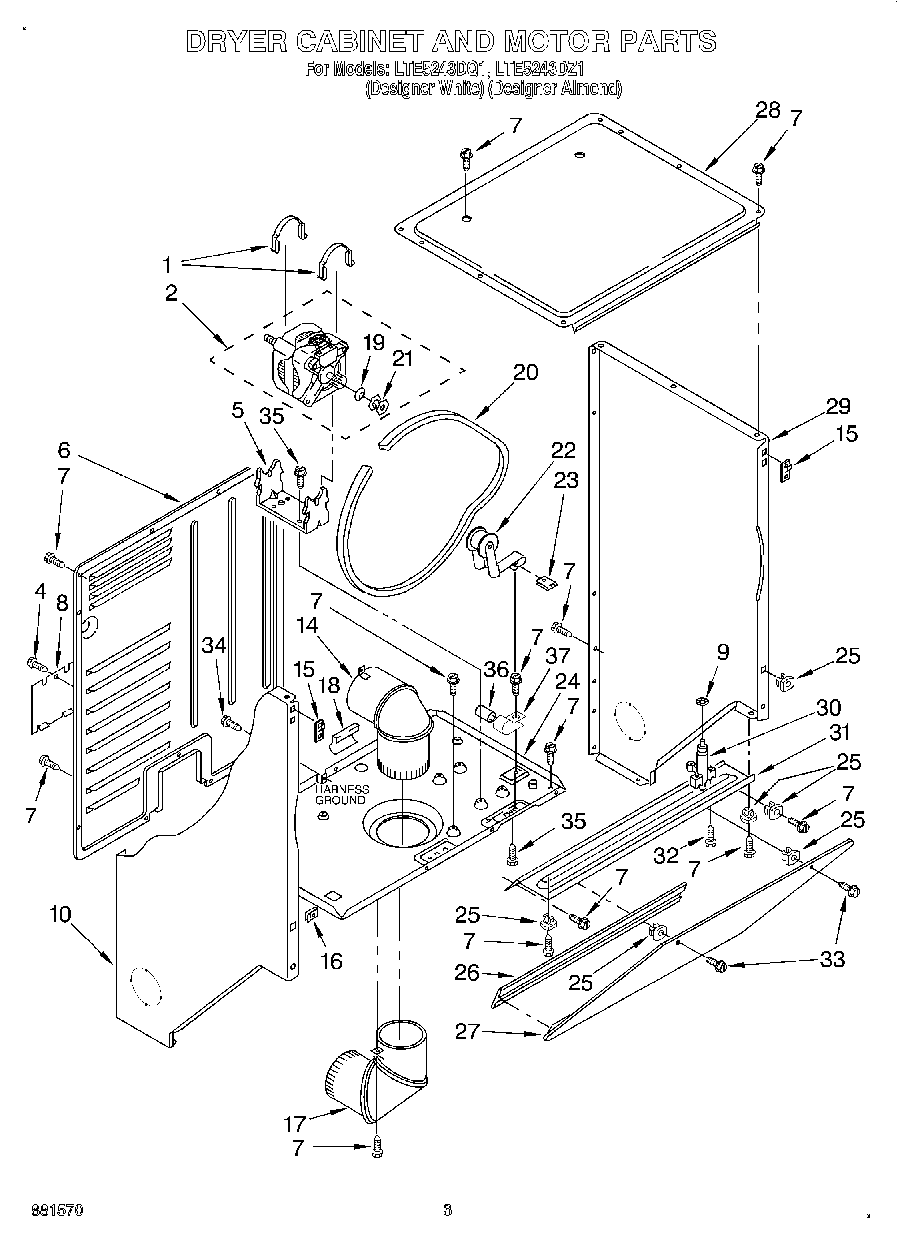

LTE5243DQ1 03 – DRYER CABINET AND MOTOR

Products

Position	Product
1	WP660658 Whirlpool Clamp
2	279827 Whirlpool Dryer Drive Motor
4	WP693995 Whirlpool Screw
5	696541 Whirlpool Base
6	Panel, Rear
7	SCREW
8	Cover, Terminal Block
9	WP90296 Whirlpool Clip
10	WP3402293 Whirlpool Panel Assembly
10	Panel, Side (L.H.) (Almond)
14	Elbow, Upper
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	WP98234 Whirlpool Nut
17	3399603 Whirlpool Elbow
18	686770 Whirlpool Support Bracket
19	WP3393657 Whirlpool Belt Retainer
20	3394652 Whirlpool Drum Belt
21	8066051 Whirlpool Motor Pulley
22	WP691366 Whirlpool Dryer Idler Pulley Assembly
23	WP692771 Whirlpool Nut
24	3399632 Whirlpool Dryer Base
25	WP692400 Whirlpool Nut
26	WP692926 Whirlpool Cover Appliance
27	Panel, Transition (Almond)
27	692933 Whirlpool Panel
28	WP692641 Whirlpool Dryer Top Assembly
29	Panel, Side (R.H.) (Almond)
29	WP3402287 Whirlpool Panel
30	WP693145 Whirlpool Lid Latch
31	WP692781 Whirlpool Closure Assembly
31	WPL 692782
32	Screw & Washer
33	WP693304 Whirlpool Screw
34	W10850756 Whirlpool Screw
35	WP3390631 Whirlpool Screw
36	CAPACITOR
37	357030 Whirlpool Clamp
