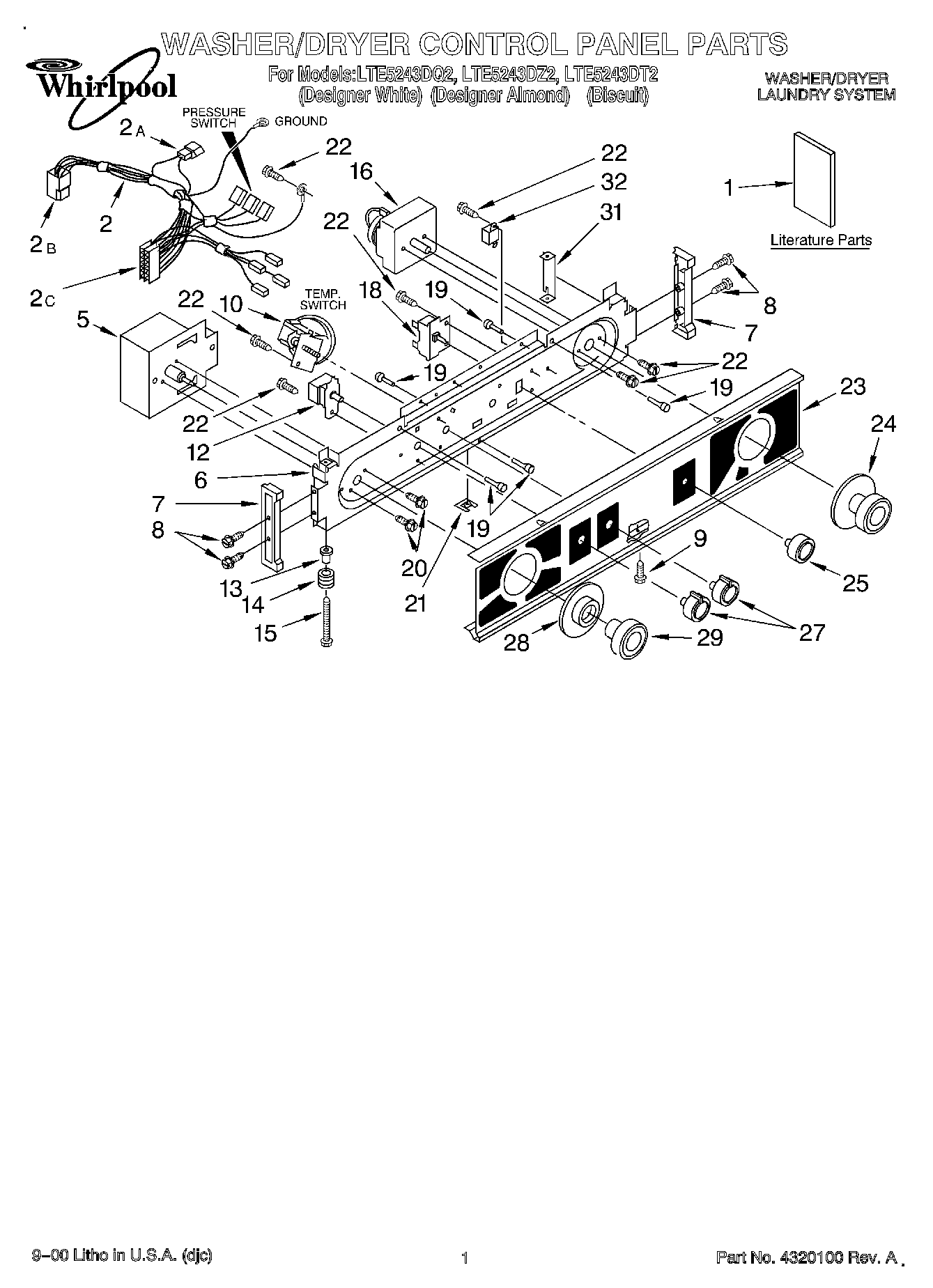

LTE5243DQ2 01 – WASHER/DRYER CONTROL PANEL, LITERAT

Products

Position	Product
1	Guide, Use & Care
1	Label, Wiring Diagram
1	Literature Parts (Energy Guide)
1	Instructions, Installation
2B	696073 Whirlpool Connector
2A	3350130 Whirlpool Connector
2	WP3406288 Whirlpool Wire Harness
2C	Timer, Block Disconnect (White)
5	WP3952499 Whirlpool Timer Control
6	8528153 Whirlpool Bracket Assembly
7	End Cap, Console (L.H. & R.H.)
8	NAMEPLATE
9	WP694091 Whirlpool Screw
10	WP3362987 Whirlpool Washer Water Level Switch
12	WP8054142 Whirlpool Temperature Switch
13	693711 Whirlpool Sleeve
14	WP693151 Whirlpool Lock Spring
15	WP3400860 Whirlpool Screw
16	WP3406720 Whirlpool Timer
18	WP3395382 Whirlpool Push To Start Switch
19	693152 Whirlpool Bumper
20	WP356418 Whirlpool Screw
21	694037 Whirlpool Clip
22	WPW10139210 Whirlpool Screw
23	Panel, Control
23	Panel, Control (Almond)
23	Panel, Control (Biscuit)
24	3957753 Whirlpool Knob
24	WP3957752 Whirlpool Knob
25	WP3957800 Whirlpool Knob
25	3978871 Whirlpool Knob
27	3957797 Whirlpool Knob
27	WP3957796 Whirlpool Knob
28	Dial, Timer (Washer) (Biscuit)
28	Dial, Timer (Almond)
28	WP3957841 Whirlpool Dial
29	W10807860 Whirlpool White Control Knob
29	WP3957823 Whirlpool Knob
29	WP3957822 Whirlpool Knob
31	WP692983 Whirlpool Console Lock
32	WP694419 Whirlpool Buzzer Adjuster
