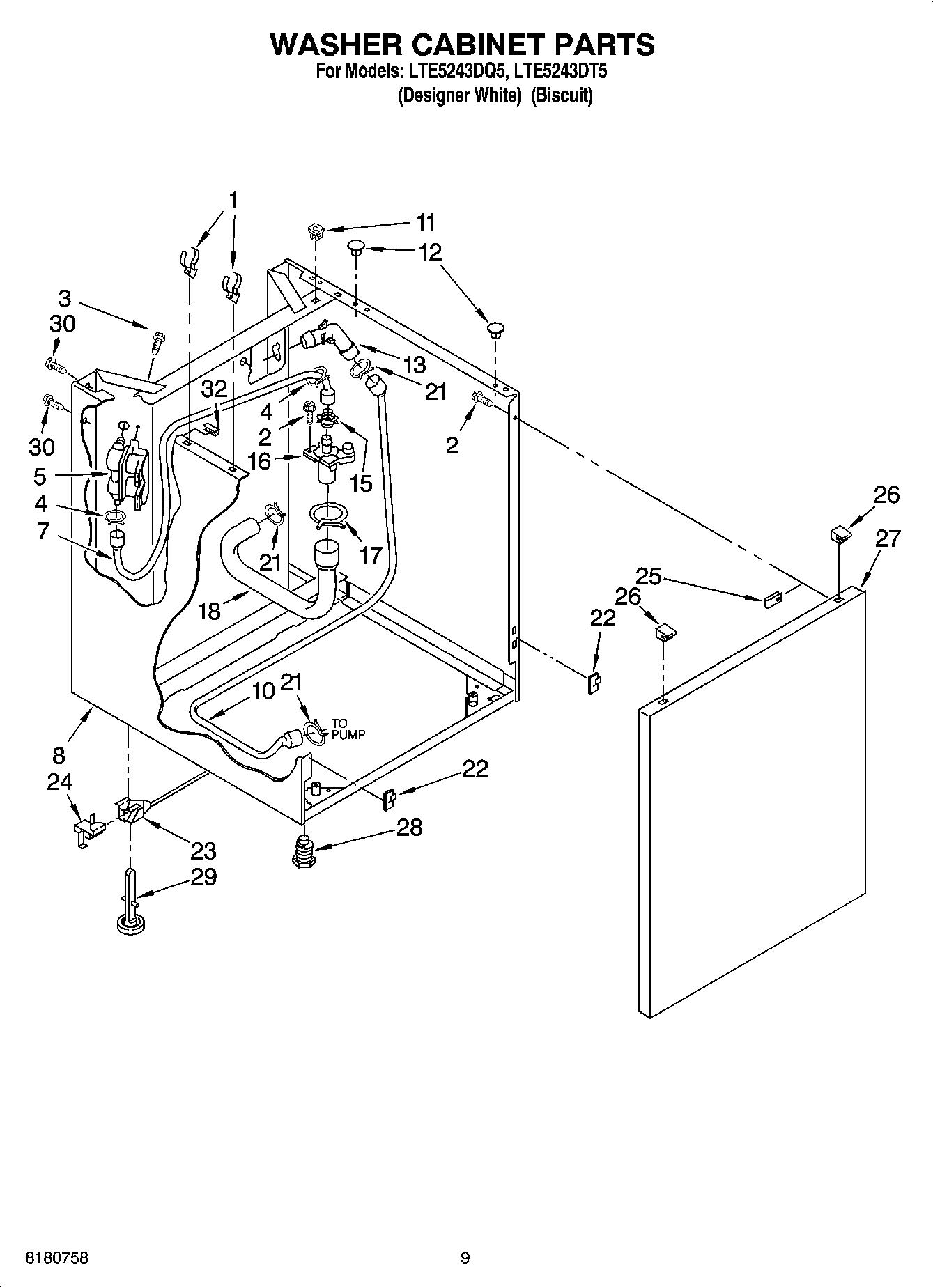

LTE5243DQ5 07 – WASHER CABINET PARTS

Products

Position	Product
1	356746 Whirlpool Clip
2	SCREW
3	WP9740848 Whirlpool Dishwasher Screw
4	WP596669 Whirlpool Hose Clamp
5	285805 Whirlpool Washer Water Inlet Valve
7	WP692699 Whirlpool Hose
8	Cabinet (Biscuit)
8	Cabinet (White)
10	WP696710 Whirlpool Hose
11	WP692400 Whirlpool Nut
12	WP660975 Whirlpool Button Plug
13	W11213338 Whirlpool Connector
15	WP356471 Whirlpool Cap
16	WP356363 Whirlpool Siphon Break
17	WP616099 Whirlpool Clamp
18	WP696394 Whirlpool Hose
21	WP285655 Whirlpool Hose Clamp
22	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
23	WP358652 Whirlpool Link
24	WP359364 Whirlpool Clip
25	WP98234 Whirlpool Nut
26	WP345670 Whirlpool Lock
27	WP692628 Whirlpool Panel
27	Panel, Front (Biscuit)
28	WP367594 Whirlpool Leveling Feet
29	WP358594 Whirlpool Leveling Feet
30	W11676450 Whirlpool Screw
32	3390046 Whirlpool Protector
