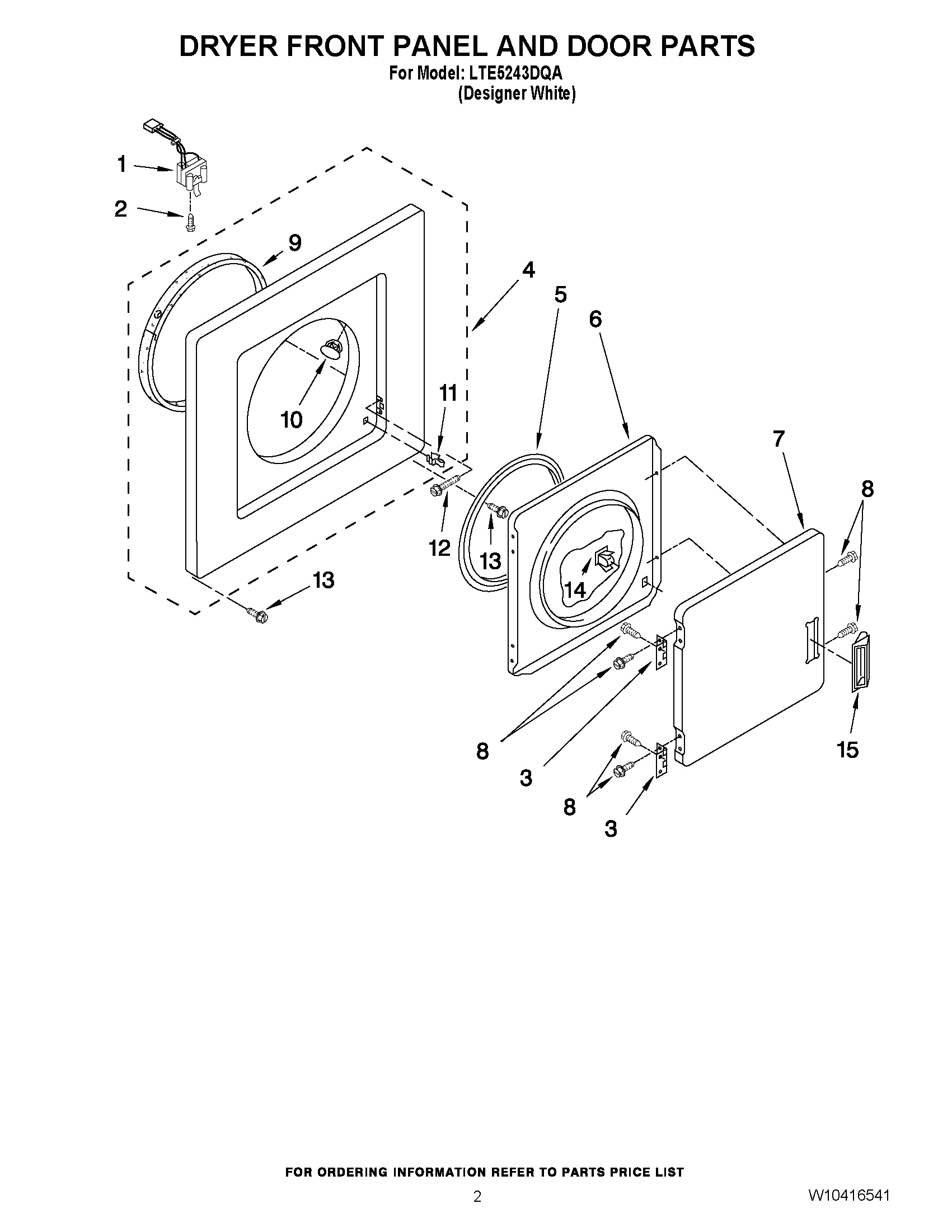

LTE5243DQA 02 – DRYER FRONT PANEL AND DOOR PARTS

LTE5243DQA 02 – DRYER FRONT PANEL AND DOOR PARTS

Written by

in

LTE5243DQA 02 – DRYER FRONT PANEL AND DOOR PARTS

Products

PositionProduct
1WP3406108 Whirlpool Door Switch
2WP3395530 Whirlpool Screw
3WP348023 Whirlpool Hinge
4285314 Whirlpool O/S1 Panel
5W11613302 Whirlpool Door Seal
6280077 Whirlpool Door
7WP348205 Whirlpool Door
8WP694091 Whirlpool Screw
9279264 Whirlpool Bearing and Seal Kit
10279220 Whirlpool Clip
11279570 Whirlpool Dryer Door Latch Kit
12SCREW
14WP3389441 Whirlpool Door Catch
15WP686711 Whirlpool Door Handle
