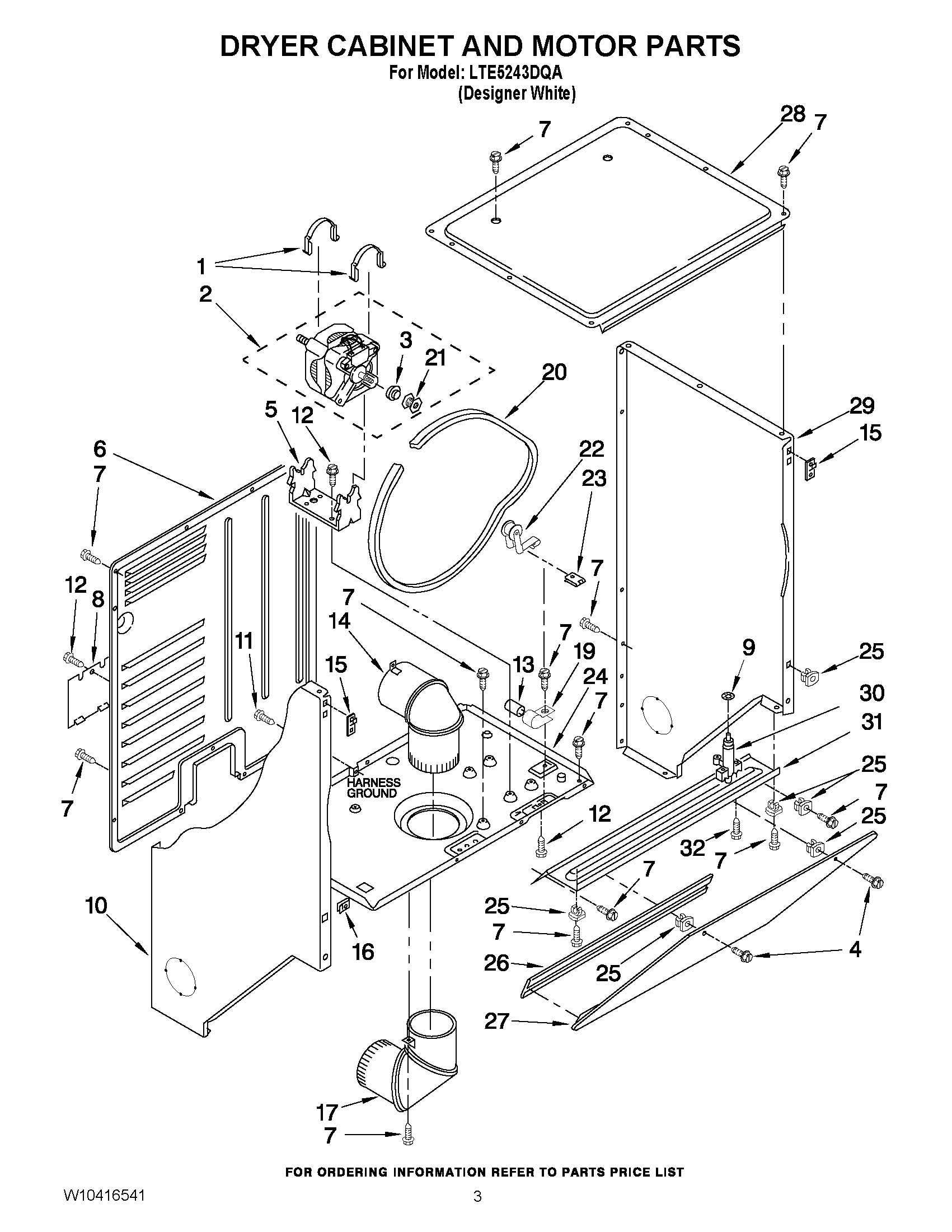

LTE5243DQA 03 – DRYER CABINET AND MOTOR PARTS

LTE5243DQA 03 – DRYER CABINET AND MOTOR PARTS

Written by

in

LTE5243DQA 03 – DRYER CABINET AND MOTOR PARTS

Products

PositionProduct
1WP660658 Whirlpool Clamp
2WPW10448901 Whirlpool Drive Motor
3WP3393657 Whirlpool Belt Retainer
4WP693304 Whirlpool Screw
5696541 Whirlpool Base
6Panel, Rear
7SCREW
8Cover, Terminal Block
9WP90296 Whirlpool Clip
10WP3402293 Whirlpool Panel Assembly
11W10850756 Whirlpool Screw
12WP3390631 Whirlpool Screw
13CAPACITOR
14Elbow, Upper
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16WP98234 Whirlpool Nut
173399603 Whirlpool Elbow
19357030 Whirlpool Clamp
203394652 Whirlpool Drum Belt
218066051 Whirlpool Motor Pulley
22WP691366 Whirlpool Dryer Idler Pulley Assembly
23WP692771 Whirlpool Nut
243399632 Whirlpool Dryer Base
25WP692400 Whirlpool Nut
26WP692926 Whirlpool Cover Appliance
27692933 Whirlpool Panel
28WP692641 Whirlpool Dryer Top Assembly
29WP3402287 Whirlpool Panel
30WP693145 Whirlpool Lid Latch
31WP692781 Whirlpool Closure Assembly
32Screw & Washer
