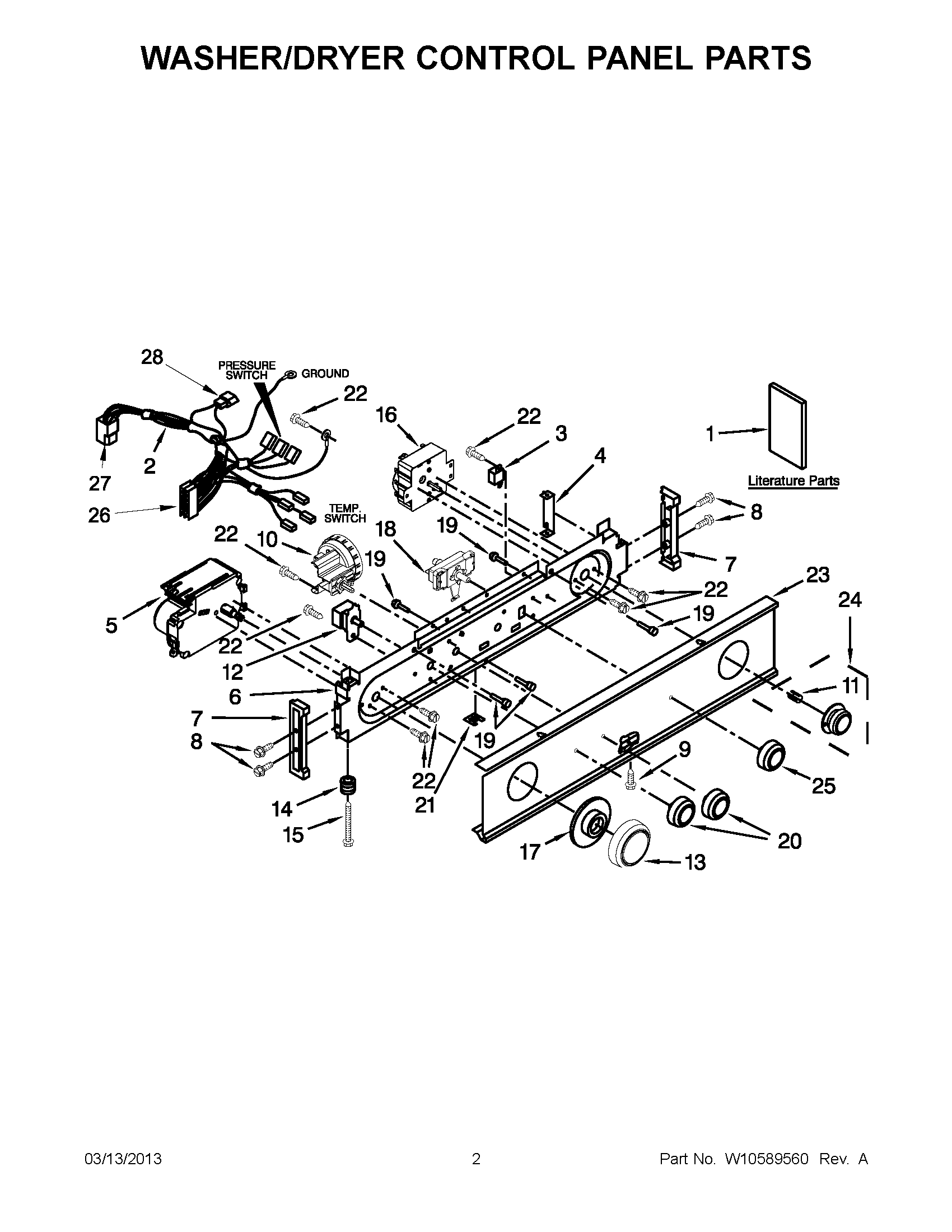

LTE5243DQB 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	WIRING DIAGRAM
1	ENERGY GUIDE
1	Sheet, Cycle Feature
1	Use & Care Guide
2	WPW10278751 Whirlpool Wire Harness
3	W10503559 Whirlpool Buzzer Adjuster
4	WP692983 Whirlpool Console Lock
5	WP3952499 Whirlpool Timer Control
6	8528153 Whirlpool Bracket Assembly
7	End Cap, Console (L.H. & R.H.)
8	NAMEPLATE
9	WP694091 Whirlpool Screw
10	WPW10231404 Whirlpool Washer Water Level Switch
11	WP688805 Whirlpool Spring Clip
12	WP8054142 Whirlpool Temperature Switch
13	W10807860 Whirlpool White Control Knob
14	WP693151 Whirlpool Lock Spring
15	WP3400860 Whirlpool Screw
16	WP3406720 Whirlpool Timer
17	WP3957841 Whirlpool Dial
18	WPW10503561 Whirlpool Push To Start Switch
20	WP3957796 Whirlpool Knob
21	694037 Whirlpool Clip
22	WP90767 Whirlpool Screw
23	Panel, Control
24	WP3957752 Whirlpool Knob
25	WP3957800 Whirlpool Knob
26	696073 Whirlpool Connector
27	Timer, Block Disconnect (White)
28	3350130 Whirlpool Connector
