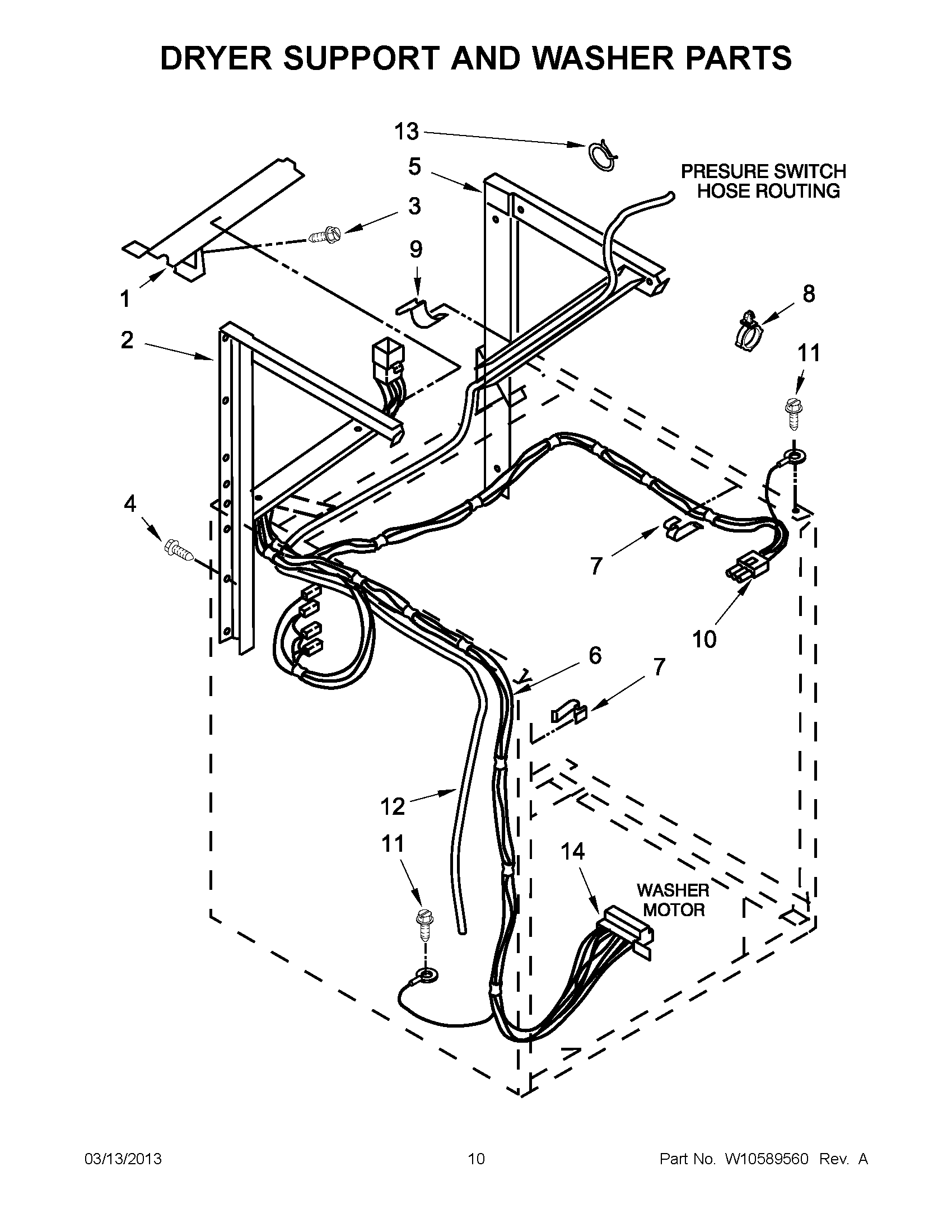

LTE5243DQB 05 – DRYER SUPPORT AND WASHER PARTS

LTE5243DQB 05 – DRYER SUPPORT AND WASHER PARTS

Written by

in

LTE5243DQB 05 – DRYER SUPPORT AND WASHER PARTS

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4W11676450 Whirlpool Screw
5W11174024 Whirlpool Support
6W10303815 Whirlpool Harness Wire
78528351 Whirlpool Clip
88559320 Whirlpool Clip
9WP90016 Whirlpool Clip
10WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
11WP3351614 Whirlpool Screw
12W10834213 Whirlpool Hose
13CLAMP-HOSE
14WP62505 Whirlpool Connector
