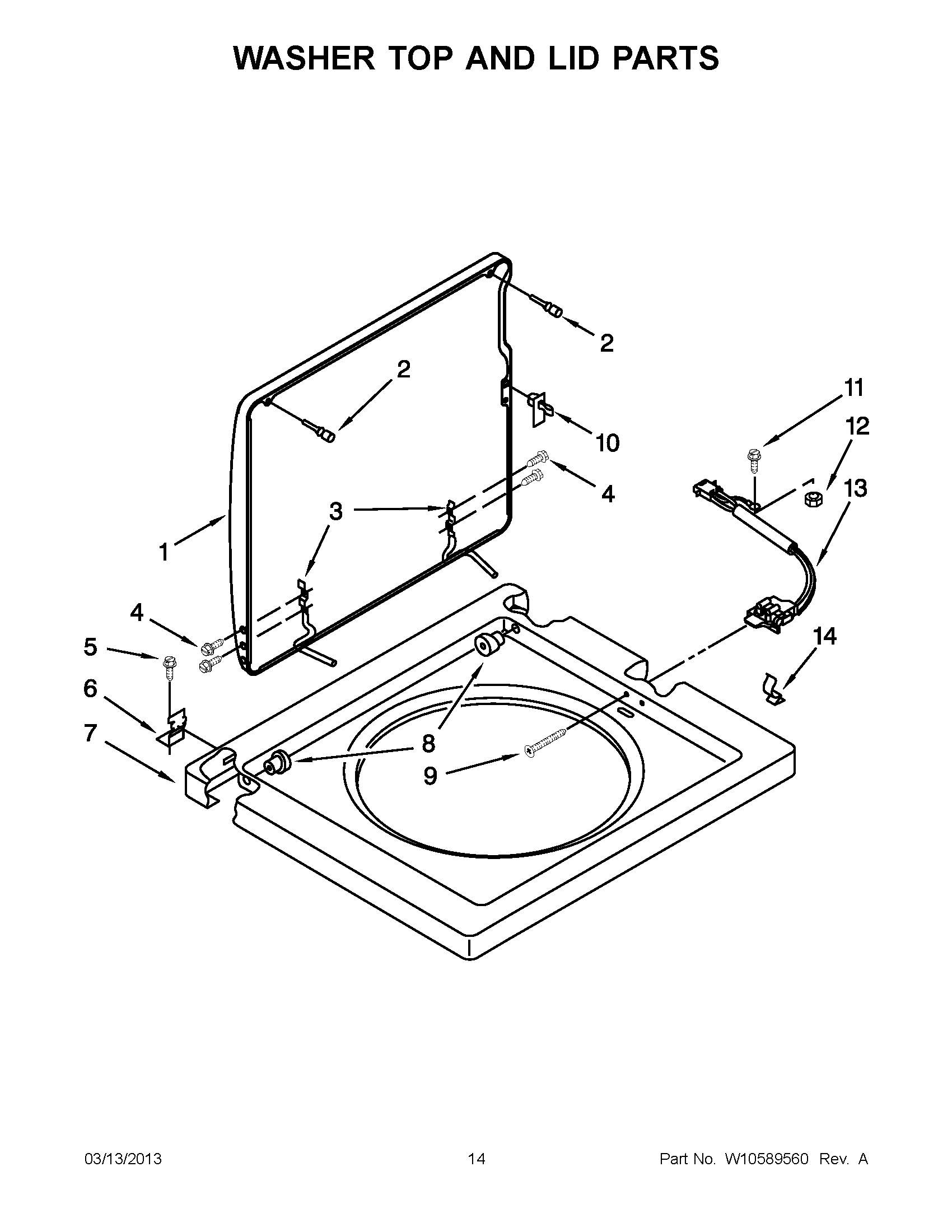

LTE5243DQB 07 – WASHER TOP AND LID PARTS

LTE5243DQB 07 – WASHER TOP AND LID PARTS

Written by

in

LTE5243DQB 07 – WASHER TOP AND LID PARTS

Products

PositionProduct
1WP3398848 Whirlpool Lid
2WP9724509 Whirlpool Bumper
3WP91770 Whirlpool Hinge
4SCREW
5SCREW
6WP692985 Whirlpool Clip Assembly
7WP384693 Whirlpool Top
8WP21258 Whirlpool Washer Lid Hinge Bearing
9WP3356311 Whirlpool Screw
10WP358684 Whirlpool Strike Assembly
11WP308544 Whirlpool Screw
12W10080180 Whirlpool Nut
13WP3355806 Whirlpool Lid Switch
14WP90016 Whirlpool Clip
