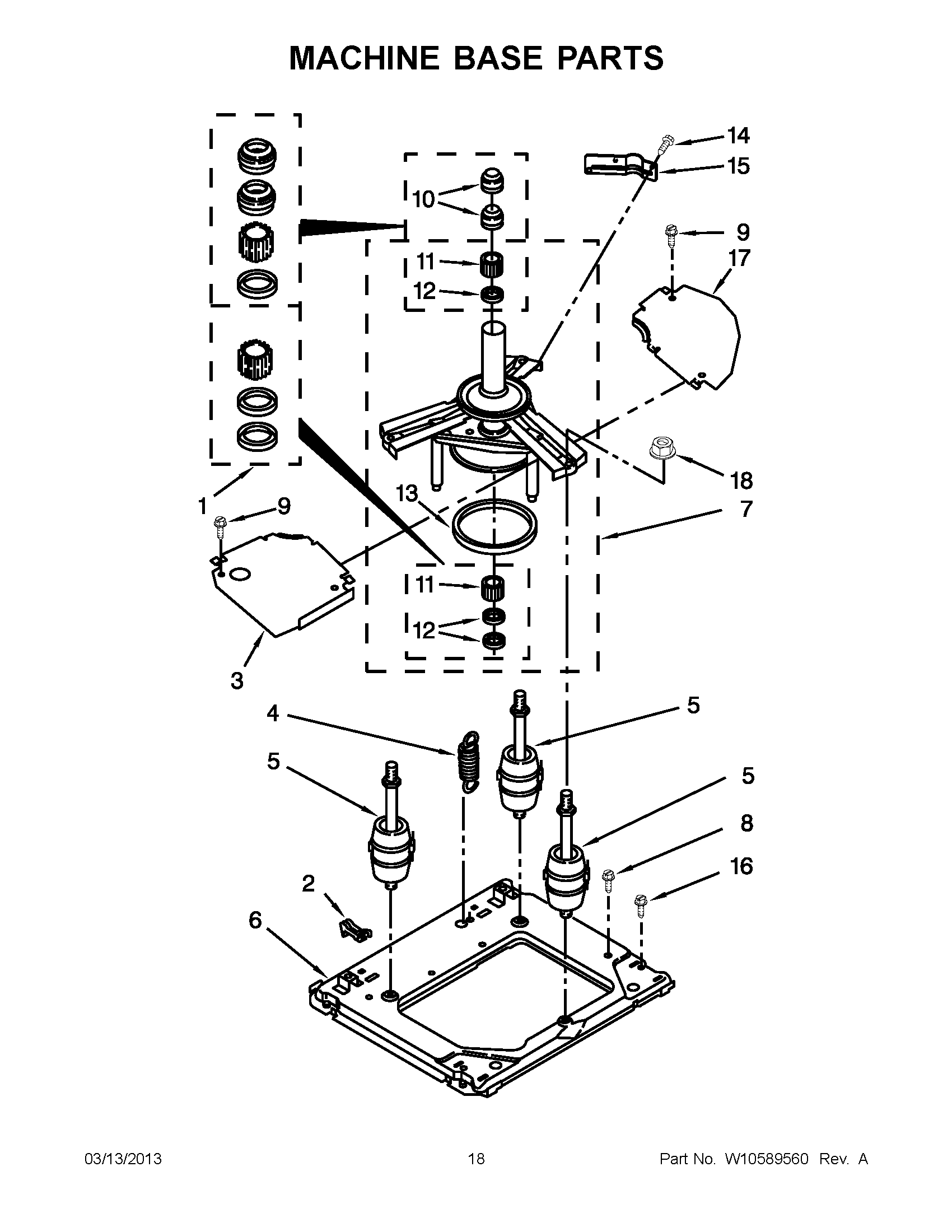

LTE5243DQB 09 – MACHINE BASE PARTS

Products

Position	Product
1	285203 Whirlpool CP Bearing
2	696044 Whirlpool Block
3	WP64137 Whirlpool Shield Assembly
4	WPW10250667 Whirlpool Washer Suspension Spring
5	W10207783 Whirlpool Washer Suspension Spring Kit (Set of 3)
6	WP8577373 Whirlpool Base Assembly
7	W10863713 Whirlpool Support
8	WP3351614 Whirlpool Screw
9	WP90767 Whirlpool Screw
10	WP8577376 Whirlpool Seal
11	WP8546455 Whirlpool Bearing
12	W11095997 Whirlpool Seal
13	WP63134 Whirlpool Ring
14	SCREW
15	63636 Whirlpool Bracket
16	386011 Whirlpool Screw
17	63637 Whirlpool Shield
18	279710 Whirlpool Nut
