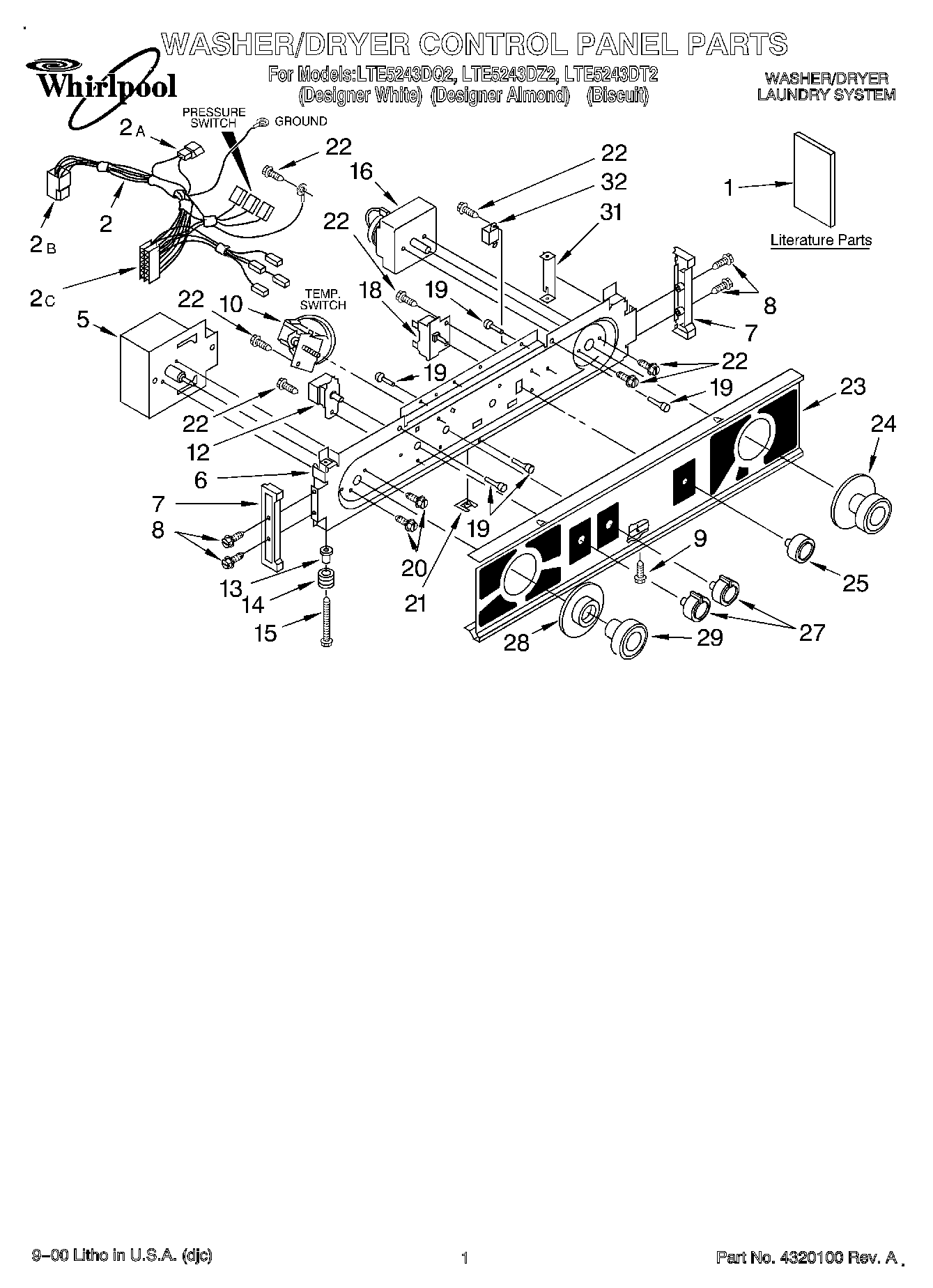

LTE5243DT2 01 – WASHER/DRYER CONTROL PANEL, LITERAT

Products

PositionProduct
1Guide, Use & Care
1Label, Wiring Diagram
1Literature Parts (Energy Guide)
1Instructions, Installation
2B696073 Whirlpool Connector
2A3350130 Whirlpool Connector
2WP3406288 Whirlpool Wire Harness
2CTimer, Block Disconnect (White)
5WP3952499 Whirlpool Timer Control
68528153 Whirlpool Bracket Assembly
7End Cap, Console (L.H. & R.H.)
8NAMEPLATE
9WP694091 Whirlpool Screw
10WP3362987 Whirlpool Washer Water Level Switch
12WP8054142 Whirlpool Temperature Switch
13693711 Whirlpool Sleeve
14WP693151 Whirlpool Lock Spring
15WP3400860 Whirlpool Screw
16WP3406720 Whirlpool Timer
18WP3395382 Whirlpool Push To Start Switch
19693152 Whirlpool Bumper
20WP356418 Whirlpool Screw
21694037 Whirlpool Clip
22WPW10139210 Whirlpool Screw
23Panel, Control
23Panel, Control (Almond)
23Panel, Control (Biscuit)
243957753 Whirlpool Knob
24WP3957752 Whirlpool Knob
25WP3957800 Whirlpool Knob
253978871 Whirlpool Knob
273957797 Whirlpool Knob
27WP3957796 Whirlpool Knob
28Dial, Timer (Washer) (Biscuit)
28Dial, Timer (Almond)
28WP3957841 Whirlpool Dial
29W10807860 Whirlpool White Control Knob
29WP3957823 Whirlpool Knob
29WP3957822 Whirlpool Knob
31WP692983 Whirlpool Console Lock
32WP694419 Whirlpool Buzzer Adjuster
