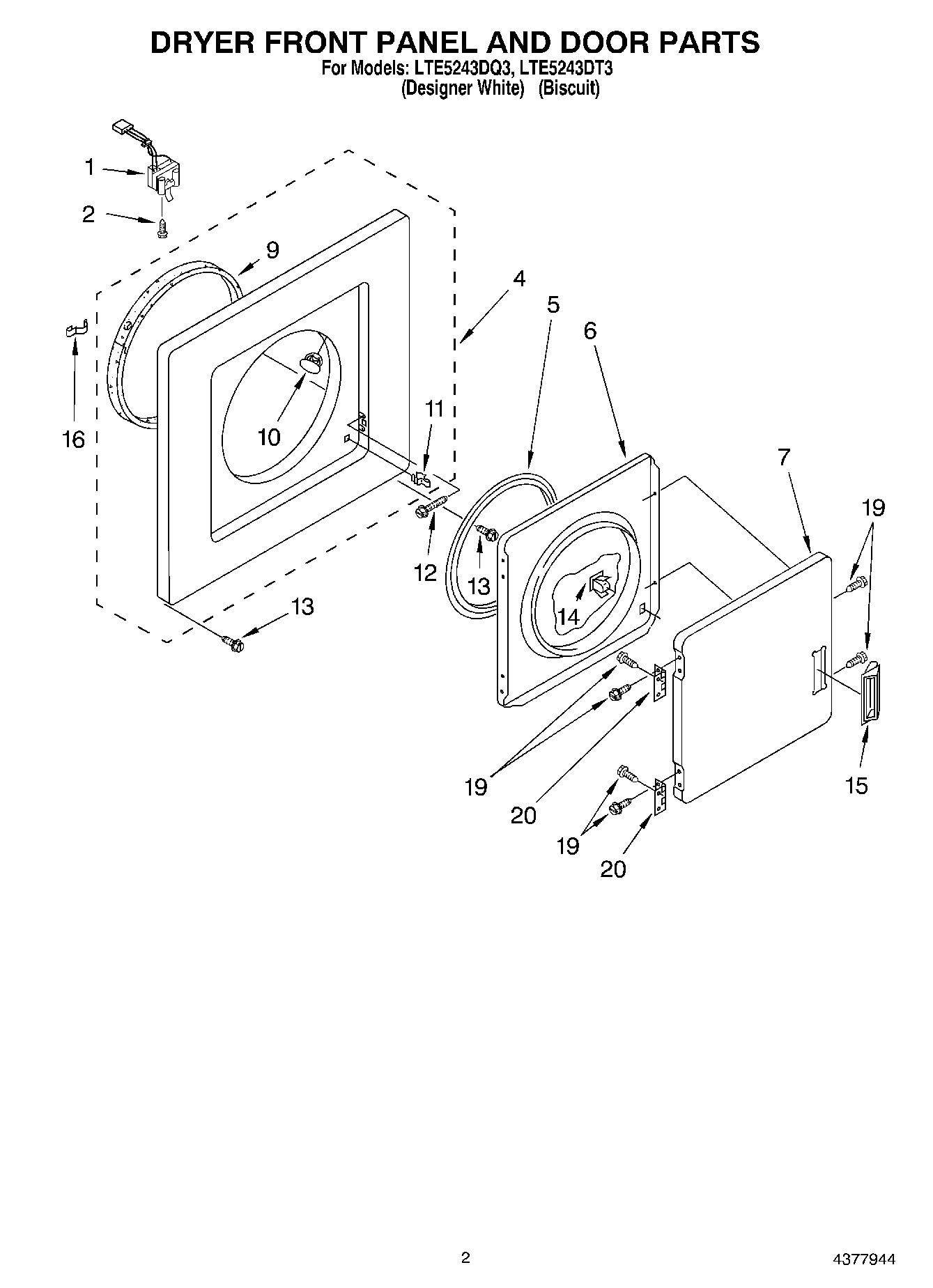

LTE5243DT3 02 – DRYER FRONT PANEL AND DOOR

LTE5243DT3 02 – DRYER FRONT PANEL AND DOOR

Written by

in

LTE5243DT3 02 – DRYER FRONT PANEL AND DOOR

Products

PositionProduct
1WP3406108 Whirlpool Door Switch
2WP3395530 Whirlpool Screw
4285314 Whirlpool O/S1 Panel
4Panel, Front (Biscuit)
5W11613302 Whirlpool Door Seal
6280077 Whirlpool Door
73978598 Whirlpool Door
7WP348205 Whirlpool Door
9279264 Whirlpool Bearing and Seal Kit
10279220 Whirlpool Clip
11279570 Whirlpool Dryer Door Latch Kit
12SCREW
14WP3389441 Whirlpool Door Catch
153978592 Whirlpool Handle
15WP686711 Whirlpool Door Handle
16Support Protector
19WP694091 Whirlpool Screw
20WP348023 Whirlpool Hinge
