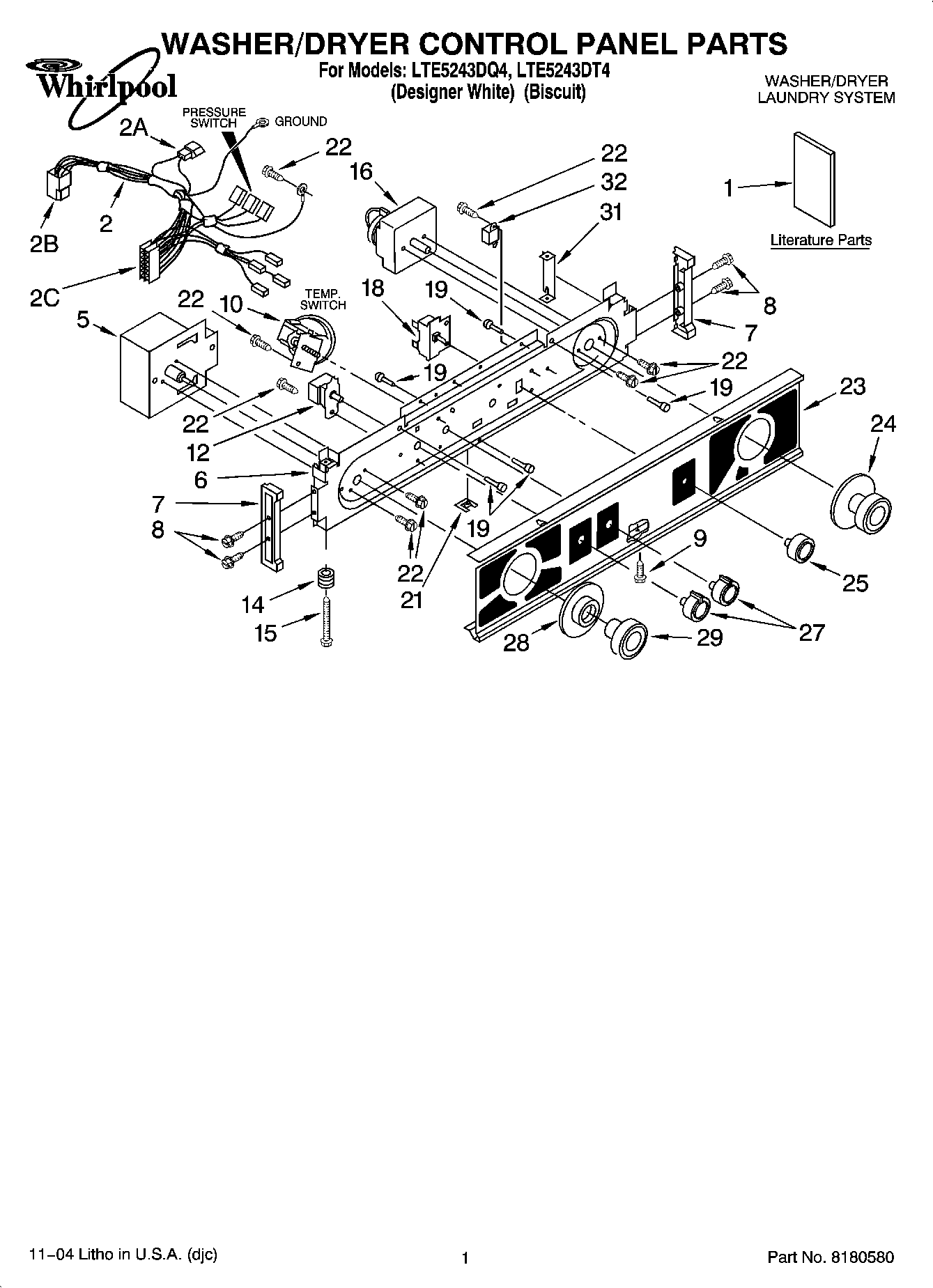

LTE5243DT4 01 – WASHER/DRYER CONTROL PANEL PARTS

LTE5243DT4 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

LTE5243DT4 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1Wiring Diagram
1Use & Care Guide
1Sheet, Cycle Feature
1Installation Instructions
1Energy Guide
2696073 Whirlpool Connector
2Timer, Block Disconnect (White)
23350130 Whirlpool Connector
2WP3406288 Whirlpool Wire Harness
5WP3952499 Whirlpool Timer Control
68528153 Whirlpool Bracket Assembly
7End Cap, Console (L.H. & R.H.)
73978584 Whirlpool End Cap
8NAMEPLATE
9WP694091 Whirlpool Screw
10WP3362987 Whirlpool Washer Water Level Switch
12WP8054142 Whirlpool Temperature Switch
14WP693151 Whirlpool Lock Spring
15WP3400860 Whirlpool Screw
16WP3406720 Whirlpool Timer
18WP3977456 Whirlpool Start Switch
19693152 Whirlpool Bumper
21694037 Whirlpool Clip
22WPW10139210 Whirlpool Screw
23Panel, Control
23Panel, Control (Biscuit)
24WP3957752 Whirlpool Knob
243957753 Whirlpool Knob
253978871 Whirlpool Knob
25WP3957800 Whirlpool Knob
273957797 Whirlpool Knob
27WP3957796 Whirlpool Knob
28Dial, Timer (Washer) (Biscuit)
28WP3957841 Whirlpool Dial
29WP3957822 Whirlpool Knob
29W10807860 Whirlpool White Control Knob
31WP692983 Whirlpool Console Lock
32WP694419 Whirlpool Buzzer Adjuster
