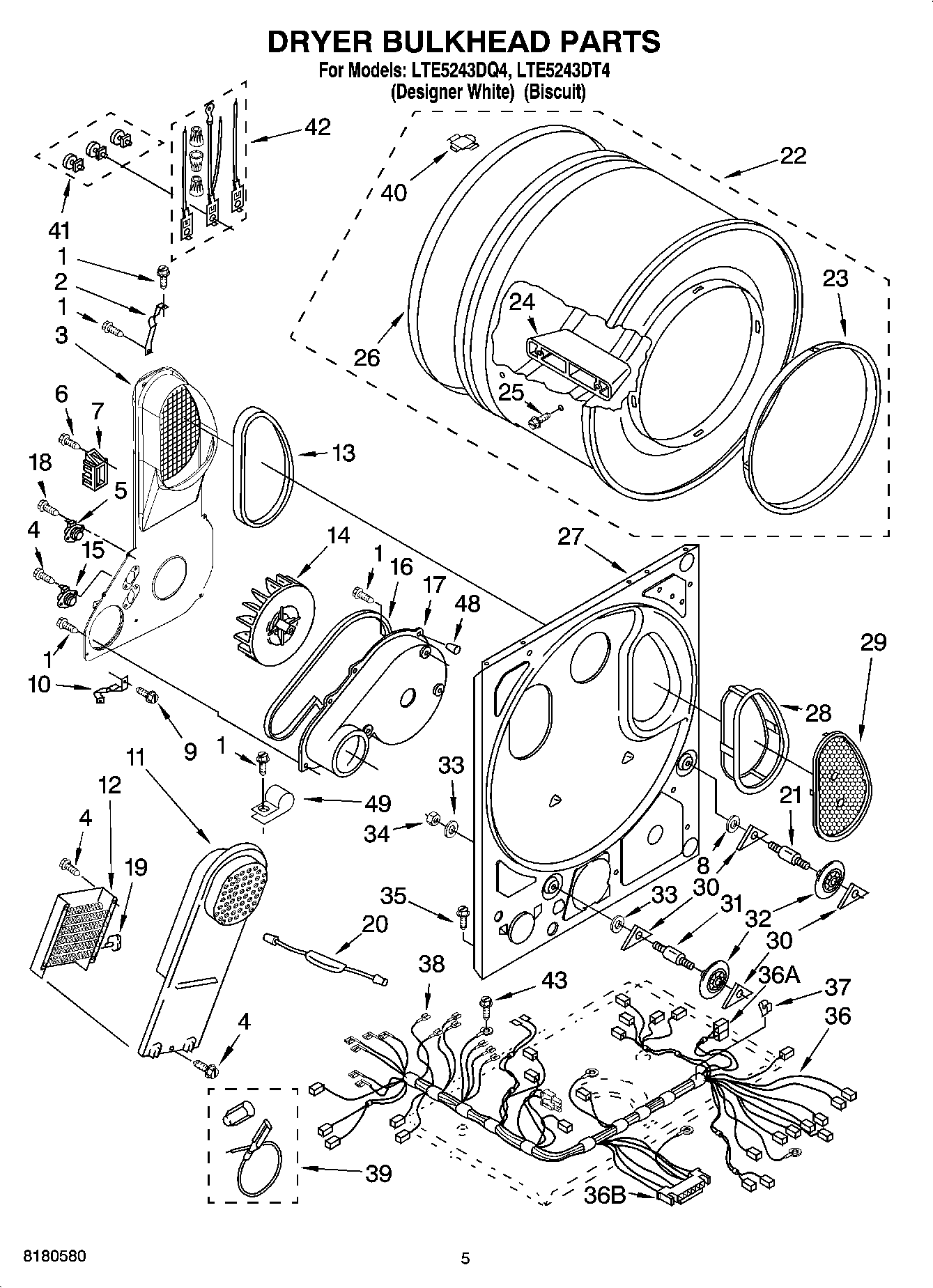

LTE5243DT4 04 – DRYER BULKHEAD PARTS

Products

Position	Product
1	SCREW
2	345396 Whirlpool Clip
3	Air Duct & Bracket
4	WP90767 Whirlpool Screw
5	THRMST-FIX
6	WP308685 Whirlpool Microwave Screw
7	WP3397659 Whirlpool Terminal Block
8	WP3388703 Whirlpool Washer
9	WP489463 Whirlpool Refrigerator Screw
10	279771 Whirlpool Clip
11	WP3401380 Whirlpool Box
12	WP279843 Whirlpool Heating Element
13	SEAL
14	WP696426 Whirlpool Wheel
15	WP3403607 Whirlpool Thermoprotector
16	8066094 Whirlpool Seal
17	WP696418 Whirlpool Fan Scroll
18	WP488729 Whirlpool Refrigerator Door Screw
19	THRMST-FIX
20	279872 Whirlpool Resistor
21	SHAFT SUPPORT ROLLER DRYER
22	3391834 Whirlpool Drum
23	WP3394508 Whirlpool Bearing Ring
24	685207 Whirlpool Dryer Baffle
25	WPW10109200 Whirlpool Screw
26	SEAL
27	279848 Whirlpool Bulkhead
28	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31	SHAFT SUPPORT ROLLER DRYER
32	349241T Whirlpool Dryer Drum Support Roller Kit
33	WP348197 Whirlpool Washer Assembly
34	WP3359452 Whirlpool Nut
35	WP3390631 Whirlpool Screw
36B	3395683 Whirlpool Connector
36A	Receptacle, Latching (2-Way) (Uses Terminal 94614)
36	8576537 Whirlpool Wire Harness
37	CLIP
38	WP94614 Whirlpool Terminal
39	279457 Whirlpool Dryer Heating Element Wide Spade Connection
40	8066086 Whirlpool Plug
41	279393 Whirlpool Terminal Block Screw and Nut Kit
42	279318 Whirlpool Terminal
43	W10850756 Whirlpool Screw
48	W10491983 Whirlpool Tine Tip
49	488946 Whirlpool Air Conditioner Clamp
