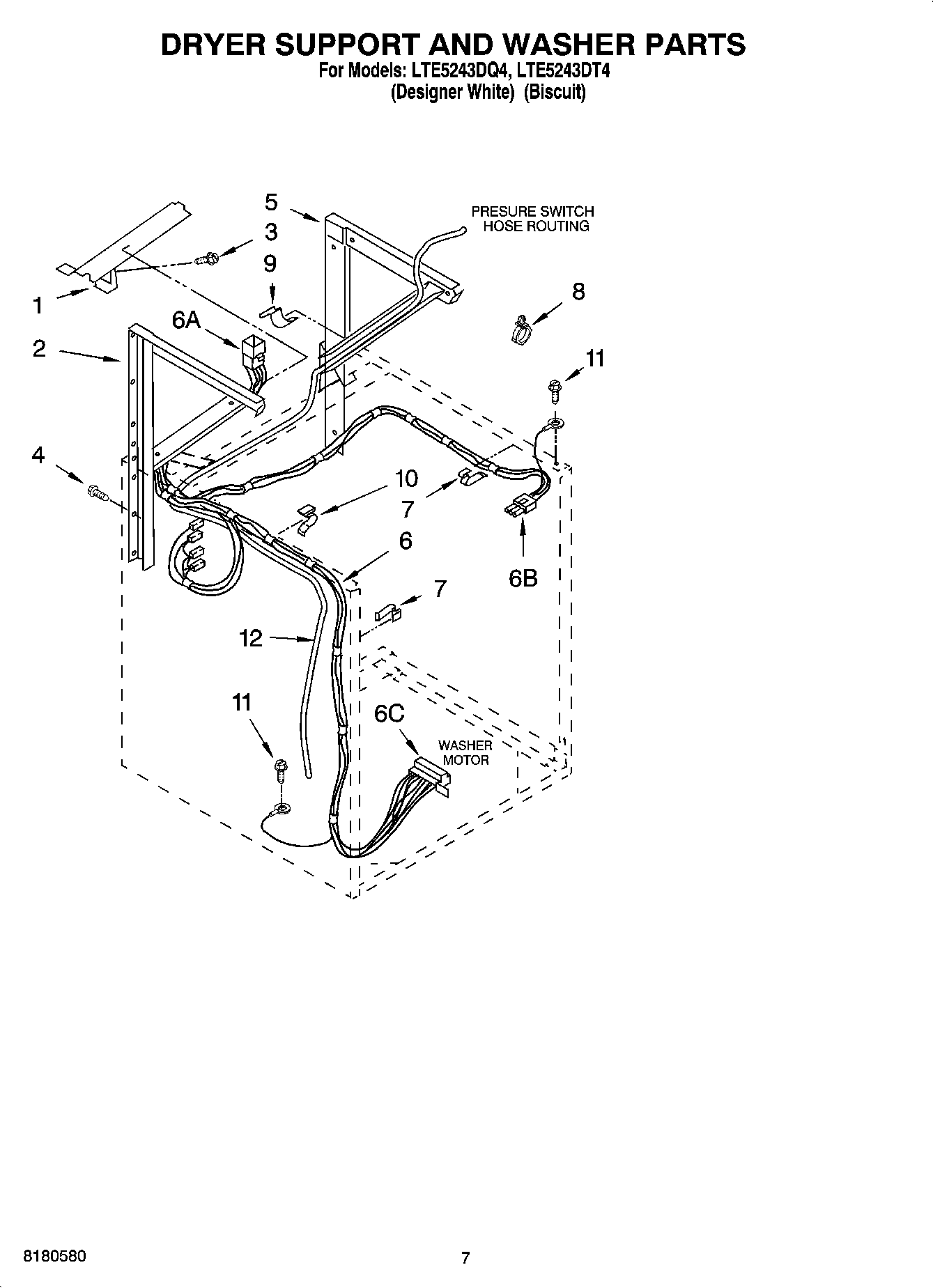

LTE5243DT4 05 – DRYER SUPPORT AND WASHER PARTS

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4W11676450 Whirlpool Screw
5W11174024 Whirlpool Support
6Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
6APlug, Terminal (12-Way) (Connects With Automatic Console Harness)
6BWP62889 Whirlpool Washer Lid Switch Terminal Receptacle
6CWP62505 Whirlpool Connector
78528351 Whirlpool Clip
88559320 Whirlpool Clip
9WP90016 Whirlpool Clip
10CLIP
11WP3351614 Whirlpool Screw
12WP353244 Whirlpool Hose
