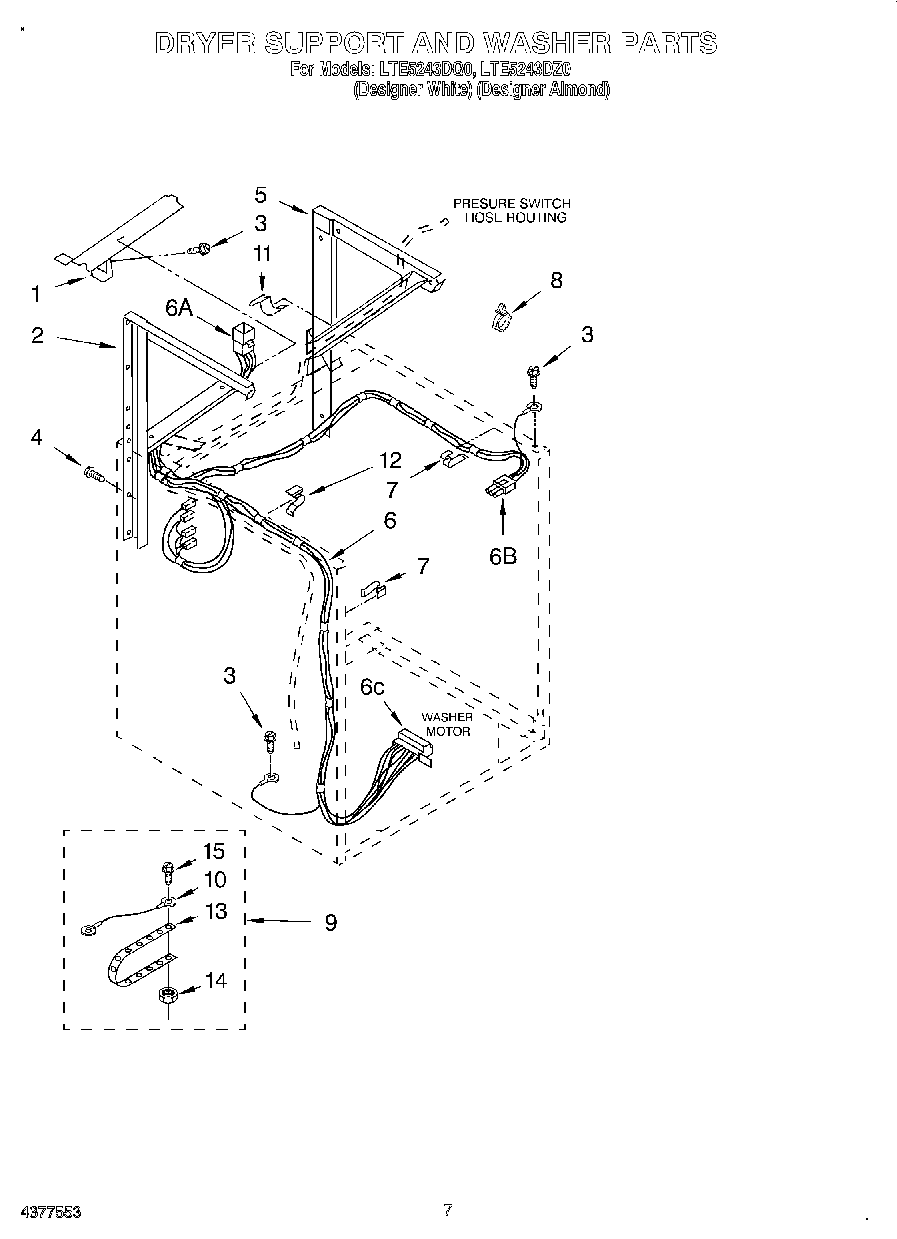

LTE5243DZ0 05 – DRYER SUPPORT AND WASHER

LTE5243DZ0 05 – DRYER SUPPORT AND WASHER

Written by

in

LTE5243DZ0 05 – DRYER SUPPORT AND WASHER

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4W11676450 Whirlpool Screw
5W11174024 Whirlpool Support
6Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
6CWP62505 Whirlpool Connector
6BWP62889 Whirlpool Washer Lid Switch Terminal Receptacle
6APlug, Terminal (12-Way) (Connects With Automatic Console Harness)
78528351 Whirlpool Clip
88559320 Whirlpool Clip
9KIT, GROUNDING
10WPL 685449
11WP90016 Whirlpool Clip
12CLIP
13Strap, Ground
14W10080180 Whirlpool Nut
15Screw, Ground (10-24 x 1)
