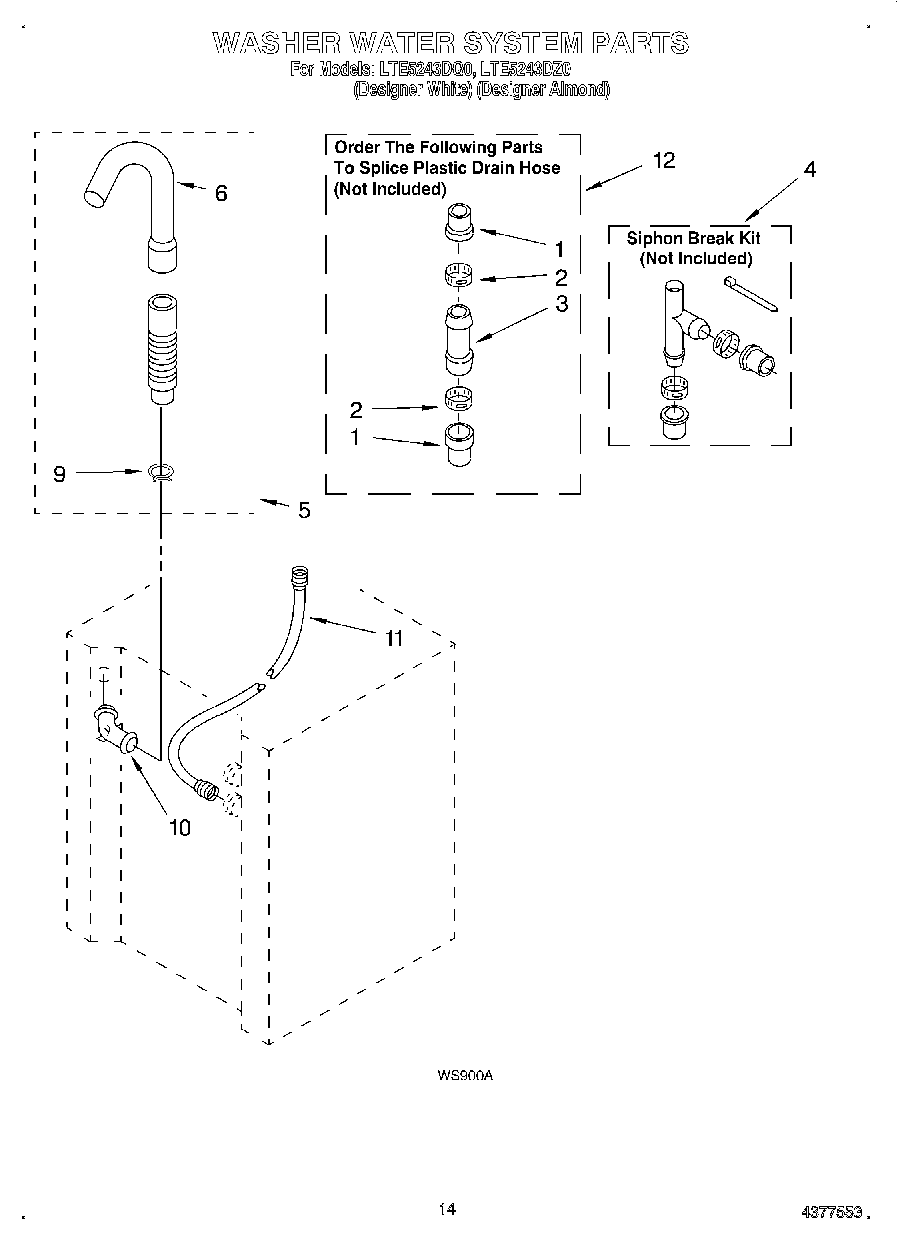

LTE5243DZ0 11 – WASHER WATER SYSTEM

Products

Position	Product
1	285321 Whirlpool Sleeve
2	WP285655 Whirlpool Hose Clamp
3	WP16272 Whirlpool Hose Coupling
4	285320 Whirlpool Washer Siphon Break Kit
5	285664 Whirlpool Drain Hose
5	285666 Whirlpool Drain Hose 10'
6	WP3357027 Whirlpool Nozzle Assembly
9	WP3357331 Whirlpool Clamp
10	W11213338 Whirlpool Connector
11	WP89503 Whirlpool Washer Fill Hose
12	285442 Whirlpool Coupling
