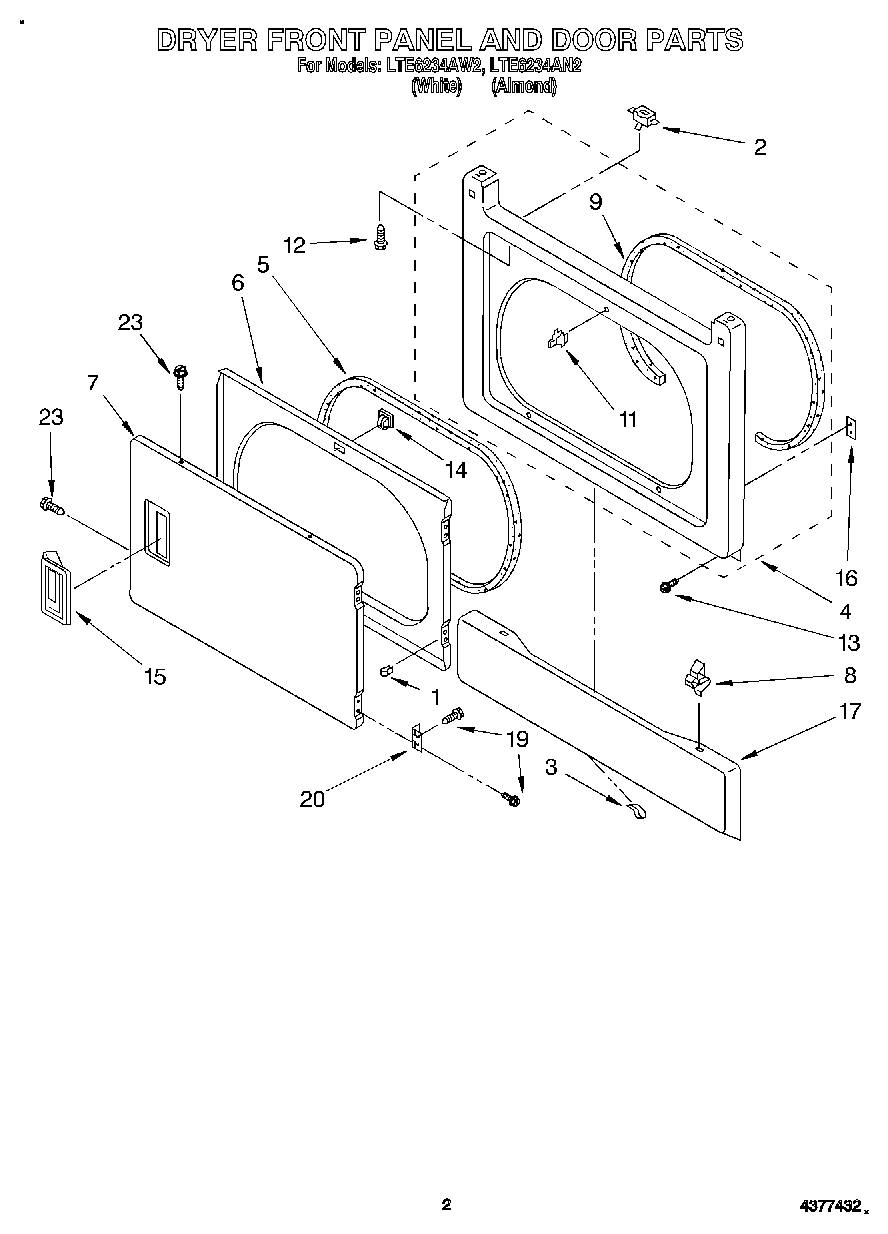

LTE6234AN2 02 – DRYER FRONT PANEL AND DOOR

Products

Position	Product
1	Nut, ``U`` (4)
2	WP3391902 Whirlpool Lid Switch
3	WP98234 Whirlpool Nut
4	279718 Whirlpool Panel
4	Panel, Front (Almond)
5	WP3390735 Whirlpool Door Seal
6	280083 Whirlpool Rear Door
7	W11663440 Whirlpool Door
7	Door, Front (Almond)
8	WP3388229 Whirlpool Dryer Spring Clip
9	WP3387242 Whirlpool Seal
12	WP3395530 Whirlpool Screw
13	WP308685 Whirlpool Microwave Screw
14	279570 Whirlpool Dryer Door Latch Kit
15	3389522 Whirlpool Handle
15	WPL 3389523
16	WP3390902 Whirlpool Clip
17	3388958 Whirlpool Panel
17	Panel, Toe (Almond)
19	WP488627 Whirlpool Refrigerator Screw
20	W11175815 Whirlpool Hinge
23	WP694091 Whirlpool Screw
