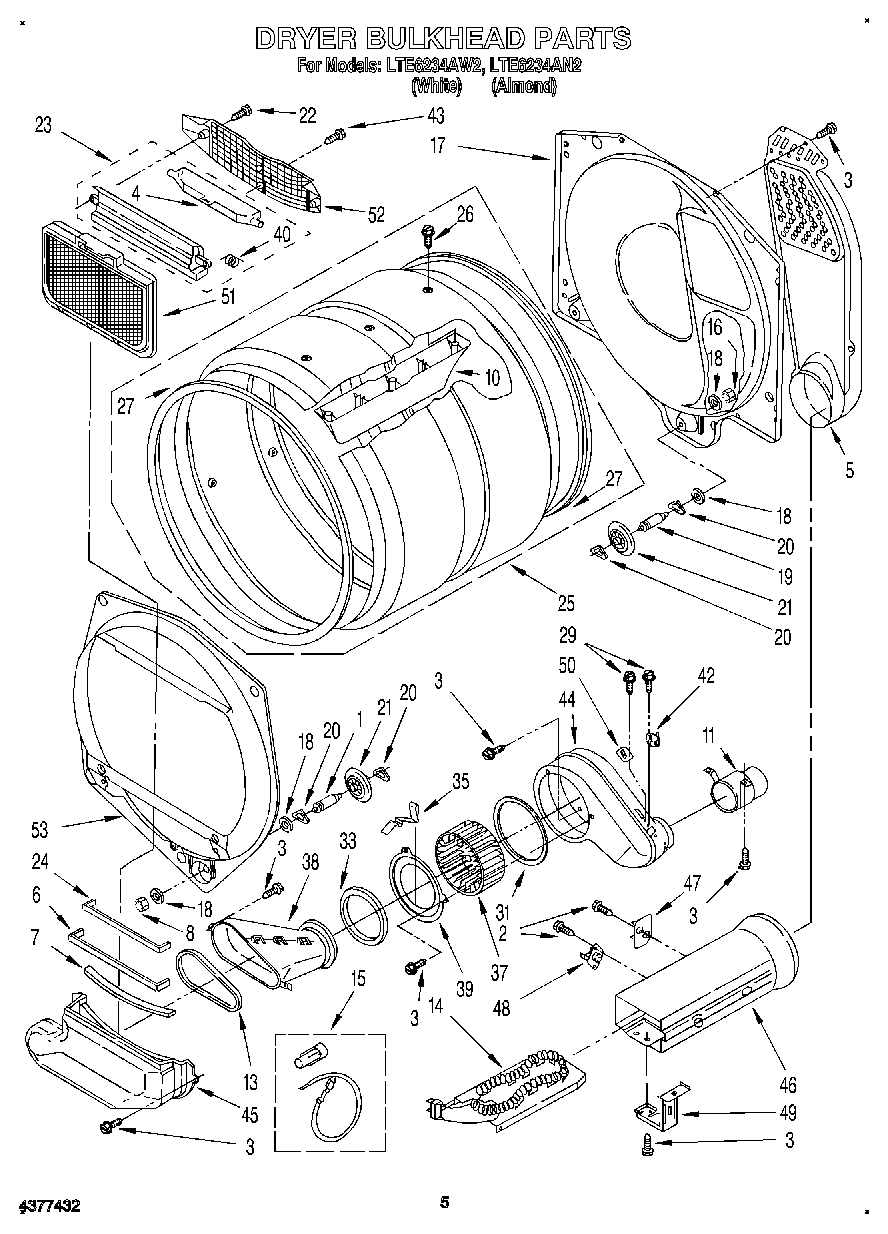

LTE6234AN2 04 – DRYER BULKHEAD

Products

PositionProduct
1SHAFT
2WP90767 Whirlpool Screw
3SCREW
4W11222846 Whirlpool Door
5WP3387911 Whirlpool Air Duct
6WP697813 Whirlpool Seal
7WP3391906 Whirlpool Seal
8WP3359452 Whirlpool Nut
10279982 Whirlpool Drum Baffle
11279823 Whirlpool Exhaust Pipe
13WP697770 Whirlpool Blower Cover Plate Seal
14ELEMENT
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16Nut, 3/8-16 (L.H.)
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21349241T Whirlpool Dryer Drum Support Roller Kit
22WP3387230 Whirlpool Screw
23W11129408 Whirlpool Out Housing
25W10518375 Whirlpool Drum Assembly
26Screw
27280114 Whirlpool Dryer Drum Seal
29WPW10139210 Whirlpool Screw
33WP8566209 Whirlpool Seal
353390935 Whirlpool Clip
37WP697772 Whirlpool Dryer Blower Wheel
38279704 Whirlpool Duct Assembly
39279780 Whirlpool Plate Cover
40WP3394986 Whirlpool Spring
42WP3387134 Whirlpool Dryer Cycling Thermostat
43WP488729 Whirlpool Refrigerator Door Screw
44WP8544363 Whirlpool Housing
45279700 Whirlpool Duct Lint
46W10802681 Whirlpool Box Assembly
47279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
48WP3390291 Whirlpool High Limit Thermostat
493389648 Whirlpool Bracket Assembly
50WP3403607 Whirlpool Thermoprotector
51WP3389644 Whirlpool Screen Assembly
52Grill, Outlet
53WP697557 Whirlpool Bulkhead Assembly
