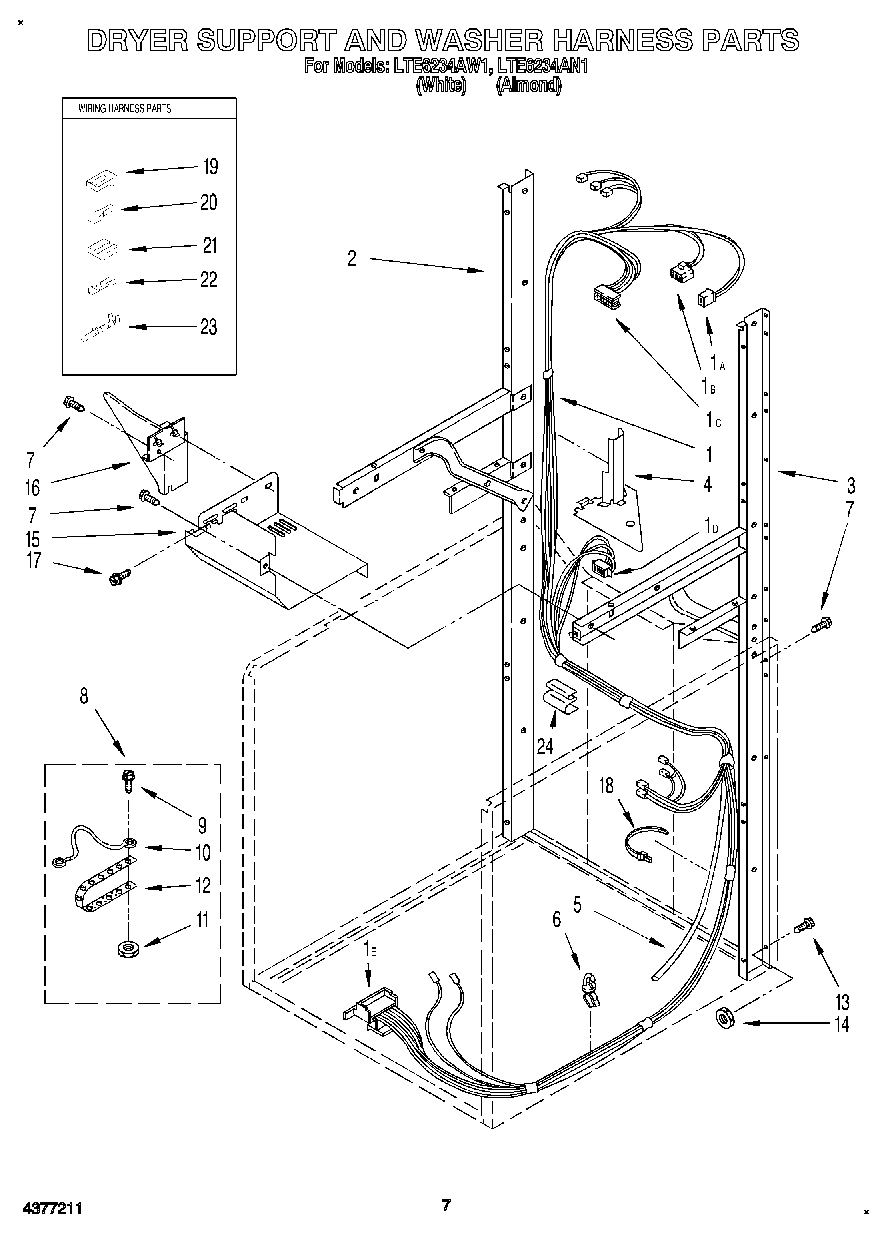

LTE6234AW1 05 – DRYER SUPPORT AND WASHER HARNESS

Products

Position	Product
1	Harness – Washer
1D	Receptacle, 3 Way
1A	3350130 Whirlpool Connector
1B	Block, Disconnect
1C	W10876590 Whirlpool Connector
1E	WP62505 Whirlpool Connector
2	3388851 Whirlpool Support
3	3388850 Whirlpool Support
4	3390609 Whirlpool Shield
5	W10834213 Whirlpool Hose
6	Clip, Harness
7	SCREW
8	KIT, GROUNDING
9	Screw, Ground (10-24 x 1)
10	WPL 685449
11	W10080180 Whirlpool Nut
12	Strap, Ground
13	Screw, 5/16-18 x 1/2 (2)
14	Nut, Hex (4)
15	W11108181 Whirlpool Shield Assembly
16	Shield, Thermostat
17	WP308685 Whirlpool Microwave Screw
18	Tie, Cable
19	Insulator, Terminal
20	WP285432 Whirlpool Terminal
21	Connector Block (Alternate)
22	Terminal, Female
23	WP596797 Whirlpool Terminal
23	WP94614 Whirlpool Terminal
24	Protector, Harness
