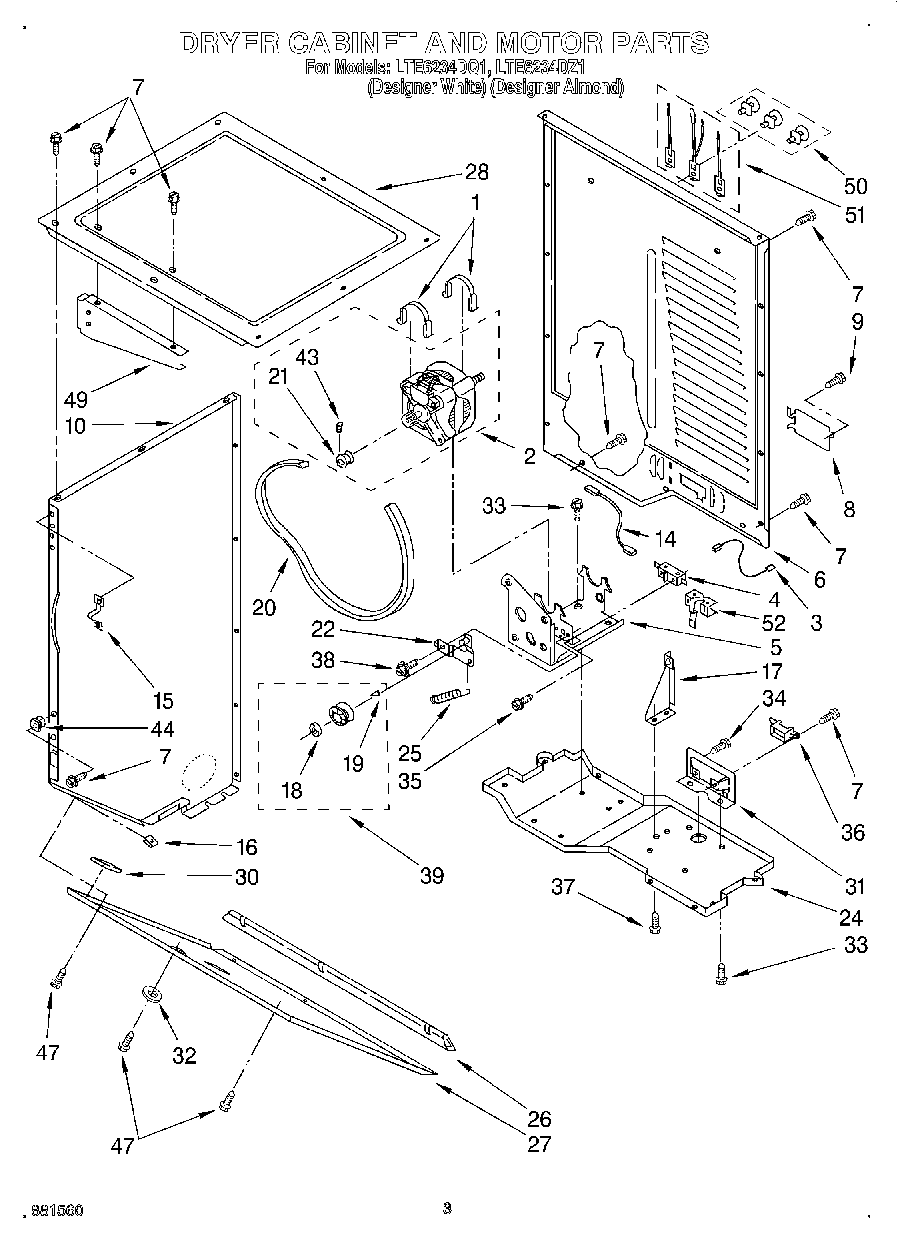

LTE6234DQ1 03 – DRYER CABINET AND MOTOR

Products

Position	Product
1	WP660658 Whirlpool Clamp
3	3398948 Whirlpool Wire
4	279782 Whirlpool Lid Switch
5	W11107903 Whirlpool Bracket
6	Panel, Rear
7	SCREW
8	279814 Whirlpool Cover
9	W10850756 Whirlpool Screw
10	3389264 Whirlpool Panel Assembly
10	3389256 Whirlpool Panel
10	Panel, Side (Almond (R.H.))
10	Panel, Side (Almond (L.H.))
14	Wire, Belt Switch
15	3389231 Whirlpool Clip Front Panel
16	WP98234 Whirlpool Nut
17	3391639 Whirlpool Bracket Assembly
18	WPW10121334 Whirlpool Washer
19	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20	661570V Whirlpool Dryer Drum Belt
21	279811 Whirlpool Dryer Drive Motor
22	WPW10547294 Whirlpool Idler Pulley
24	Base, Dryer
25	WPW10446781 Whirlpool Spring
26	3389683 Whirlpool Cover Assembly
27	3389272 Whirlpool Panel
27	Panel, Transition (Almond)
28	Top, Dryer
30	3389682 Whirlpool Spacer
31	3393721 Whirlpool Bracket
32	WP3389431 Whirlpool Bumper Assembly
32	Bumper, Lid Stop (Almond)
34	WP273556 Whirlpool Screw
35	WP98129 Whirlpool Screw
36	WP3397659 Whirlpool Terminal Block
37	WP3390631 Whirlpool Screw
38	WP3389420 Whirlpool Screw
39	279640 Whirlpool Dryer Idler Pulley Kit
43	Screw, Set
44	WP692400 Whirlpool Nut
47	WP693304 Whirlpool Screw
49	3390722 Whirlpool Shield Assembly
50	279393 Whirlpool Terminal Block Screw and Nut Kit
51	279318 Whirlpool Terminal
52	WP8066120 Whirlpool Lever Assembly
