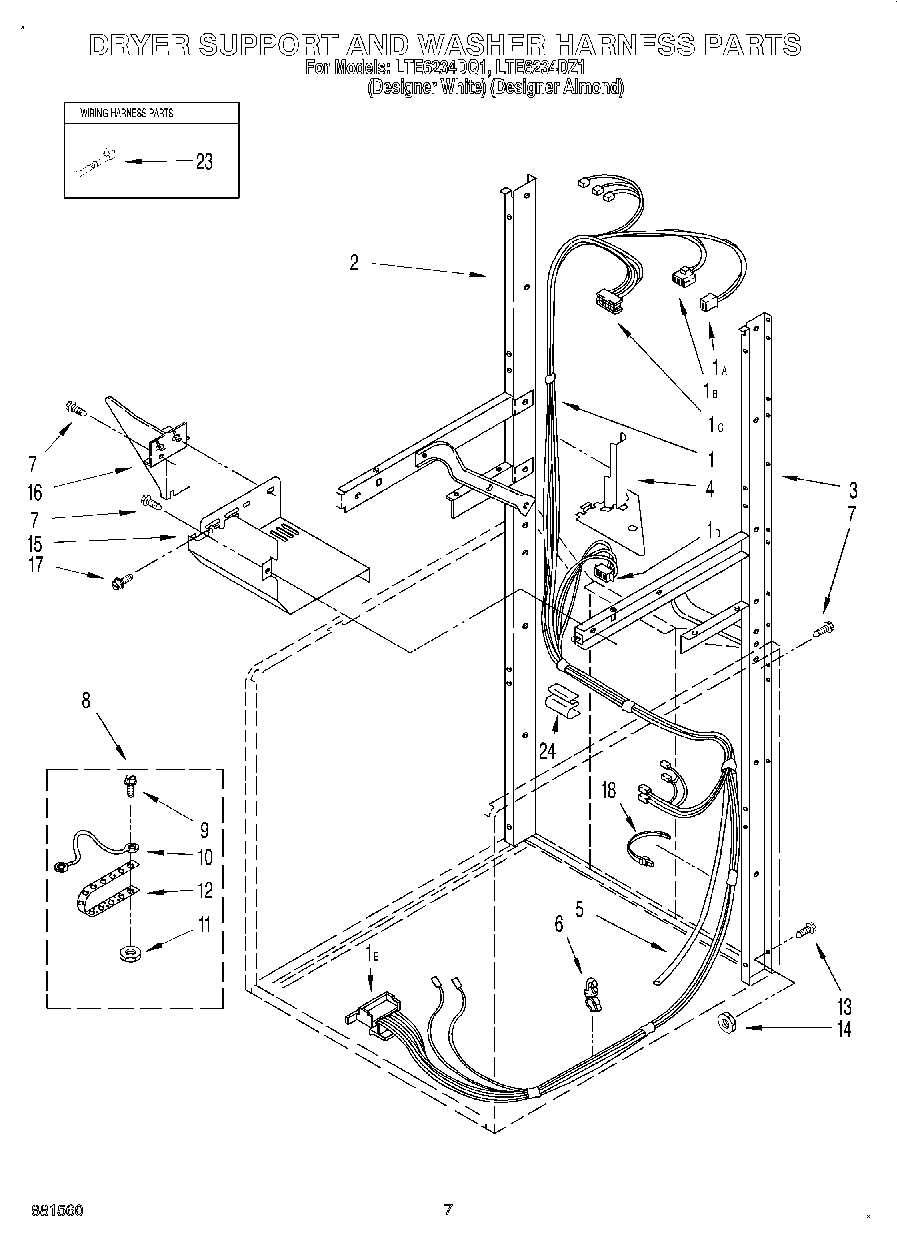

LTE6234DQ1 05 – DRYER SUPPORT AND WASHER HARNESS

Products

Position	Product
1a	3350130 Whirlpool Connector
1	Harness – Washer
1b	Block, Disconnect
1c	W10876590 Whirlpool Connector
1e	WP62505 Whirlpool Connector
1d	Receptacle, 3 Way
2	3388851 Whirlpool Support
3	3388850 Whirlpool Support
4	3390609 Whirlpool Shield
5	W10834213 Whirlpool Hose
6	Clip, Harness
7	SCREW
8	KIT, GROUNDING
9	Screw, 10-24 x 1
10	WPL 685449
11	W10080180 Whirlpool Nut
12	Strap, Ground
13	Bolt, 5/16-18 x 1/2
14	Nut, Hex (4)
15	W11108181 Whirlpool Shield Assembly
16	Shield, Thermostat
17	WP308685 Whirlpool Microwave Screw
18	Tie, Cable
23	WP596797 Whirlpool Terminal
23	WP94614 Whirlpool Terminal
24	Protector, Harness
