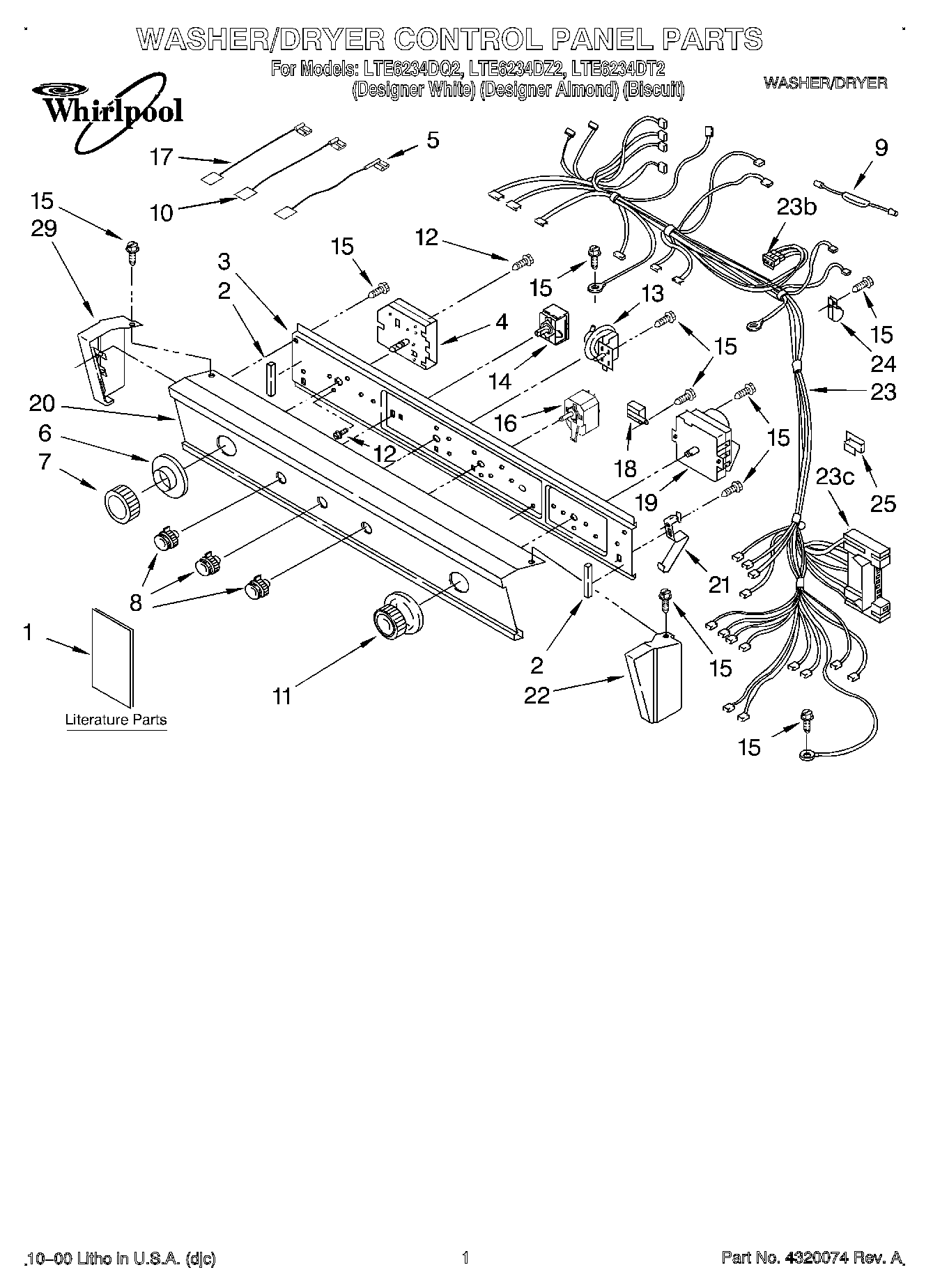

LTE6234DQ2 01 – WASHER/DRYER CONTROL PANEL, LITERATadmin2025-04-26T12:19:54+00:00LTE6234DQ2 01 – WASHER/DRYER CONTROL PANEL, LITERAT
Products
| Position | Product |
|---|
| 1 | Guide, Use And Care |
| 1 | LITERATURE PARTS |
| 1 | Literature Parts (Arabic Use & Care Guide) |
| 1 | Literature Parts (Arabic) |
| 1 | WPL LIT3954144 |
| 1 | Literature Parts (Installation Instructions) (English) |
| 1 | Literature Parts (Use & Care Guide) (Wire Diagram) |
| 2 | 3390688 Whirlpool Bumper Assembly |
| 3 | Bracket, Control (Includes Illus. 2) |
| 4 | WP3948357 Whirlpool Timer Assembly |
| 5 | Wire, Jumper (Black) |
| 6 | Dial (Washer) |
| 6 | Dial (Washer) (Almond) |
| 6 | Dial, Timer (Washer) (Biscuit) |
| 7 | WP3364293 Whirlpool Timer Knob |
| 8 | 3957797 Whirlpool Knob |
| 8 | WP3957796 Whirlpool Knob |
| 9 | 279872 Whirlpool Resistor |
| 10 | Wire, Jumper (Black) |
| 11 | WP3957751 Whirlpool Knob |
| 11 | WP3957750 Whirlpool Knob |
| 12 | WP356418 Whirlpool Screw |
| 13 | WP3952466 Whirlpool Washer Water Level Switch |
| 14 | Switch, Temperature |
| 15 | WP3390631 Whirlpool Screw |
| 16 | WP3404233 Whirlpool Dryer Starter Switch |
| 17 | Wire, Jumper (Blue) |
| 18 | WP694419 Whirlpool Buzzer Adjuster |
| 19 | WP3976569 Whirlpool Timer |
| 20 | Panel, Control (Biscuit) |
| 20 | Panel, Control |
| 20 | Panel, Control (Almond) |
| 21 | 3389453 Whirlpool Hinge Assembly |
| 22 | End Cap-Right Hand (Almond) |
| 22 | End Cap (RH) |
| 22 | End Cap (RH) (Biscuit) |
| 23 | 3395683 Whirlpool Connector |
| 23 | Receptacle, |
| 23 | Harness - Dryer |
| 24 | 7111P002-60 Whirlpool Clamp |
| 25 | Clip, Harness (2) |
| 29 | End Cap (LH) (Biscuit) |
| 29 | End Cap (LH) (Almond) |
| 29 | End Cap (LH) |
